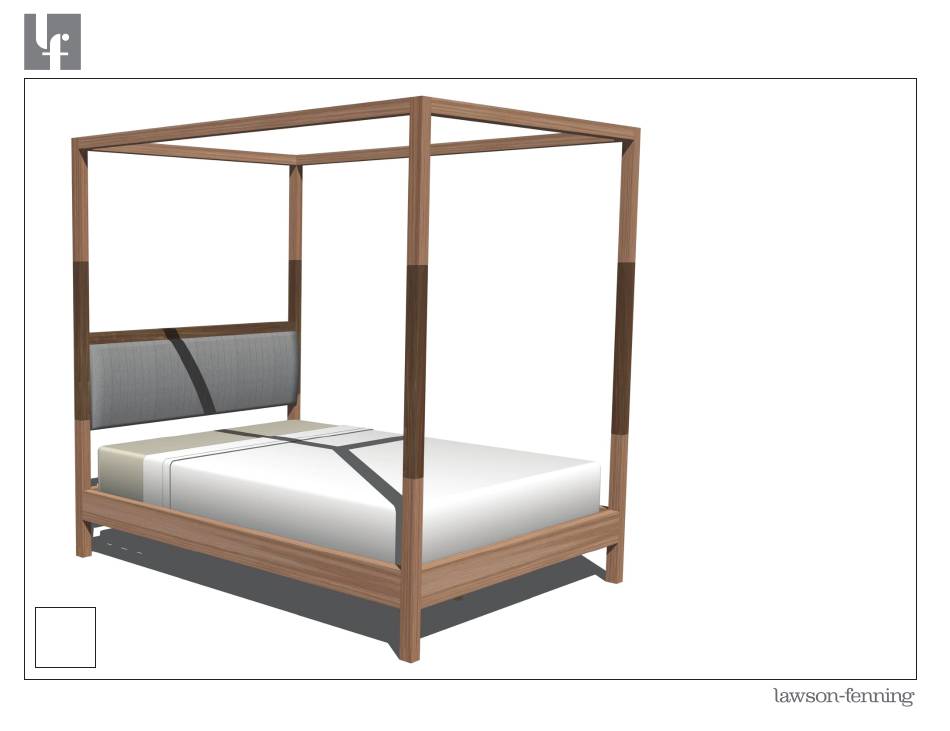

ASSEMBLY INSTRUCTIONS
Made
in
LA
+1 323 934 0048
www.lawsonfenning.com
info@lawsonfenning.com

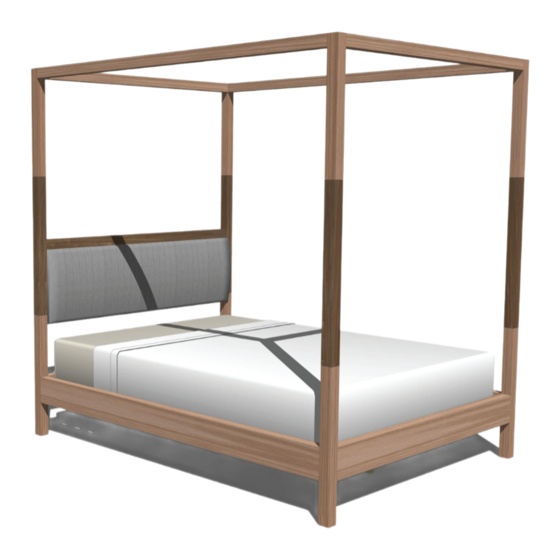

EDMUND BED
PARTS LIST
4
VERTICAL POST-
1
FOOTBOARD-
2
SIDE RAILS-
HEADBOARD-
1
SLAT KIT-
1
HEADBOARD STRETCHER-
1
CANOPY RAIL-
4
CANOPY BRACKET-
4
BRACKET SCREW-
16
Page 1 of 4
Advertisement
Related Manuals for Lawson-Fenning EDMUND BED
Summary of Contents for Lawson-Fenning EDMUND BED
- Page 1 ASSEMBLY INSTRUCTIONS EDMUND BED PARTS LIST VERTICAL POST- FOOTBOARD- SIDE RAILS- HEADBOARD- SLAT KIT- HEADBOARD STRETCHER- CANOPY RAIL- CANOPY BRACKET- BRACKET SCREW- Made Page 1 of 4 +1 323 934 0048 www.lawsonfenning.com info@lawsonfenning.com...
- Page 2 ASSEMBLY INSTRUCTIONS EDMUND BED STEP 1: • FIT FOOT RAIL TO VERTICLE POST • PRESS DOWN TO ASSURE A TIGHT FIT • NOTE: A NON-MARRING RUBBER MALLET MAY BE USED STEP 2: • FIT HEADBOARD BASE RAIL AND HEADBOARD UPHOLSTERED PANEL TO VERTICLE POST •...
- Page 3 ASSEMBLY INSTRUCTIONS EDMUND BED STEP 3: • FIT SIDE RAILS TO FOOT- BOARD AND HEADBOARD ASSEMBLY • PRESS DOWN TO ASSURE A Made TIGHT FIT • NOTE: A NON-MARRING RUBBER MALLET MAY BE USED Page 3 of 4 +1 323 934 0048 www.lawsonfenning.com...
- Page 4 ASSEMBLY INSTRUCTIONS EDMUND BED STEP 4: • INSTALL CANOPY RAILS • AFFIX CANOPY RAILS USING PROVIDED BRACK- ETS AND SCREWS • NOTE: A NON-MARRING RUBBER MALLET MAY BE USED STEP 5: Made • FIRST DROP PLATFORM WITH VERTICAL SUPPORT •...
