Summary of Contents for DigitalHome DB500

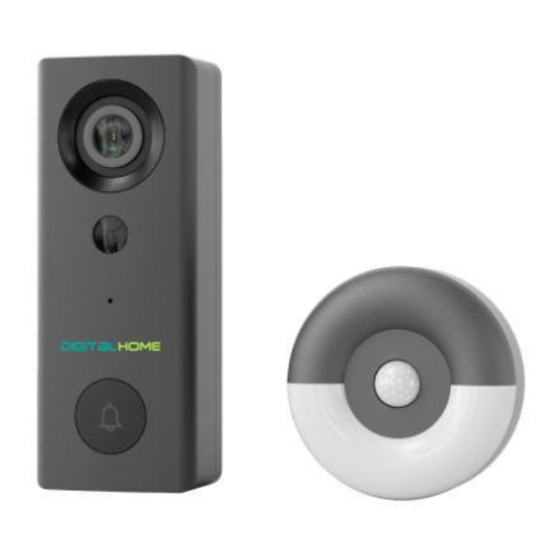

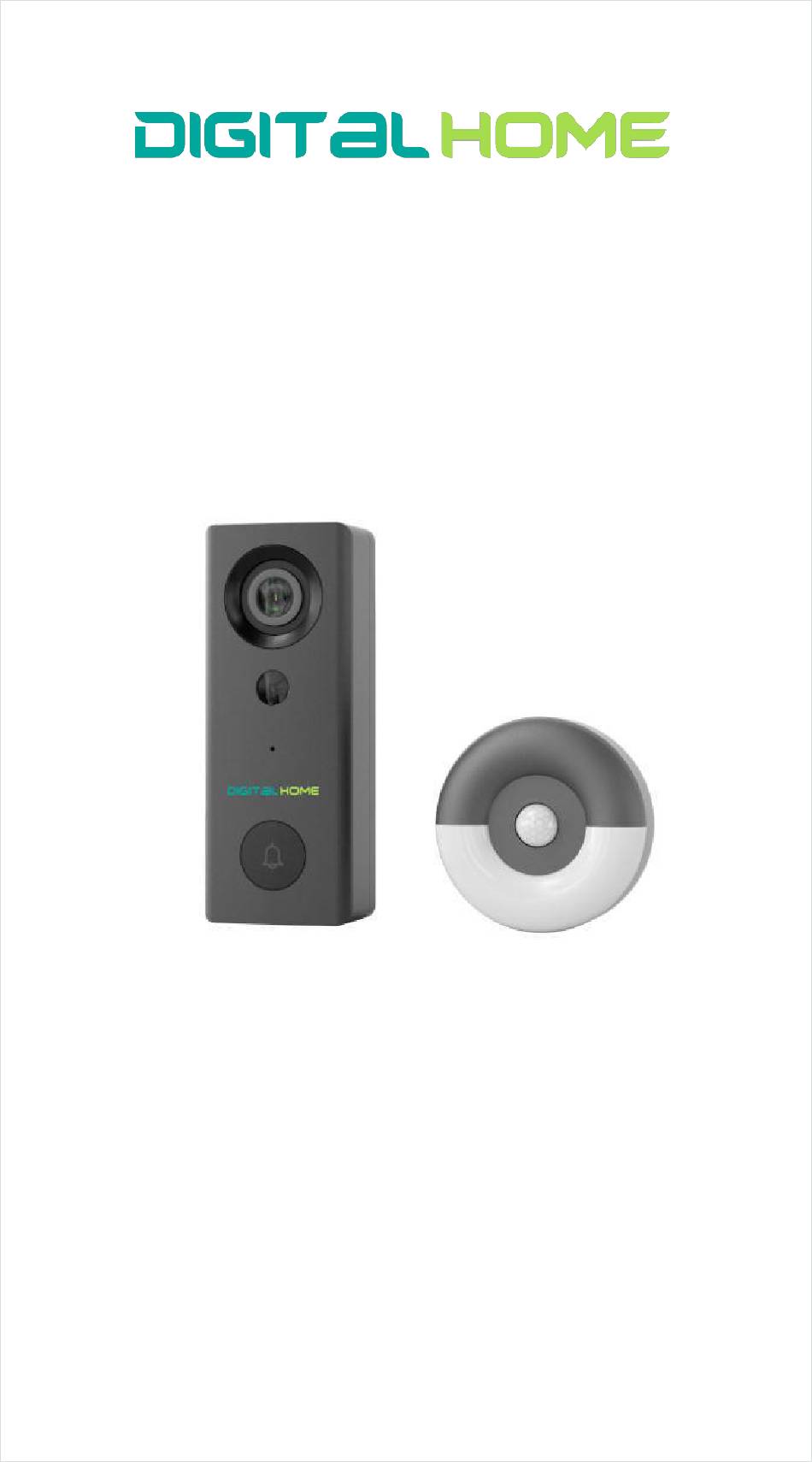

- Page 1 DB500 WATERPROOF WIRED VIDEO DOORBELL (WORKS WITH ALEXA AND GOOGLE ASSISTANT)
-
Page 2: Table Of Contents
CONTENT DIRECTORY 1. Product description......1-2 2. Install ..........3-4 3. Download App and pair the chime .... 5-6 4. Connect .......... 6-8 5. Setting..........9 6. Share device ........9 7. Remove device ......... 10 8. The cloud ......... 10 9. -
Page 3: Product Description
1. Product Description WF006 front view WF006A front view Camera Camera IR LAMP IR LAMP Indicator Light Indicator Light Push Button Push Button Backplane External power port (Power input AC 12-24V/1A) Reset Press 5 seconds to reset Micro SD card slot Micro USB Speaker Anti-theft Hole... - Page 4 Sensor type 1/3" CMOS Pixel 2.0Mega Min Color 0.01Lux@F1.2 Color 0.01Lux@F1.2 Min illuminance Black and White 0.001Lux@F1.2 View angle 130° 1/25~1/100,000 per second Shutter High power LED with ICR Digital WDR Video compression H.264 standard Compress the 32Kbps~2Mbps output bit rate Max picture size 1920 X 1080 1~25 per second...
-
Page 5: Install
2. Install Doorbell General Installation How to Install Security Video Doorbell 2K(Wired) Scan this YouTube video to learn how to do it Check installation environment 1）Make sure your existing doorbell wires are working. 2）If you don't have existing doorbell wires, please contact a professional electrician to install. - Page 6 Set up the video doorbell and chime Switch on Turn on the power of your house. When the doorbell ring pulses red, you may follow the in-App instruction to setup the video doorbell. 1. Screw the O terminal of the two leads to the products WALL Backplane Screw...
-
Page 7: Download App And Pair The Chime
3. Download App and pair the chime Download Globe Suite is available for both iOS and Android. Search the name 'Globe Suite' in App Store or Google Play, or scan the QR-Code to download the App. Support ipad Android Dowoload App(IOS&android) Dowoload App(IOS&android) Set up router This device only supports 2.4GHz frequency band router,... -
Page 8: Connect
Volume Music Pair Button PIR Sensor Led Light Video doorbell is turned on before pairing the chime: （Products already have been paired in Factory. If you need to replace the video doorbell, increase or decrease the doorbell quantity, please follow steps below: ） 1. - Page 9 Click "Add Device" or "+”, ready to add camera. Continue to click "Security & Sensor" >> "Smart Camera". Sensor In "Add Device" this interface, continue to click "next step”, and then you should input your WiFi's passwords. Power the device on and make sure the indicator is flashing quickly or a prompt tone is heard Resetting Devices >...
- Page 10 In this interface, you should scan the QR Code in your phone with the camera, when the camera comes out "dong dong dong". And you can complete the configuration about 30s. Tap Next. The mobile phone display a QR Code. Use the camera to scan to the QR Code 15 cm to 20 cm away from the mobile phone.
-
Page 11: Setting
5. Setting In "Bell 5S" interface, click " ", you can set the camera common functions. Settings Bell 5S Signal:84% Device Name Bell 5S Share Device Device Information Device Echo Bell Settings Mechanical Basic Function Settings Motion Detection Medium Bell Settings FAQ &... -
Page 12: Remove Device
7. Remove Device In "Bell 5S" interface, click " ", and then click " Remove Device" to remove it. If you no more need to share the device, you can touch the Shared account, swipe left, click delete, and no more share the device Device Sharing Device Sharing... -
Page 13: Functions
9. Functions Full-duplex audio When the visitor pushes the doorbell button, you will get a call. You can see and hear the visitor in your App if you answer. Motion detection Motion sensors will notify you when movement is detected. Shared device The doorbell device can be shared with friends, and friends can also preview online. - Page 14 When does the product need to be reset? How to reset it? It needs to be reset when the product can't connect to the phone. There is a description on the first page of the manual, and the key step is to connect when you see the red light start flashing.
