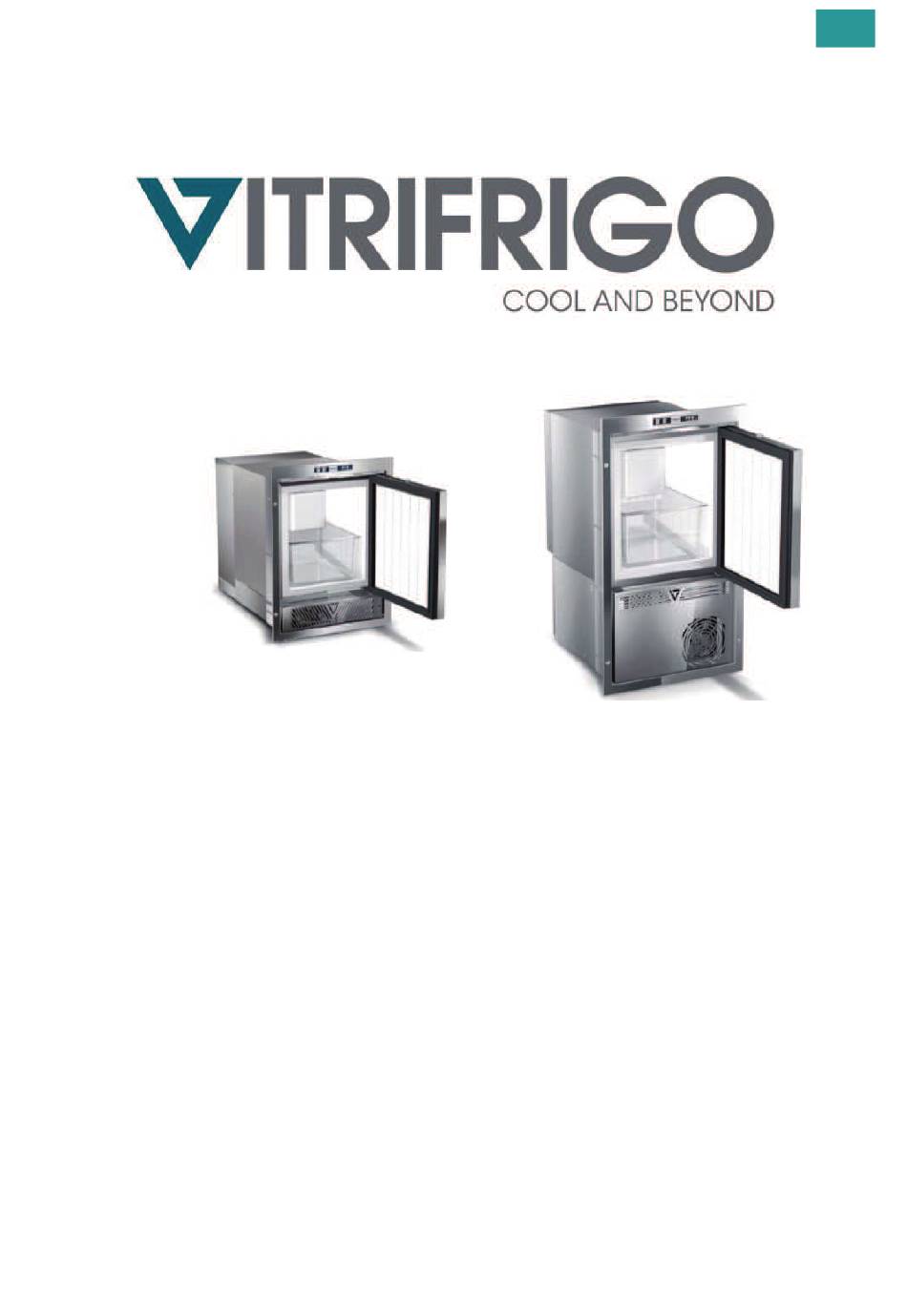

- Page 1 ICE MAKER IM CL – IM XT – IM XR Ice-makers INSTALLATION, USE AND SERVICE MANUAL Read carefully before using the product...
- Page 3 INSTALLATION, USE AND SERVICE MANUAL Ice-maker Read carefully before using the product INDEX INTRODUCTION WARNINGS PURPOSE OF THE MANUAL DESCRIPTION OF THE APPLIANCE INSTALLATION ELECTRICAL CONNECTION START 7.1. “REFILL” MODEL START-UP 7.2. “HYDRO” MODEL START-UP USING THE ICE MAKER 8.1. ICE PRODUCTION MODE 8.2.
- Page 4 Dear client: Thank you for choosing one of our products. Vitrifrigo hopes that you will be completely satisfied with your purchase. This manual is considered an integral part of the refrigerator and must follow the sales path to the user.
- Page 5 Destination of the product: This appliance is designed for use in applications on pleasure boats. · If this appliance replaces an old one, it is advisable to make any lock · useless before scrapping it. This appliance may only be used with recessed installation. ·...
- Page 6 Do not attempt to disassemble, modify or repair the appliance. · For any operational problems contact the Vitrifrigo Service Centre closest · to you; in any case, request the assistance of a suitably qualified person. Do not store explosive substances in this appliance such as aerosol cans ·...
-
Page 7: Purpose Of The Manual
Any modifications will appear, depending on the need, in future versions of the manual. Identification of the manufacturer The ice maker is designed and produced exclusively at: Vitrifrigo s.r.l. Via Mazzini 75 - fraz. Montecchio 61022 VALLEFOGLIA (PU) – Italy Tel. +39 0721 154500 Fax. -
Page 8: Installation
DESCRIPTION OF THE APPLIANCE (see fig. 1,1a,1b,) A) ice cube tray B) ice level detector C) ice collector tray D) control panel E) front mask/hatch F) solenoid valve G) condenser H) refrigeration system I) vent-position bracket J) electronic board K) power connector L) tank (refill only) M) pump (refill only) N) level sensor (refill only) - Page 9 The front of the front cover must remain completely free. For recess situations with surfaces in contact with the upper and lower · parts of the appliance, make the ventilation openings at the top and bottom of the appliance as indicated in fig.1b. Figure 1a - Rear opening position and ventilation direction Figure 1b The minimum distances between the various parts of the appliance and the recess...
- Page 10 structure must not be less than 75mm. (fig. 1a). In all the situations of the described ventilation openings, only the minimum distance of 75mm from the sides of the appliance may not be observed. The ventilation openings to be provided for the IM-XT version are: ·...
- Page 11 Appliance recess, with ventilated remote motor The size of the front opening to be prepared for the recess for the appliance must respect the dimensions of the refrigerator (see annex 1). The recess must respect the minimum distances between the remote motor and the surrounding structure and have suitable ventilation apertures communicating directly with the free area of the premises, in order to obtain the correct circulation of the air via forced ventilation, as indicated in fig 1d...
- Page 12 Profile adjustment for Total/Partial recess To position the profile in total or partial recess, partially loosen the screws of the profile, sliding it flush with the door or the casing and tighten the screws in the pre- holes already present in the casing (fig.2). Figure 2- Installation and positioning of the recessed profile Fixing the appliance.
-
Page 13: Electrical Connection
ELECTRICAL CONNECTION The operator must be able to disconnect the appliance from the mains electricity. Therefore, make sure that there is an access point to the power supply network near the appliance and/or that the system is equipped with an omnipolar differential magnetothermic switch, 6A type AC sensitivity 30 mA, with minimum 3mm contact opening. -
Page 14: Using The Ice Maker
7.2.“HYDRO” MODEL START-UP Connect the flexible hose provided on the solenoid valve (F) through the appropriate threaded union, to the water supply. The appliance is intended for operation with water pressure of between 1 and 3 bar. Make sure that the water network supplies drinking water and that the pressure is such as to obtain correct ice production for each discharge cycle (on 100g for 12 cubes, optimal pressure 2 bar). -
Page 15: Cleaning The Ice Maker
To restore ice making, simply empty the tray, (even partially). Attention, the ice level detector sensor B must be positioned downwards. If maintaining mode is entered due to depletion of the water in the tank, the red light D3 will be on, fill the tank to resume ice production. *the production times may vary from the temperatures of the external environment and of the incoming water. - Page 16 11.1 THE APPLIANCE DOES NOT WORK Check that: − it is energised. − the "STAND-BY" switch D1 is active and the LED is on. − the automatic circuit breaker of the electrical system is not disconnected. − the plug is efficient and correctly inserted into the socket and the power outlet works.
- Page 17 ICE MAKER XR Fig. 4 ICE MAKER XT...
- Page 18 Fig. 4a ICE MAKER CL Fig. 4b...
- Page 19 Fig. 4c Fig. 4d D3 D4 D5 Fig. 5 Fig. 5a...
- Page 20 Annex 1 – Models and recess measurements: Model A1(mm) B1(mm) C1(mm)* IM-CL IM-XT IM-XR** recessed depth with door inside the fixing profile (see fig.2) Model A(mm) B(mm) C(mm) IM-CL IM-XT IM-XR** remote motor sizes (mm): 170(A)x192(B)x366(C)
- Page 21 DECLARATION OF CONFORMITY Vitrifrigo srl, with Registered Office in via Mazzini 75, 61022 locality Montecchio, VALLEFOGLIA, Italy declares under its own responsibility that the product: is compliant with the Low Voltage Directive (LVD) 2014/35 EC is compliant with the Electromagnetic Compatibility Directive (EMC) 2014/30 EC...
