- Page 1 RUBBER BANDS 500 USER'S MANUAL IGS Audio Igor Sobczyk 3 Maja 76d, 41-400 Mysłowice, Poland e-mail: igs@o2.pl ph: +48 601 597 592 www.igsaudio.com...
- Page 2 The information in this document is subject to change without notice. IGS Audio makes no warranty of any kind with respect to the material in this document and shall not be liable for errors contained herein or for incidental or consequential damages related to the use of the material.
- Page 3 (packed in ESD bag) and this manual with the Warranty and RoHS/CE/WEEE Declaration attached. Compatibility and Power The RUBBER BANDS 500 module is designed to be installed into an API™ 500 Series compatible rack and cannot function stand alone, requiring the power source supplied by the rack system.

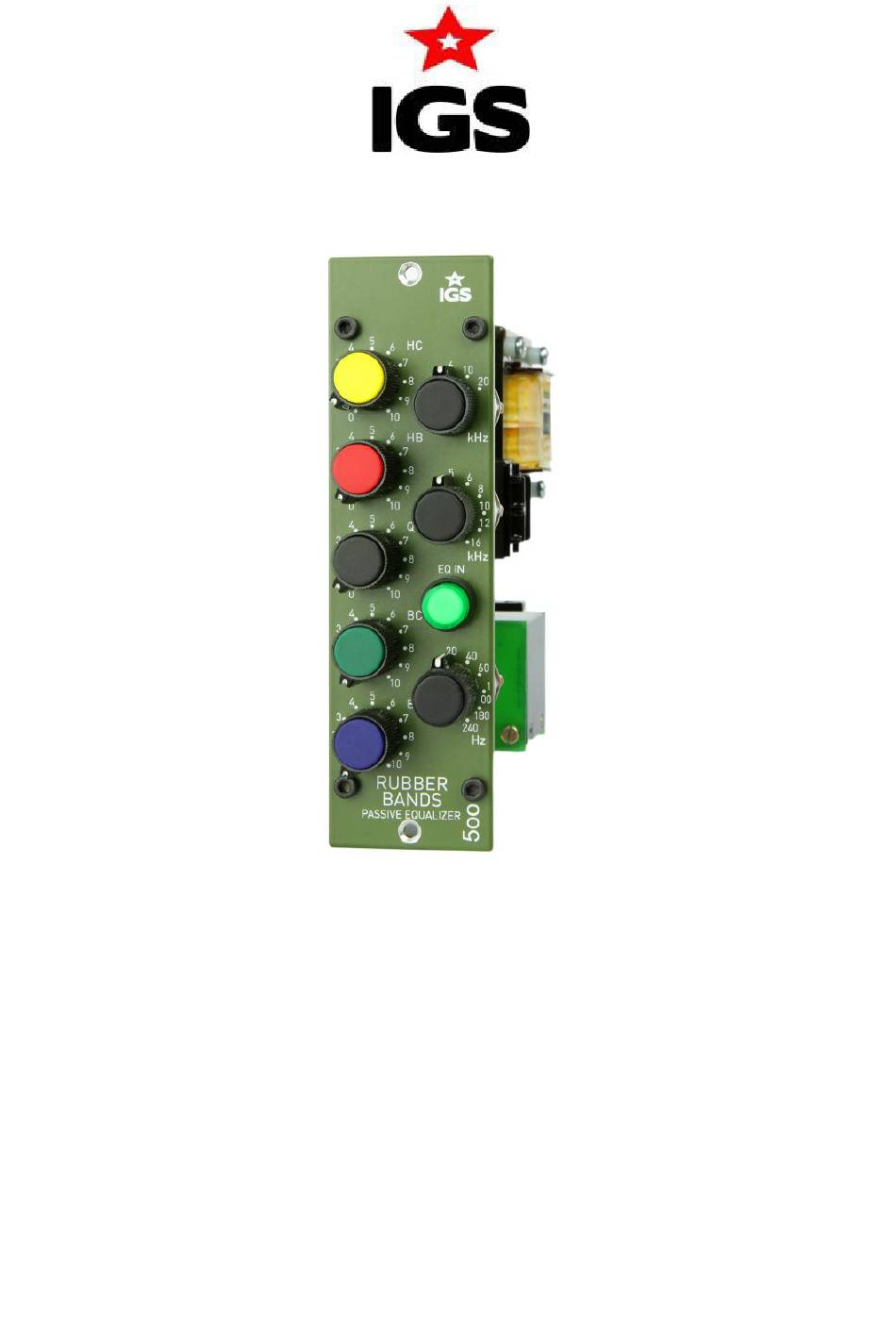

- Page 4 IGS AUDIO RUBBER BANDS 500 – mono passive equalizer Rubber Bands 500 is a passive equalizer absurdly reduced in size. This tiny module is equipped with transformer balancing on inputs and outputs (Carnhill) as well as a discrete driver circuit.
- Page 5 HIGH CUT HIGH CUT FREQ HIGH BOOST FREQ HIGH BOOST EQ IN Q FACTOR BASS FREQ BASS CUT BASS BOOST HIGH CUT Amount of attenuation of high frequencies HIGH BOOST Amount of boost of high frequencies BASS CUT Amount of attenuation of low frequencies BASS BOOST Amount of boost of low frequencies Q FACTOR Slope of the high boost filter HIGH CUT FREQ Frequency of high cut filter...
- Page 7 RB500 main functions and technical specification: ✔ 500-series mono module ✔ All stepped manipulators ✔ Precise LED bar scale ✔ Carnhill input and output transformer ✔ 3 year warranty Operating Level +4dBu Maximum Input +20 dBu Maximum Output +22 dBu Input impedance 1 kOhm Output Impedance...
- Page 8 Warranty: This device is declared to be free from defects in material and workmanship for a period of three years. Any device found defective within three years from the delivery date and returned to the factory, will be repaired, adjusted, or replaced and sent to the customer with no charge.
