USER'S MANUAL
MONKEY LOOP
Mega Power 8
Mega Power 8
MONKEY LOOP
Introducing the Mega Power 8 Transparent Multi DC Power Supply. The
Mega Power 8 will give you a visual sense of beauty and clear indication of
power.
It has 8 separate outputs for powering a variety of different effects including
drum machine, multi effects including drum machine, multi effect pedals
and digital delay.
The 2 adjustable Output Jack Sockets (A and B) gives you the ability and
versatility to select different output voltage:
- Output A is adjustable between 9V/12V/18V.
- Output A is adjustable between 9V/12V/15V.
The circuit has anti-ground noise and anti-interference treatment to give
you a 100% clear sound from your effects units.
Each isolated output has short circuit protection which is clearly indicated
by the LED lights of the front of the unit.
Output A adjustable 9V/12V/18V DC @500mA
Output B adjustable 9V/12V/15V DC @500mA
6 outputs 9V DC @300mA
Input: 18V 1A
Mega Power 8
MONKEY LOOP

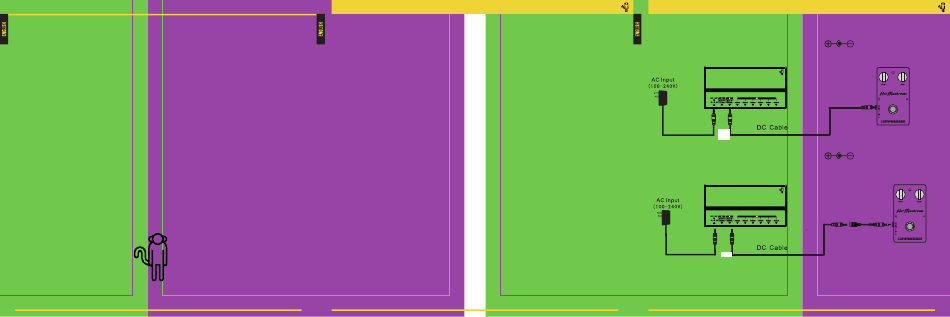

CONNECTION METHOD
1. If the input polarity of the electrical device is
DC Power Cable to the device directly, as show.
MONKEY LOOP
Mega Power 8
1. If the input polarity of the electrical device is
DC Power Cable to the device directly, as show.
MONKEY LOOP
Mega Power 8
Attention:
Incorrect polarity would damage this unit, please make sure correct positive
and negative polar before wiring.
, please connect the
, please connect the
