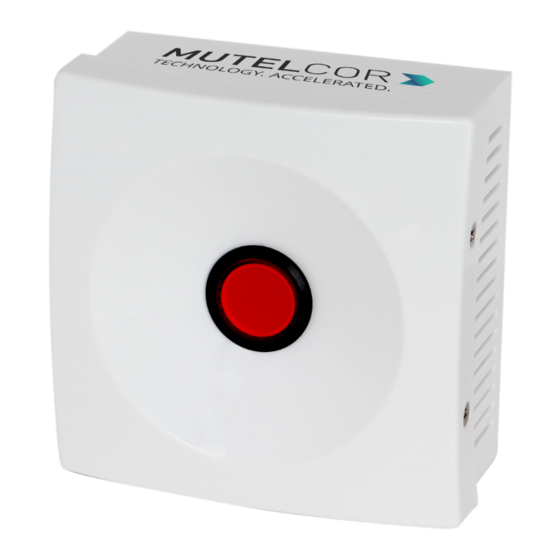

- Page 1 LoRa Air Quality Button MTC-XX-AQ01 / MTC-XX-AQ02 / MTC-XX-AQ03 / MTC-XX-AQ04 Quick Start Guide Thank you for choosing Mutelcor GmbH. We are proud to be part of your project.
-
Page 2: Need Help
1. Need Help? For any other query related to our product, please contact the local distributor or Mutelcor at support@mutelcor.com. 2. Manufacturer Mutelcor GmbH: An der Bastei 42a, 47259 Duisburg, Germany Office: +49 203 72996070, Fax: +49 203 72996071, Web: www.mutelcor.com 3. Safety Read the instructions carefully before device installation, operation and maintenance. -
Page 3: Product Description
4. Product Description At a Glance Description Description Push Button Voltage Ingress Protection Holes for Wall Mount DevEUI with QR code Model Name Device info Access Sticker (optional) Module ID 5. Opening and Closing the Device ©Mutelcor GmbH. All rights reserved... - Page 4 After performing the tasks, gently and carefully attach the PCB back to the button slots Gently close the top and bottom of the enclosure together and tighten all the four screws 6. Insertion and Replacement of Batteries ©Mutelcor GmbH. All rights reserved...
- Page 5 5, 6 and 7 of section 6 “Insertion and Replacement of Batteries” Fig.6.1 The replacement of the batteries will trigger the device to register to the LoRaWAN network. Upon successful registration the device will trigger 3 short beeps (chirps) in rapid succession. This implies ©Mutelcor GmbH. All rights reserved...
-
Page 6: Activating The Device
LoRa network successfully and will send heartbeats and alarms via LoRa. Note: If rejoining of the device fails, one can manually reset the device as described in section 9 “Resetting of Device” 7. Activating the Device ©Mutelcor GmbH. All rights reserved... - Page 7 QR code sticker: All devices are QR-Ready. If requested, we can activate this feature to allow reading the current battery status by simply scanning a QR code. Please contact us for activation of this service. Please contact the local distributor or Mutelcor GmbH at support@mutelcor.com...
- Page 8 The device may be mounted on the wall using two oblong holes Only two screws (not included) are needed, all mounting information is depicted (Reference dimension: mm ) Recommended screw size : M3.5 x 20 Fig 8.1 ©Mutelcor GmbH. All rights reserved...
-
Page 9: Resetting The Device
The reset will trigger the device to re-register to a LoRaWAN network. Upon successful registration, the device will trigger 3 short beeps (chirps) in rapid succession. This implies that the device is activated in a LoRa network and will send heartbeats and alarms via LoRa. Fig 9.1 ©Mutelcor GmbH. All rights reserved... -
Page 10: Technical Specifications
3.2 effective use of the spectrum of 2014/53/EU The CE mark appears due to the issued declaration of conformity under responsibility of Mutelcor GmbH as manufacturer, who declares that the used radio equipment is in compliance with relevant EC Directives. -
Page 11: Warranty
The forgoing is buyer's sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Mutelcor GmbH be liable for any consequential, special or incidental damages. - Page 12 15. Find us on social media We would like to hear from you: any tips, any news to share? www.facebook.com/mutelcor Mutelcor GmbH We stay at your disposal for any help on your project requirements Mutelcor GmbH Team ©Mutelcor GmbH. All rights reserved...
