Summary of Contents for Zenitel RCS01

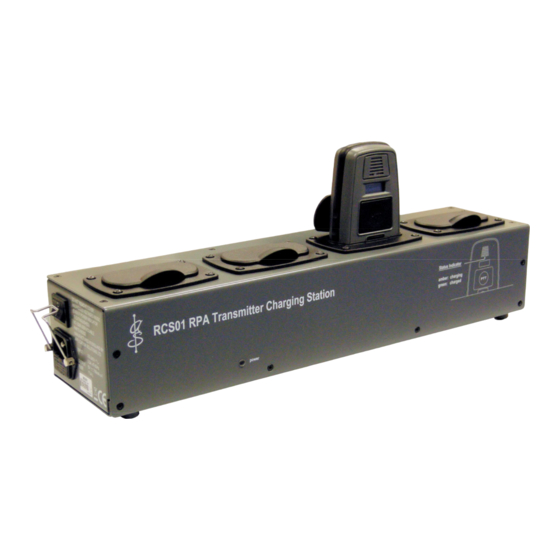

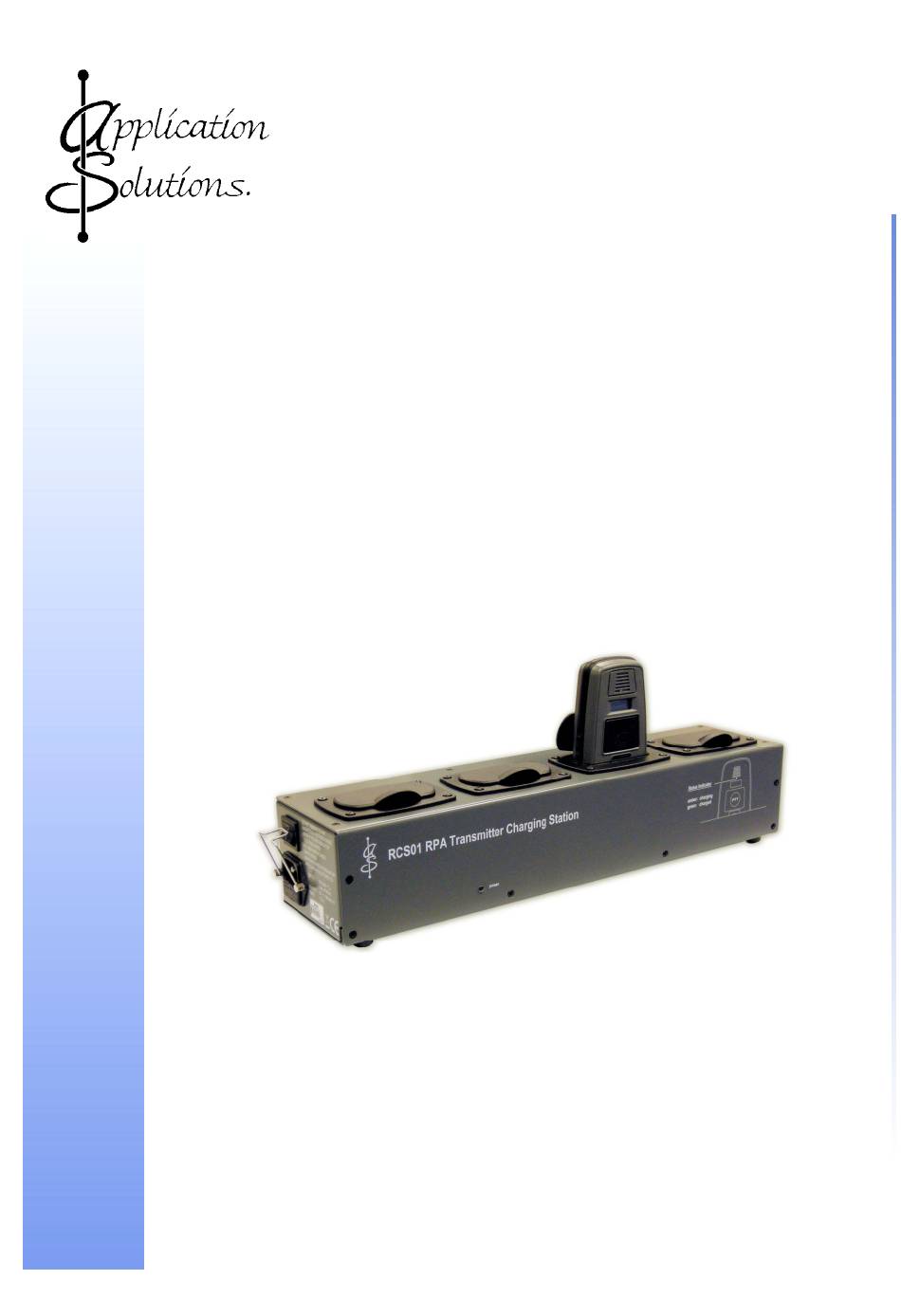

- Page 1 Product Manual RCS01 RPA Transmitter Charging Station Desktop version. RPA Transmitter for illustrative purposes only. ASL Document Ref.: U-0618-0103.doc Issue: 03 complete, approved - Date: 28/05/08 Part Number: M0618_23...
- Page 2 RCS01 Product Manual This equipment is designed and manufactured to conform to the following EC standards: EN50121-4:2006, ENV50204:1996 Safety EN60950:2000 Failure to use the equipment in the manner described in the product literature will invalidate the warranty. A ‘Declaration of Conformity’ statement to the above standards, and a list of auxiliary equipment used for compliance verification, is available on request.
-
Page 3: Table Of Contents
RCS01 Product Manual Contents Description ............................... 5 Operation ..............................6 Installation ..............................7 Desktop Installation ........................7 Desk Mount Installation ......................9 Wall Mount Installation ......................12 Maintenance ............................15 Replacing the Mains Power Supply Fuse................. 15 Spare Parts..........................16 Product Specification .......................... - Page 4 RCS01 Product Manual This page intentionally left blank. Issue: 03 complete, approved Page 4 of 24...
-
Page 5: Description
RCS01 - Product Manual Description The RCS01 RPA Transmitter Charging Station is designed to recharge up to four of the RPA01 transmitters simultaneously. From a flat battery it typically takes two hours to recharge the lithium polymer batteries which are built into the RPA01 transmitters. -
Page 6: Operation
RCS01 - Product Manual Operation • INSERT THE TRANSMITTER FACING FORWARDS. • DO NOT FORCE THE TRANSMITTER DOWN. The LED on the RPA Transmitter indicates the charging progress: AMBER: Battery is charging. GREEN: Battery is charged. POWER SWITCH Desktop Charging Station shown with 3 empty bays. -
Page 7: Installation
RCS01 - Product Manual Installation Please read and observe the “Safety and Precautions” section on page of this manual. Desktop Installation Required Tools • 4 x rubber feet (supplied). • 1 x IEC connector for the power supply cable (supplied). - Page 8 RCS01 - Product Manual Installing the Power Supply Cable 1. Terminate the power supply cable with the IEC connector provided. Normal standard mains cabling to fit Remove the cover by undoing the fixing screw. the supplied IEC connector. Remove the rubber grommet, and pass the mains cable though it, observing the correct orientation of the cable.
-
Page 9: Desk Mount Installation
RCS01 - Product Manual Desk Mount Installation Required Tools • 2 x desk mounting brackets (supplied). • 4 x M4 pozidriv countersunk screws for fixing the brackets to the unit (supplied). Use only the M4 screws provided. Alternative screws must not exceed 8 mm. - Page 10 RCS01 - Product Manual Installing the Unit on the Desk 1. Mark the surface on which the Charging Station will be fitted. The unit has four fixing holes on 60 mm x 450 mm centres. See Figure 2 for further details.
- Page 11 RCS01 - Product Manual Installing the Power Supply Cable 1. Terminate the power supply cable with the IEC connector provided. Normal standard mains cabling to fit Remove the cover by undoing the fixing screw. the supplied IEC connector. Remove the rubber grommet, and pass the mains cable though it, observing the correct orientation of the cable.
-
Page 12: Wall Mount Installation
RCS01 - Product Manual Wall Mount Installation Required Tools • 2 x desk mounting brackets (supplied). • 4 x M4 pozidriv countersunk screws for fixing the brackets to the unit (supplied). Use only the M4 screws provided. Alternative screws must not exceed 8 mm. - Page 13 RCS01 - Product Manual Installing the Unit on the Wall 1. Mark the surface on which the Charging Station will be fitted. The unit has four fixing holes on 60 mm x 450 mm centres. See Figure 3 for further details.
- Page 14 RCS01 - Product Manual Installing the Power Supply Cable 1. Terminate the power supply cable with the IEC connector provided. Normal standard mains cabling to fit Remove the cover by undoing the fixing screw. the supplied IEC connector. Remove the rubber grommet, and pass the mains cable though it, observing the correct orientation of the cable.
-
Page 15: Maintenance
RCS01 - Product Manual Maintenance There are no routine maintenance tasks for the Charging Station, except for mains supply fuse replacement when required, and occasional removal of any dust or debris, which may have fallen into the charging bay. Replacing the Mains Power Supply Fuse Please read and observe the “Safety and... -
Page 16: Spare Parts
IEC Female Connector for Power Supply Cable Manufacturer/Supplier: Bulgin Manufacturer/Supplier Part No.: PX0587 Manufacturer/Supplier Description: Straight female connector, rewirable. K0618003 RCS01 Charging Station Fixing Kit Manufacturer/Supplier: Application Solutions (Safety and Security) Ltd. Manufacturer/Supplier Part No.: K0618003 Manufacturer/Supplier Description: 4 rubber feet, 2 wall-mount bracket and screws, IEC Female Connector for Power Supply Cable This connector type must be used in order for the retaining clip to work properly. -
Page 17: Product Specification
RCS01 - Product Manual Product Specification General Power Supply ....................100 V – 240 V AC, 47 Hz – 63 Hz Current..............................0.5 A Fuse Rating ..........................T 1A L 250 V Capacity....................up to 4 RPA01 Radio Microphones Flat Battery Recharging Time....................2 hours (typical) Connector ............................ -
Page 18: Mechanical Dimension
RCS01 - Product Manual Mechanical Dimension Figure 1 Desktop Charging Station Issue: 03 complete, approved Page 18 of 24... - Page 19 RCS01 - Product Manual Figure 2 Desk Mount Charging Station Issue: 03 complete, approved Page 19 of 24...
- Page 20 RCS01 - Product Manual Figure 3 Wall Mount Charging Station Issue: 03 complete, approved Page 20 of 24...
-
Page 21: Safety And Precautions
RCS01 - Product Manual Safety and Unpacking and Handling Precautions equipment should unpacked inspected immediately on receipt. If damage has occurred please advise your carrier or supplier. Environmental It is advisable to retain the original equipment packing in the event that the equipment ever Always ensure adequate ventilation is provided for needs returning for service. -
Page 22: Reference Documents
RCS01 - Product Manual Reference Documents Additional reference information may be found in the following documentation, available from the “Data Downloads” page of Application Solutions (Safety and Security) Ltd. website: www.asl-control.co.uk Table 1 Reference Documents Ref. No Title Filename Ref... -
Page 23: Service And Warranty
RCS01 - Product Manual Service and Warranty Name and Address of Authorised Distributor: This product carries a full warranty. For full details of warranty and service agreements, please contact the Authorised Distributor who supplied the product to you. Exclusions The warranty does NOT cover: Customer misuse, including incorrect installation. - Page 24 Application Solutions (Safety and Security) Ltd. www.asl-control.co.uk...
