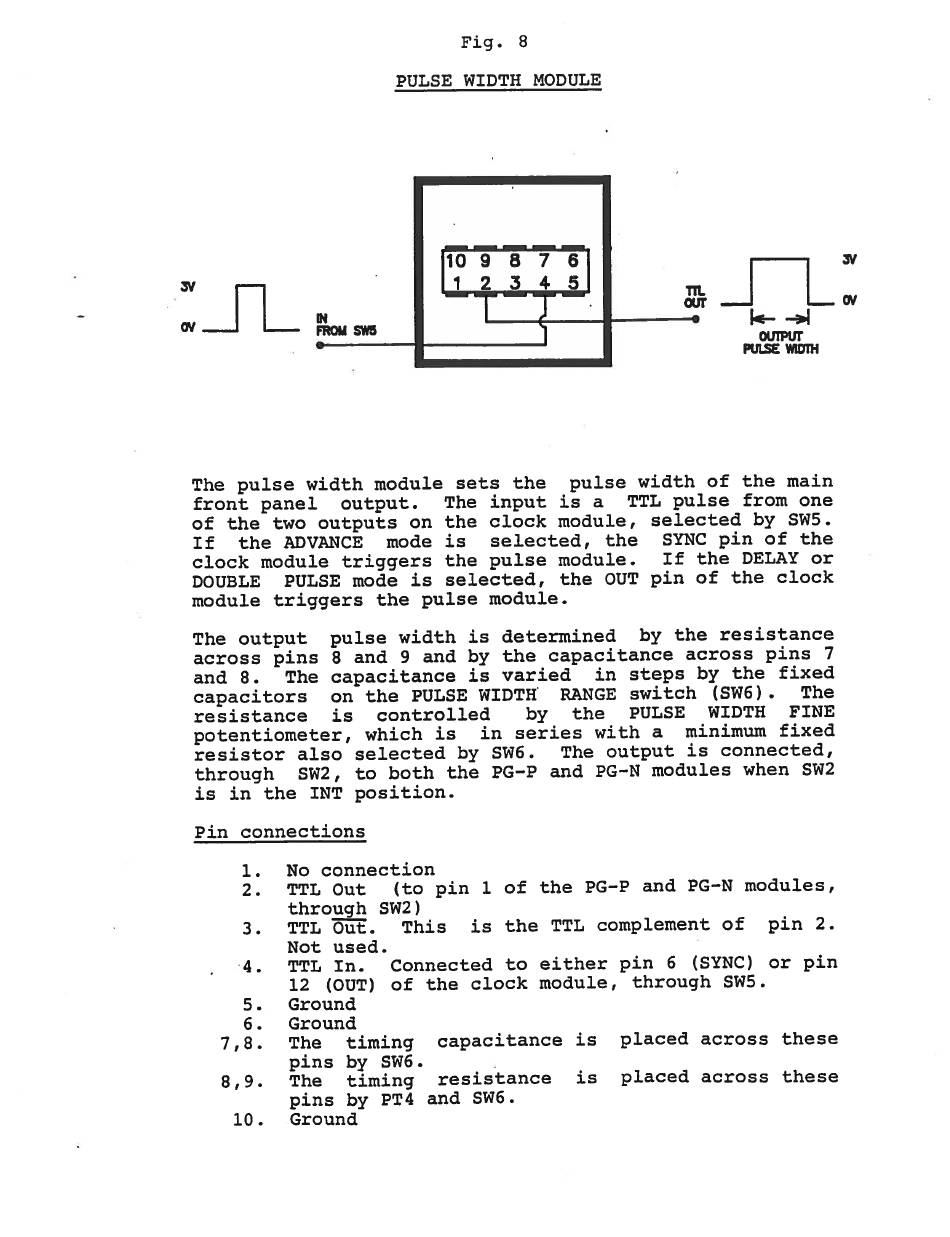

Pig.
8
PULSE
WIDTH
MODULE
Pin
connections
1.
No
connection
2.
TTL
Out
(to
pin
1 of
the
PG-P
and
PG-N
modules,
through
SW2)
3.
TTL Out.
This
is
the
TTL
complement
of
pin
2.
Not
used.
4.
TTL
In.
Connected
to
either
pin
6
(SYNC)
or
pin
12
(OUT)
of
the
clock
module,
through
SW5.
5.
Ground
6.
Ground
7,8.
The
timing
capacitance
is
placed
across
these
pins
by
SW6.
8,9.
The
timing
resistance
is
placed
across
these
pins
by
PT4
and
SW6.
10.
Ground
