Elmeasure India Private Limited
Head office & Manufacturing Unit 1
Plot N0.: 47-P, KIADB Hardware Park,
Huvinayakanahalli, Bengaluru - 562 149,
Karnataka INDIA.
Manufacturing Unit 2
Goutham Garden, No.4, Veerapandi,
Coimbatore - 641019 Tamil Nadu, INDIA
www.elmeasure.com
True RMS measurement.
User configurable (Editable) password.
Simultaneous sampling of Volts & Amps.
Optional RS485 & wifi.
Over current, Under and Over voltage protection is available for both
EB and DG.
Intelligent controller trips exactly on the programmed settings.
Programmable EB and DG phase selection (All phases/1Phase).
Programmable KWh and KVAh.
Fire fighting DG Start/stop.
Universal Auxiliary supply 12 to 24V.
DG start/stop potential free contacts.
Remote controlling through PLC/SCADA/EMS.
R
To decrement value and
scroll the parameter
to enter Setup mode Display shows 0000).
Enter Password (default is 1000).
Blinking digit indicates edi ng of that digit.
If Password is correct, edi ng is possible.
to view the setup parameter.
Press
Up to view the parameter op on /value.
Again press
Up key to select and edit parameter value /op on
to decrement values / change the available op ons.
to save the op on / value of the parameter.
to edit next parameter ll end of last parameter
and
display screen will prompt
Press
Down to change the op ons y(save) or n(not save).
Press
Up to save.
3.3 Display
Setup -1
Programming Parameter
Default
DEVICE ID
Password
Source Priority
Under Voltage S1
Over Voltage S1
Phase selection S1
Under Voltage S2
Over Voltage S2
Phase selection S2
Phase Sequence
Current limit S1
Current limit S2
Toll Free: 1800 120 5048
support@elmeasure.com
PG/ATeSL/CON100/V0/0823
AUTO
MANUAL
To select, edit & save the
value / parameter
with display reads
blinking.
Option/Range
Range :1 to 247
Range :1000 to 4999
Range :P.S.S1/P.S.S2/none
Range: 155-210V
Range: 230-285V
Range: 3ph/1ph
Range: 155-210V
Range: 230-285V
Range: 3ph/1ph
Range: Enable/Disble
Range: 0.5-40A
Range: 0.5-40A

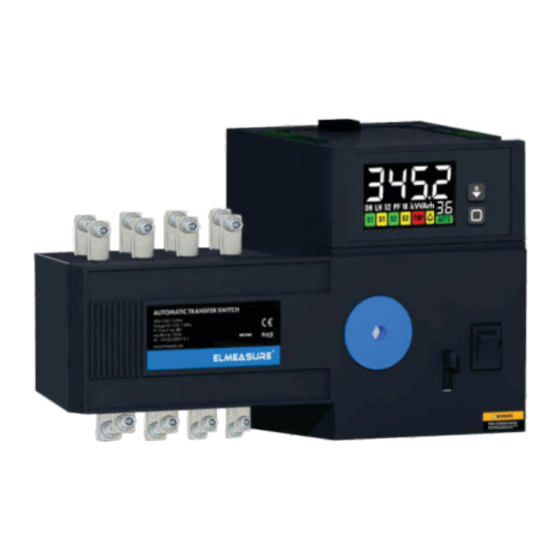

ATeSL CON100
www.elmeasure.com
Transfer delay time
Transfer delay time
DG Ideal time
UPS
UPS (DG Start)
Save
Setup -2
Analog Current
CT Primary
Over Frequency
Under Frequency
delay time
number of cycles
Cycle 1 set time
Cycle 2 set time
Cycle 3 set time
Cycle 4 set time
Unbalance Current
Unbalance Current
value
Unbalance Current
Unbalance Current
value
Centre of Delay
Centre of Delay time
Trip
Mode Selection
Password
Save
Current rating: CON100: 125A/160A/200A/250A/400A/630A/800A/1000A/1250A/1600A.
3.4 Enabling and Disabling Auto Scrolling
Press
Up/Down key con nuously for 5 secs or un l display
shows
Display starts to scroll parameters every 5 sec.
To disable Autoscrolling, Press any key, display shows
in a par cular page.
4. Display of Parameter:
Display
Meaning
Balance Page
EB Balance
DG Balance
Voltage line to line EB
Voltage line to Neutral
EB
Frequency EB
Voltage line to line EB
EB
Voltage line to Neutral
Frequency EB
Average Current EB
Wa s Total EB
VA R Total EB
Total VA EB
Displacement PF EB
True Power Factor EB
Average Current DG
Wa s Total DG
VA R Phase DG
Total VA DG
Power Factor DG
Power Factor DG
User Manual
SET
Range: 3s-600s
Range: 3s-600s
Range: 3s-600s
Range: Enable/Disble
Range: 0 to 180s
Yes/No
Range: Enable/Disble
Range: 0.5 to 99kA
0-4800 / 1-9600 / 2-19200 / 3-38400
0-Even /1- Odd /2- No
Range: 50 to 65Hz
Range: 45 to 50Hz
Range: 0 to 180s
Range:2 - 10Cycles
Range:5s - 150s
Range:5s - 150s
Range:5s - 150s
Range: 5s - 150s
Range: Enable/Disble
Range: 10 to 90%
Range: Enable/Disble
Range: 10 to 90%
Range: Enable/Disble
Range: 0 to 180s
Range: Enable/Disble
Range: Remote DI/Manual
Range:5000-9999
Yes/No
and remains
Display
Meaning
VLL BR DG
VLN R DG
VLN R DG
VLN B DG
Amps Rphase EB
Amps Yphase EB
Amps Bphase EB
Wa s R EB
Wa s Y EB
Wa s B EB
Var R EB
Var Y EB
Var B EB
VA R EB
VA Y EB
VA B EB
PF d1 EB
PF d2 EB
PF d3 EB
PF t1 EB
PF t1 EB
