Summary of Contents for Unitor 572085

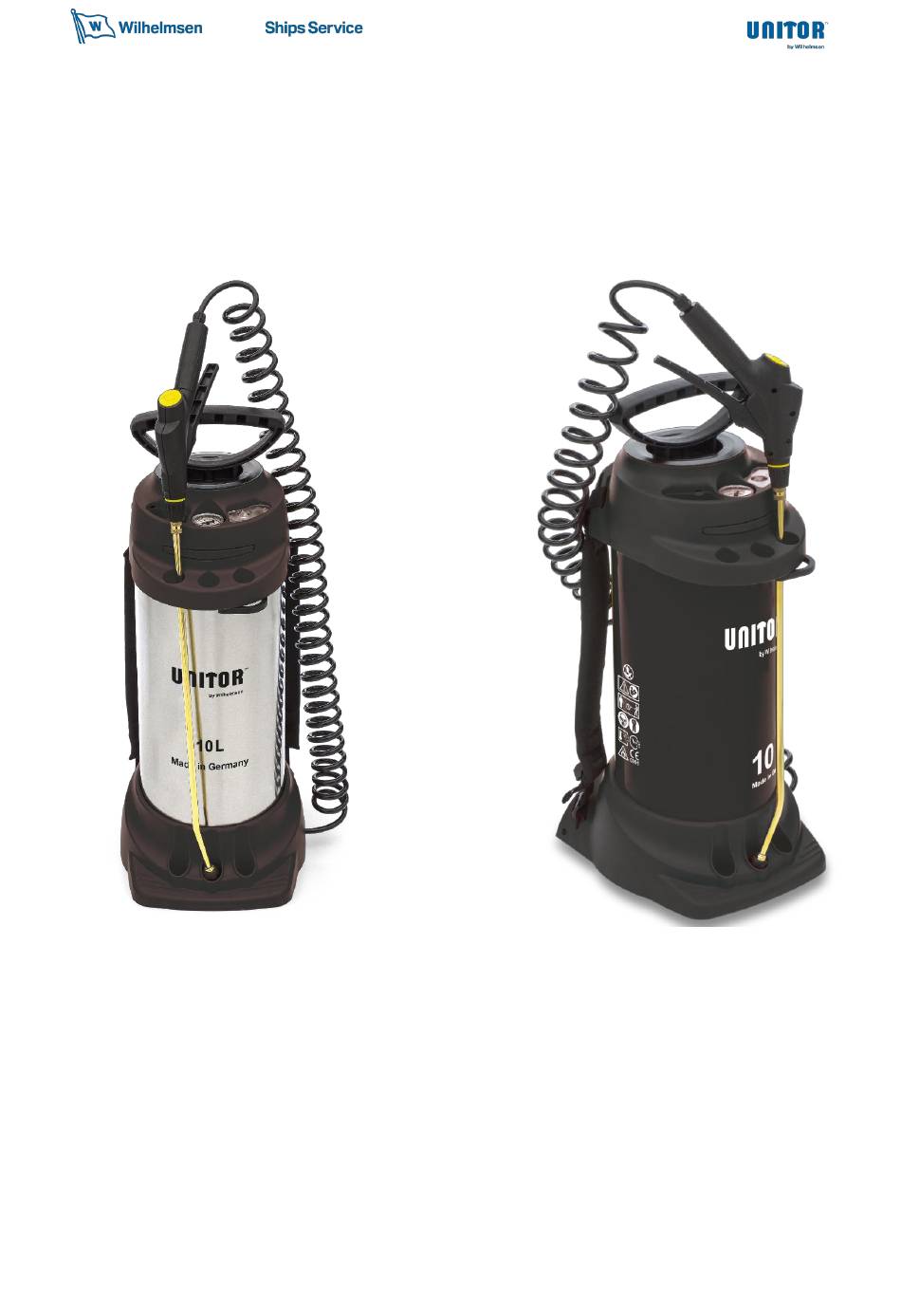

- Page 1 Technical Manual UNITOR™ JET SPRAY UNIT 6BAR, UNITOR™ JET SPRAY UNIT 6BAR, 10 LTR ST. STEEL, FPM 10 LTR STEEL, FPM Product no. 572020 Product no. 572085 Version V01.112023 Date updated: 9 November 2023 Technical Manual Version V01.112023 Article no. 6093073...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information General Safety Warning Safety Machine Description Explosion Drawing Parts and Components Spares Accessories Technical Specifications Technical Data Warranty Declaration of Conformity Installation Assembly Intended Use Applications Before Use Directions for use Care and Cleaning After each use Maintenance Disposal... -
Page 3: Important Safety Information
1. Important Safety Information 1.1 General Safety This equipment is intended for use with Wilhelmsen Cleaning Chemicals for cleaning on vessels only. This product is not suitable for: a) Plant protection products b) Combustible liquids c) Hydrogen peroxide and similar substances that give off oxygen d) Corrosive substances (certain disinfecting and impregnating agents, acids and bases) e) Liquids containing ammonia... -
Page 4: Safety
1.3 Safety Keep bystanders away during spraying. Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water Wear appropriate protective clothing, goggles and respiratory protection in line with the applicable national regulations when working with hazardous substances. -
Page 5: Machine Description
2. Machine Description 2.1 Explosion Drawing Figure 1 Technical Manual Version V01.112023 Article no. 6093073... -
Page 6: Parts And Components
2.2 Parts and Components (refer to Figure 1) Part No. Description Tank Pump Spare parts pouch Spray line Flat Jet nozzle Back straps Spray lance Pump holder Shut-off valve Outlet port Safety lock for hose Safety valve Pressure gauge Compressed air hose Compressed air filling valve 2.3 Spares What is included in the spare parts pouch:... -
Page 7: Technical Specifications
3. Technical Specifications 3.1 Technical Data Type 3585P 3615P Max. filling amount 10 litres 10 litres Total contents 13 litres 13 litres Max. spraying pressure 6 bar (88 psi) Max. operating temperature 50C (120F) Weight when empty 5.2 kg 4.7 kg Total weight max. -
Page 8: Installation
4. Installation 4.1 Assembly Fasten straps on the tank Screw the spray line tightly in the outlet port. Insert the lock. The lock closes and the spray line is secured from unscrewing out of the tank. Push the hose onto the shut-off valve and secure it with the cap nut. Screw the spray lance onto the shut-off valve 5. -
Page 9: Before Use
The Stainless-Steel version (product number 572085) is recommended for acid-based rust removers and solvent based cleaners. Please see the table below for recommended Unitor™ cleaning chemicals: UNITOR™ JET SPRAY UNIT 6BAR, 10 LTR ST. STEEL, FPM (572085) Recommended Chemicals Product Number... - Page 10 Press the pump handle down and turn it Unscrew the pump from the tank counterclockwise. Add the Wilhelmsen Chemical liquid. Do Screw the pump back into the tank not fill the tank above the Max line. Without compressed-air filling valve Generate the required pressure in the tank.
-
Page 11: Directions For Use
(Optional) With compressed-air filling valve Connect the compressed-air hose to the compressed-air filling valve (refer to Section 2.4 Accessories). Pressure is built up max. 6 bar (88 psi) Ensure that the initial pressure is not higher than 15 bar (218 psi). When the required pressure has built up, remove the compressed-air hose 5.3 Directions for use Operate the device only while it is vertical or suspended upright and nearly vertical. -
Page 12: Care And Cleaning
Make certain the optimum spraying pressure is set. Check the reading on the pressure gauge. If the spraying pressure decreases more than 0.5 bar 7.3 psi) from the optimum level, pump some more. If liquid mixed with air emerges from the nozzle, the tank is empty. 6. -
Page 13: Disposal
Grease the O-ring and the sleeve. Clean the spray nozzle under running water. Reassemble the pump. Unscrew the handgrip from the shut-off valve Remove the filter and clean it under Disassemble the shut-off valve. running water Loosen the four screws and pull the half shells apart. -
Page 14: Troubleshooting
7. Troubleshooting Use only original spare and accessory parts Fault Cause Remedy The pump is not screwed on Screw the pump on tightly tightly No pressure builds O-ring on the pump is faulty Replace the O-ring up in the device Diaphragm is defective Replace the diaphragm Liquid flows out of... -
Page 15: Declaration Of Conformity
The brand name UNITOR is a registered trademark fully owned by Wilhelmsen Ships Service According to EC Machinery Directive 2006/42/EC, Appendix II, No. 1A. we WILHELMSEN SHIPS SERVICE AS., declare that the products pressure spraying devices 3585 – with product number and Description :572020 UNITOR JET SPRAY UNIT 6BAR, 10 LTR STEEL,FPM- and 3615 –... - Page 16 wilhelmsen.com Wilhelmsen Ships Service Phone: +47) 67 58 40 00 Fax: +47) 67 58 40 80 Postal Address: PO Box 33, NO-1324 Lysaker, Norway...
