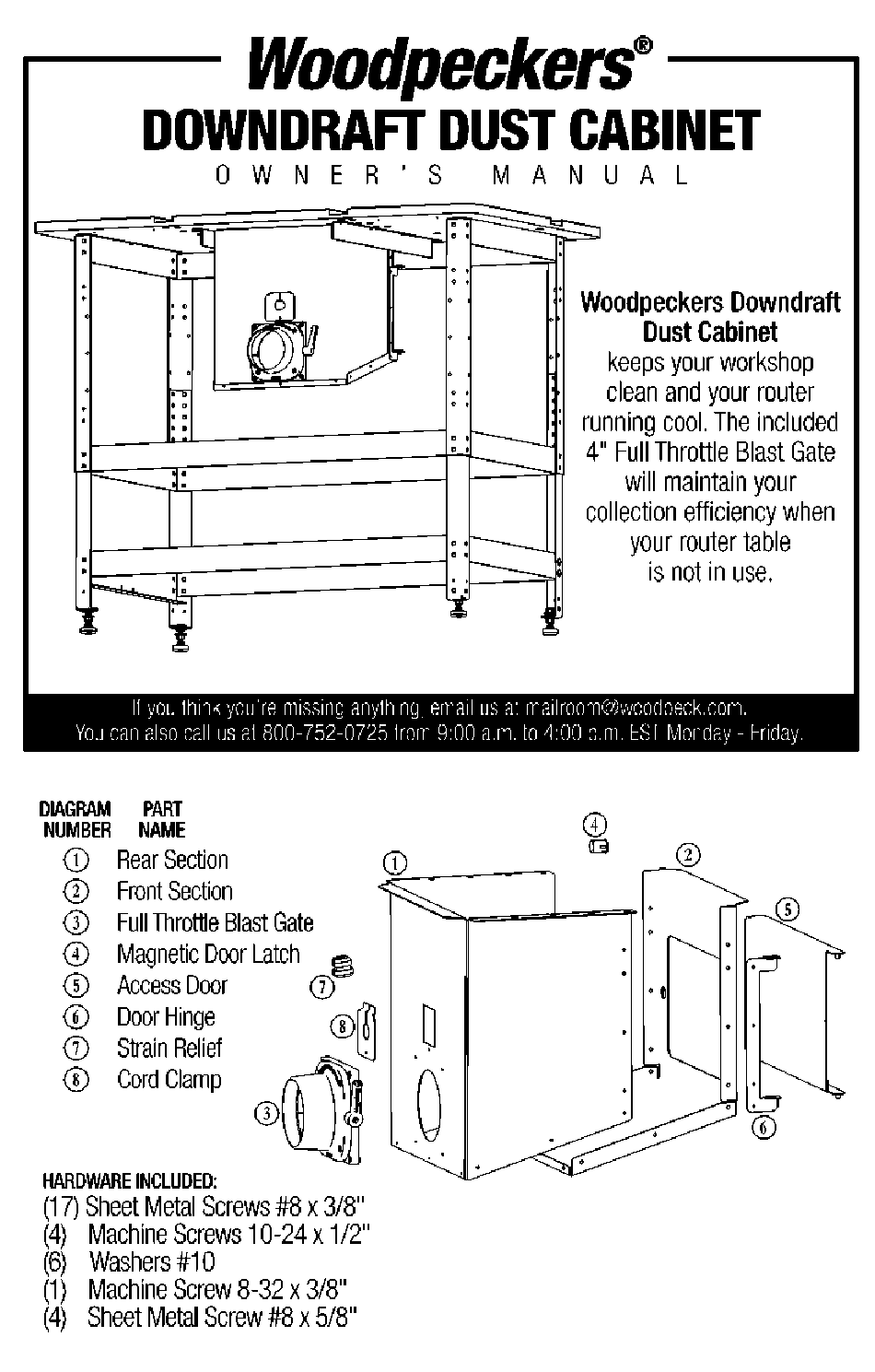

Woodpeckers DOWNDRAFT DUST CABINET Owner's Manual

Woodpeckers^
OWN RAFT UST CABINET
WNER ' S MANUAL
oodpeckers Downdraft
Dust Cabinet
keeps your workshop
clean and your router
running cool. The included
4" Full Throttle Blast Gate
will maintain your
collection efficiency when
your router table
is not in use.
If you think you're missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 4:00 p.m. EST Monday - Friday.
ARDWARE INCLUDED:
( 17 ) Sheet Metal Screws #8 x 3/8"
(4) Machine Screws 10 -24 x 1 /2"
(6) Washers # 10
( 1 ) Machine Screw 8-32 x 3/8"
(4) Sheet Metal Screw #8 x 5/8"
DIAGRAM PART
NUMBER NAME
1
Rear Section
2
Front Section
3
Full Throttle Blast Gate
4
Magnetic Door Latch
5
Access Door
6
Door Hinge
7
Strain Relief
8
Cord Clamp
