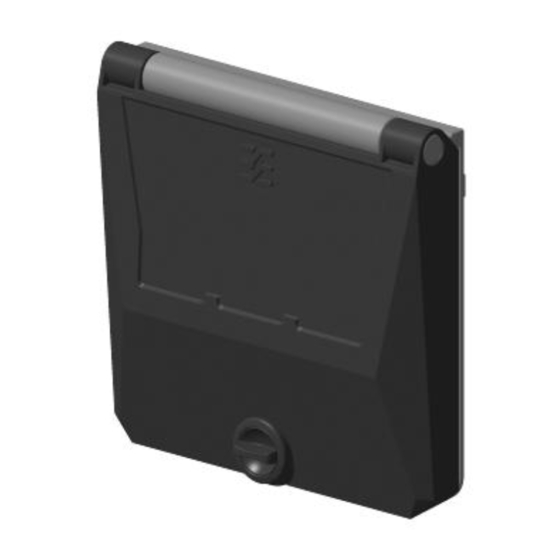

FrontCom® Vario / IE-FC-DFM-KEY (-KNOB; -CAB; -CAB-DB)
Montagehinweis / Mounting information / Référence de montage / Indicaciones de montaje /
Infomazioni per il montaggio
1
3
If used:
5
1)
2)
Weidmüller Interface
GmbH & Co. KG
Postfach 3030
32720 Detmold / Germany
2
4A
„Click"
„Click"
6
For power socket the protection cap
!
is recommended, for US power it is
mandatory!
Tel.: +49 (0)5231/14-0
Fax: +49 (0)5231/14-292083
E-mail: info@weidmueller.com
http://www.weidmueller.com
4x
0,5 Nm
4B
„Click"
6a
Montageanleitung siehe
Mounting instructions see
Instructions de montage
Instrucciones de montaje
Instruzioni per il montaggio : www.weidmueller.com
Montageausschnitt / Cut out:
117*91 mm
1.Cut
If using
small
sockets:
2.Remove
