INSTRUCTION SHEET
CADDY® EZ RISER
Model Number:
Model #520 Size Range: 1/2" - 8"
†
Model #510
Model #512(CQ) Size Range: 1"-3", 4"-6"
This product provides support for vertical steel pipe risers.
Install in accordance with ANSI®/MSS-SP-69.
Clamp is fitted for steel pipe and should be installed below a coupling or shear lug,
with bolts torqued to recommended value.*
†Model #510, Sizes 2" through 8" are cULus® listed.
‡Model #512(CQ), sizes 1" through 3" and 4" through 6" are cULus®
listed.
Note: Wings of riser clamp must rest on
structure with a hole diameter no
larger than the bolts. (SEE REVERSE)
WARNING:
1. ERICO products shall be installed and used only as indicated in ERICO product instruction sheets and training materials.
www.erico.com and from your ERICO customer service representative.
2. ERICO products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow ERICO's instructions and warnings may cause product malfunction, property
damage, serious bodily injury and death.
5. Products that are manufactured using spring steel components shall be used only in a non-corrosive indoor environment.
6. All pipe supports, hangers, intermediate components and structural attachments must ONLY be used as described herein and are NEVER to be used for any
other purpose.
NOTE: All load ratings are for static conditions and do not account for dynamic loading such as wind, water or seismic loads, unless otherwise noted.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified
engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
cULus is a registered trademark of Underwriters Laboratories, Inc.
ANSI is a registered trademark of American National Standards Institute.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
TECHNICAL SUPPORT:
www.erico.com
510, 512,520
‡

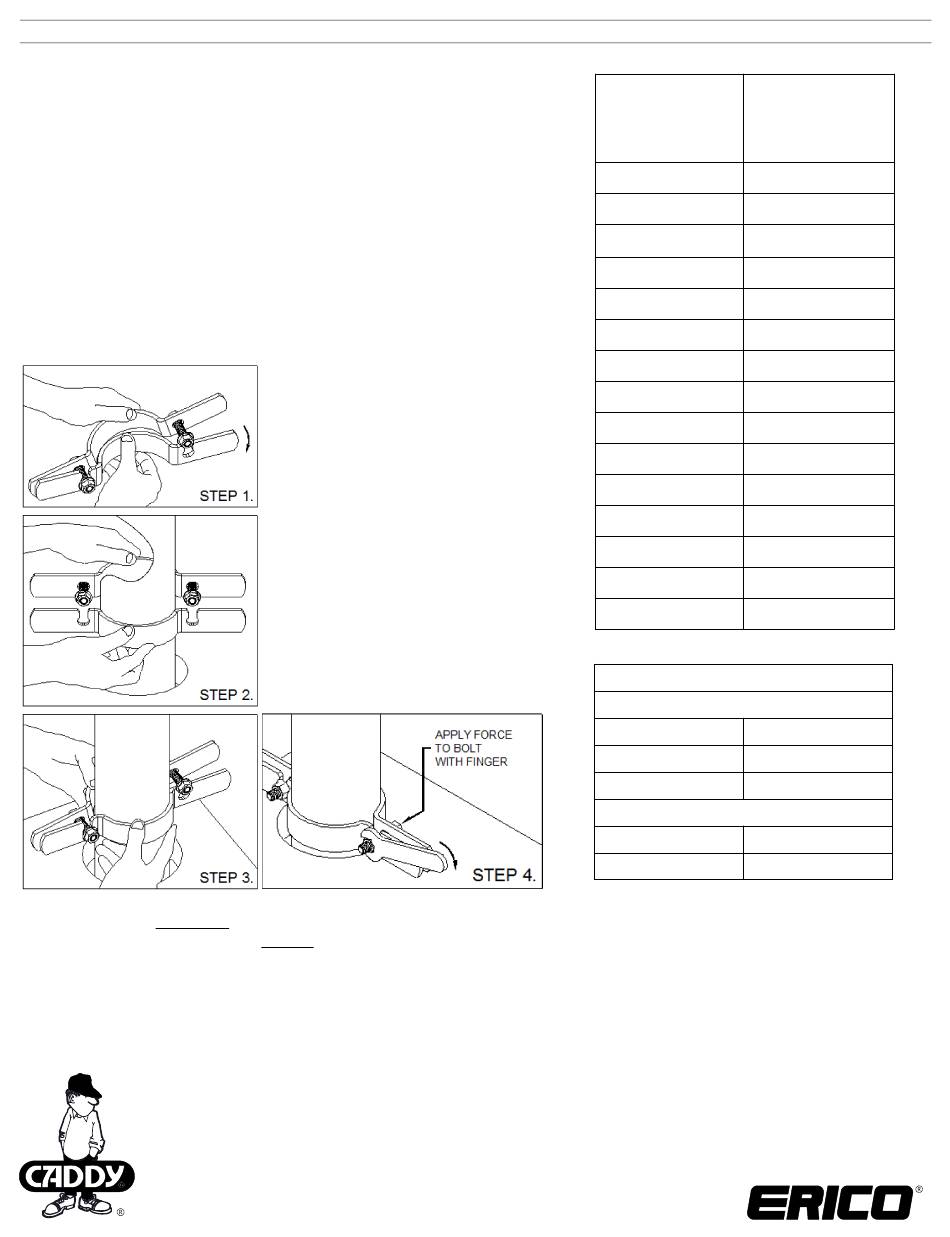

Step 1: Loosen bolts and separate
two halves of the riser.
(Note: DO NOT remove
bolts, just loosen nuts)
Step 2: Place each half of the riser
clamp around the pipe as
shown.
(Note: Install the slotted
half with open side of slots
facing up as shown)
Step 3: Slide the half with the bolts
into the half with the slots
as shown. Then let the riser
clamp slide down the pipe
until it rests on the floor.
Step 4: Tighten (Torque) The Bolts.
CFS306_M 1 OF 2
FOR NOMINAL
PIPE SIZE
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
3-1/2"
4"
5"
6"
8"
10"
12"
RECOMMENDED TORQUE
3/8-16 Bolt
1/2-13 Bolt
5/8-11 Bolt
3/8-16 Bolt
1/2-13 Bolt
© 2008, 2015 ERICO International
Corporation.
MAX. RECOM.
LOAD (LBS)
255
255
255
255
255
255
390
530
670
810
1160
1570
2500
2500
2700
Models 510 and 520
19 ft. lbs.
50 ft. lbs.
75ft. lbs.
Model 512
30 ft. lbs.
50 ft. lbs.
Instruction sheets are available at
