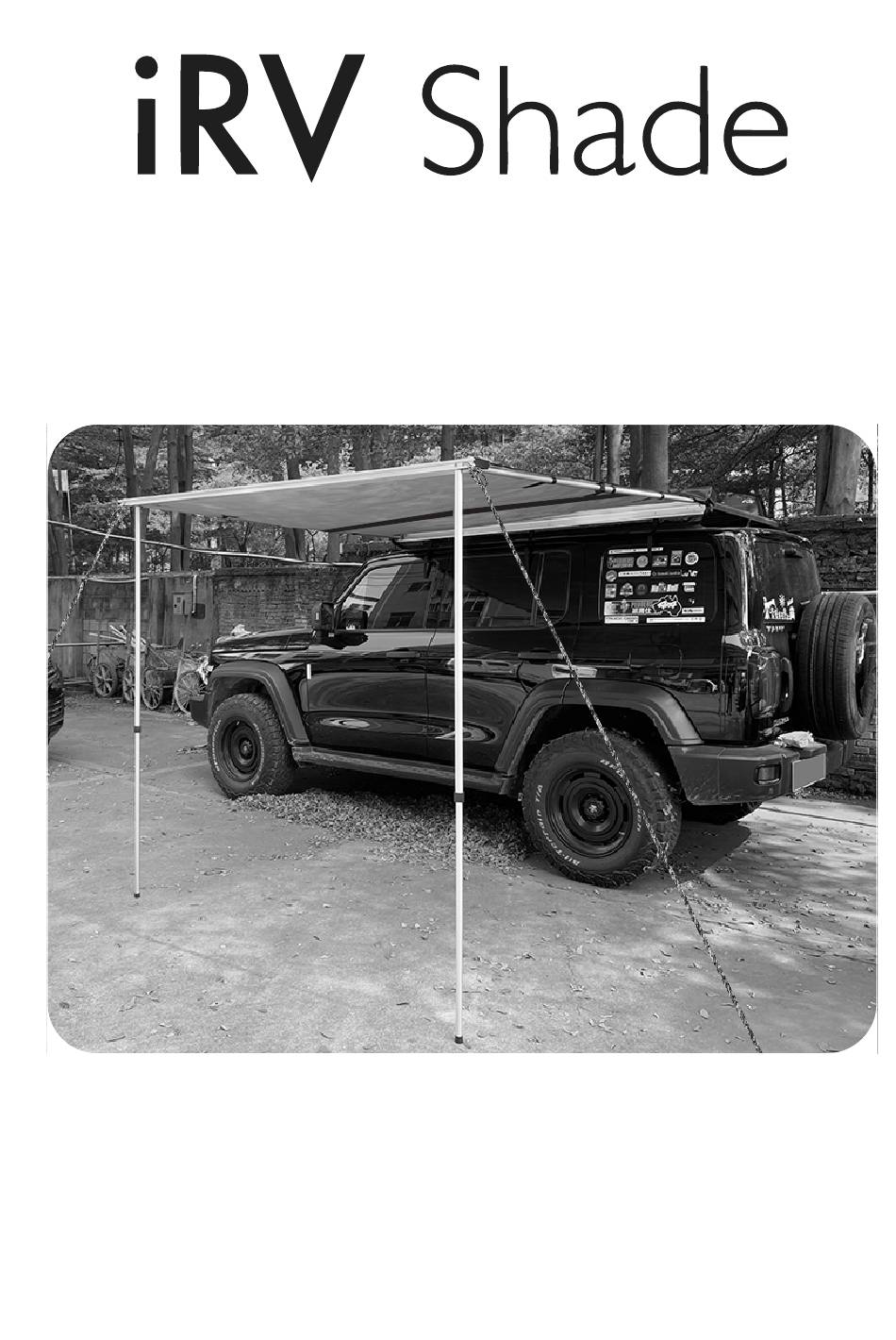

- Page 1 Awning User Manual iRV2500UL-S...
- Page 2 floats, camper trailers and many other applications. This versatile product will give you trouble free service providing you follow these simple mounting, operating and care instructions. Before mounting Awning iRV2500UL-S to your vehicle a few items need to bo consideredred. 1. Awning iRV2500UL-S is supplied with 4 sets of bolts and nyloc nuts.
- Page 3 2. Mounting to roof bars: 1. Fit your mounting brackets to the roof bars. 2. Postion the awning on the roof bar brackets to determine the desired mounting position. Remember to consider opening of doors on the vehicle etc. 3. Insert the provided bolts into the mounting extrusion on the rear of the awning, and fit to the roof bar brackets, using nylock nuts provided.
- Page 4 4. Installation 1. Undo the zip on the PVC bag, and release the buckles holding the awning in place. See ① 2. Release the awning rafter arms from the main aluminium extrusion. Swing both rafter arms slightly more than 90° away from the vehicl.
- Page 5 5. Parts List 1x Awning 1x Three stage dimming LED light bar 4x Guy ropes & stakes 2x L-shaped mounting brackets 2x Plates 4x Sets of bolts 4x Sets of nyloc nuts 1x User manual...
