Summary of Contents for Osmo VX7

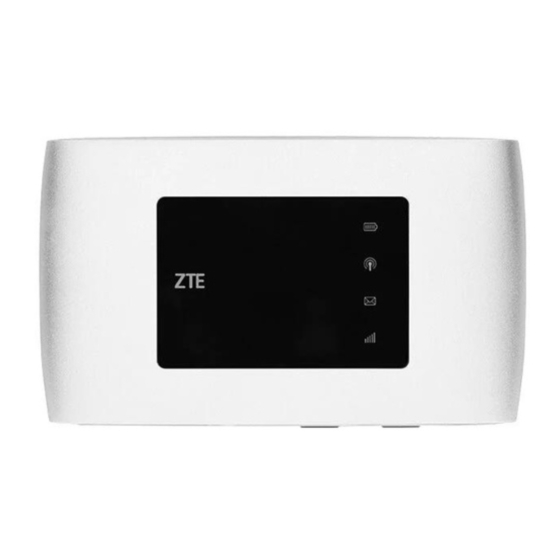

- Page 1 HotSpot VX7 User Manual...
- Page 2 If you want to read this user manual in a different language, please visit osmousermanual.com...
-
Page 3: Specifications
Specifications 1) External antenna connectors (not supported by all the devices) 2) Charging/micro-USB jack 3) Indicator light 4) Power key Press and hold for about 3 seconds to power on/off your device. Press and hold for about 10 seconds to restart your device. - Page 4 Indicator Lights Battery Red Solid/Blinking - The battery is low. Please charge the battery. Green Blinking - The battery is being charged. Green Solid - The battery level is middle or high. Lights Off - Your device is not being charged. Wi-Fi Blue Blinking - WPS is active.
-
Page 5: Installation
Green blinking The device is connected to the 2G/3G mobile network and data is being transferred. Blue solid The device is registered to the 4G LTE network. Blue blinking The device is connected to the 4G LTE network and data is being transferred. Installation 1) Open the SIM card slot cover NOTE: Do not remove the cover rudely, because it is... - Page 6 3) Close the micro-SIM card slot cover. Connecting Using Wi-Fi 1. Turn on your device 2. Ensure that your computer or other devices have enabled Wi-Fi and search for available networks. NOTE: If you use a computer, you need to set your computer to obtain and IP address automatically.
-
Page 7: Accessing Internet
You can view the label on the device to get the default Wi-Fi SSID and password. Logging In 1. Ensure that the connection between your device and the client device is active. Launch internet browser enter http://192.168.0.1 or http://ufi.ztedevice.com in the address bar 3. - Page 8 Automatic Your device is automatically connected to the Internet, and you can surf on the Internet through the client. Manual 1. Log in to the 4G Mobile Hotspot configuration page 2. In my router section, select LTE (or other network type), Settings >...
-
Page 9: Troubleshooting
Troubleshooting Problem Solution • Install the software. Please run the installation program in the The connection between your path of My Computer. device and a PC through a USB • If the driver of your device is cable cannot be established. abnormal, reinstall the software. - Page 10 • Enter the correct address. The default address is The 4G Mobile Hotspot http://192.168.0.1 or http://uf. confguration page cannot be ztedevice.com. visited. • Use only one network adapter in your PC. • Do not use any proxy server. Precautions • If inadequately shielded, some electronic devices, for example, the electronic system of vehicles, may be affected by the electromagnetic interference caused by the device.
- Page 11 Avoid using the device near or inside metallic constructions or establishments that can emit electromagnetic waves, because signal reception may be affected. • The device is not waterproof. Keep the device dry and store it in a shady and cool place. •...
- Page 12 If you want to read this user manual in a different language, go to osmousermanual.com Have any questions or need help? Send us an email at support@tryosmo.com and we will be happy to assist you!
