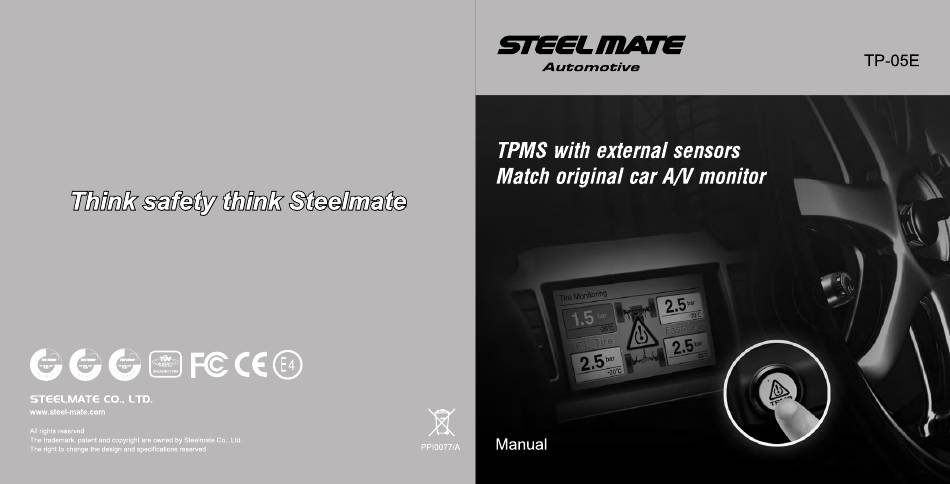

Summary of Contents for Steel mate TP-05E
-
Page 2: Table Of Contents
Contents User Manual Installation Manual Important notice -------------------------------- Packing list ------------------------------------------------ About the product ------------------------------ Remote button installation --------------------------- Technical specification ------------------------ Wiring diagram ----------------------------------------- Key features ------------------------------------- About the TPMS sensor ----------------------------- Remote button & installation ----------------- Sensor installation ------------------------------------- Interface of the TPMS ------------------------- Sensor battery replacement ------------------------ How does the system work -------------------... -
Page 3: User Manual
Important notice This unit is only for vehicles with 12V DC and time for pressure and temperature. When there its tire pressure is within 3.5 Bar/50 Psi is any abnormal tire pressure and/or temperature happened, the system will, in real-time, transmit This unit should be installed by a professional signals to activate an alarm and warning the technician according to the installation manual... -
Page 4: Key Features
Key features Interface of the TPMS Match with original car A/V monitor 1. Main Interface Easy-to-install external sensor with locking design Tire symbol Visual and audible warning for abnormal tire pressure and temperature Status Pressure unit Remote button to turn on TPMS on monitor Tire pressure Stable wireless signal transmission Temperature unit... -
Page 5: How Does The System Work
Default settings: Maximum Pressure: 3.5 bar (Adjustable range: 2.8~3.5 bar) Pressure Unit: (Psi and Kgf/cm are optional) Minimum Pressure: 1.8 bar (Adjustable range: 1.7~2.4 bar) Temperature Unit: F is optional) Maximum Temperature: (Can not be changed) Press the remote button once Tire information interface Alarm warning for abnormal tire conditions When the tire is abnormal (high pressure, low pressure, high temperature, fast leak, slow leak, low sensor... -
Page 6: Upgrade Function
TPMS sensor programming All sensors in this unit have been pre-set individually for each tire in the factory. Once the labeled sensors are installed in the corresponding tires, there will be no need to program the sensors. Whenever a tire position is changed, the sensor must be changed correspondingly. 5. -
Page 7: Installation Manual
Packing list Video Cable Speaker Remote button Wire tie Spanner (Please keep it in car Sensor Washer Dustproof Sensor tool Manual Installation Manual for in case) cover Remote button installation Glue the remote button on the dashboard for the driver easy to reach (refer to picture at right) Press the remote button to enter the tire information interface... -
Page 8: Wiring Diagram
Wiring diagram 2A Fuse Pink ACC(+12V) Parking light(+12V) 2A Fuse Black Blue Set button Blue Connect to A/V rear view wire Rear view video input If A/V is positive trigger, connect Gray to ACC(+12V) OE car rear view camera If A/V is nagative trigger, connect Upgrade optional to GND Pink... -
Page 9: Sensor Installation
Sensor installation Sensor battery replacement Unscrew the valve cap Insert the dustproof cover into Screw in the nut Unscrew the nut Unscrew the sensor Take out the washer the valve stem Screw on the sensor Tighten up the nut to the sensor Check air leakage by spraying Unscrew the sensor cover by Replace the battery... -
Page 10: Trouble Shooting
Trouble shooting 1. After the installation, there is no tire information on the display? 1) The sensors are not programmed to the display, please reprogramm the sensors. 2) The display is not turned on. 3) The video cable is not connected 2.
