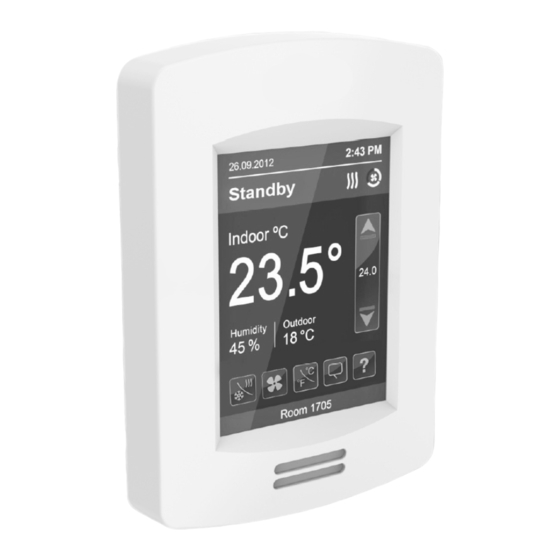

TH-PC-M Controller
User Interface Guide
Modulating Controller for
Re-Verber-Ray® MP3 Series Heaters
Failure to read and follow all instructions carefully before installing or operating this
control could cause personal injury and/or property damage.
ELECTRICAL SHOCK HAZARD
To prevent electrical shock and/or equipment damage, disconnect electric power to
the system at the main fuse or circuit breaker box until installation is complete.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ___________________Serial #: _________________________
WARNING
!
(located on rating label)
LIOTHPCM-Rev. 03224
Print: XM-02/24(DRPC)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Re-Verber-RayTH-PC-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Detroit Radiant Products Re-Verber-RayTH-PC-M

  • Page 1 TH-PC-M Controller User Interface Guide Modulating Controller for Re-Verber-Ray® MP3 Series Heaters WARNING Failure to read and follow all instructions carefully before installing or operating this control could cause personal injury and/or property damage. ELECTRICAL SHOCK HAZARD To prevent electrical shock and/or equipment damage, disconnect electric power to the system at the main fuse or circuit breaker box until installation is complete.

  • Page 2: Table Of Contents

    TH-PC-M Thermostat Table of Contents .0 Introduction ..............3 Safety Information .

  • Page 3: Introduction

    TH-PC-M Thermostat Introduction • Safety Information Introduction Safety Information Read these instructions carefully and inspect the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

  • Page 4: Before You Begin

    TH-PC-M Thermostat Introduction • Before You Begin Before You Begin IMPORTANT! This controller has been loaded with a custom program specific to MP3 Series heaters. Certain default values will represent non-standard values. LOSS OF CONTROL The designer of any control scheme must consider the potential failure modes of control paths and, for certain critical control functions, provide a means to achieve a safe state during and after a path failure.

  • Page 5: User And Integrator Screens

    TH-PC-M Thermostat Introduction • User and Integrator Screens WARNING Electrical Shock Hazard Disconnect power at the main fuse or breaker prior to installing this unit. User and Integrator Screens This guide shows the user interface instructions for the TH-PC-M Series Controller firmware revision 2.6 for users and integrators.
  • Page 6 TH-PC-M Thermostat Introduction • BACnet Integration and Guide References Disclaimer Standby screen: The controller incorporates TFT-type LCD technology, and therefore, necessary precautions are required to prevent the phenomenon of image retention (residual image) from occurring. Image retention may occur when a static image is displayed on the screen for a prolonged period of time. This can cause a faint outline of the image to remain visible on the screen when the screen is changed via the user menu, or a different image is uploaded and selected to be displayed.
  • Page 7 TH-PC-M Thermostat Introduction • HMI Display HMI Display The User Human Machine Interface (HMI) is configurable and allows display functions such as Date, Time, Humidity, CO levels, Outdoor Temperature, and Setpoint to be enabled or disabled by setting various parameters. Time Date System Status...
  • Page 8 TH-PC-M Thermostat Introduction • Enter Setup Screen Enter Setup Screen Touch and hold this point for 3 seconds to enter setup mode Note: If a configuration/installer password is activated to prevent unauthorized access to the configuration menu parameters, a password entry prompt shows to prevent access to device configuration components.

  • Page 9: Customized User Hmi Display

    TH-PC-M Thermostat Customized User HMI Display • User HMI for Hospitality Customized User HMI Display User HMI for Hospitality To select the User HMI configuration, refer to “Display 1/3” on page 43. Hospitality 0 Hospitality 1 Hospitality 2 Hospitality 3 •...
  • Page 10 TH-PC-M Thermostat Customized User HMI Display • User HMI for Commercial User HMI for Commercial To select the User HMI configuration, refer to “Display 1/3” on page 43. Commercial 7 Commercial 8 Commercial 9 Commercial 10 • Setpoint adjustment • Setpoint adjustment •...
  • Page 11 TH-PC-M Thermostat Customized User HMI Display • User HMI Show/Hide Options User HMI Show/Hide Options User HMI displays can be customized further by hiding the system status, fan status or help button. Each show/hide option is applicable to all User HMI configurations where the option is shown. To hide the option, select disabled for each display setup screen parameter.
  • Page 12 TH-PC-M Thermostat Customized User HMI Display • System Mode System Mode System Mode Parameter Details Configuration Parameters Default Value Significance and Adjustments System Mode System Mode Default value: Heat MV16 Off: Heating, Cooling, and Dehumidification demands are ignored. Auto: Controller automatically toggles between Heating and Cooling modes to satisfy both Heating and Cooling demands.

  • Page 13: Heating Only Configuration

    TH-PC-M Thermostat Customized User HMI Display • Heating Only Configuration Heating Only Configuration Time and Date show only when a network time synchronization command is received. Setpoint value shows if main display parameter is set to Setpoint. On/Off icon is used instead of system mode icon when sequence of operation is set to either heating only...
  • Page 14 TH-PC-M Thermostat Customized User HMI Display • Other Functions Other Functions Local humidity shows when RH display is enabled on the setup display screen, from either the internal onboard sensor or a wireless sensor end device selected by the RH sensor parameter on the setup configuration screen.

  • Page 15: Integrator Setup Screens

    TH-PC-M Thermostat Integrator Setup Screens • Network Screens Integrator Setup Screens Network Screens User can select wired BACnet/Modbus/Zigbee wireless protocol (when Zigbee feature is available). NOTICE UPGRADE OF ZIGBEE FIRMWARE REVISION 24 TO 30 The upgrade from Zigbee firmware revision 24 to 30 will not support the Green Power Sensor (SED-CO2-G-5045 or SEDTRH-G-5045).

  • Page 16: Zigbee Network 1/3

    TH-PC-M Thermostat Integrator Setup Screens • Zigbee Network Zigbee Network 1/3 The Zigbee Network screen shows only in models with onboard Zigbee or optional Zigbee add-on module. When creating a Zigbee network, there must be one and only one device with its Node Type set to Coordinator.
  • Page 17 TH-PC-M Thermostat Integrator Setup Screens • Zigbee Network Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Channel Zigbee Channel Default value: 10 The channel (wireless frequency) on which the Zigbee network transmits and receives data. The channel of the Coordinator must match that of the routers to exchange data.
  • Page 18 TH-PC-M Thermostat Integrator Setup Screens • Zigbee Network Zigbee Network 2/3 Parameter Details Configuration Parameters Default Value Significance and Adjustments COM address COM Address Default value: 254 Controller networking address. For wireless models, the use of the COM AV10 address is not mandatory. The COM address is an optional way to identify a device on the network and is recommended if used with a BMS.
  • Page 19 TH-PC-M Thermostat Integrator Setup Screens • Zigbee Network Zigbee Network 3/3 Parameter Details Configuration Parameters Default Value Significance and Adjustments IEEE address Zigbee IEEE Address Read Only The extended IEEE address (MAC address) is a unique worldwide identifier CSV10 of the onboard Zigbee or optional Zigbee add-on module. Install code Install Code Read Only...

  • Page 20: Bacnet Network Settings

    TH-PC-M Thermostat Integrator Setup Screens • BACnet Network Settings BACnet Network Settings BACnet network screen shows when BACnet MS/TP is selected in wired protocol parameter. Parameter Details Configuration Parameters Default Value Significance and Adjustments COM address COM Address Default value: 254 Controller networking address.
  • Page 21 TH-PC-M Thermostat Integrator Setup Screens • BACnet Instance Number BACnet Instance Number The default BACnet instance number is generated by the model number and COM address of the Controller. For example, the instance number of a VT8650U5500BP with a COM address of 57 is generated as “86057.”...

  • Page 22: Modbus Network Settings

    TH-PC-M Thermostat Integrator Setup Screens • Modbus Network Settings Modbus Network Settings Modbus network screen shows when Modbus is selected in wried protocol parameter. Parameter Details Configuration Parameters Default Value Significance and Adjustments Comm address Communication Address Default value: 254 Valid address range is set at 1 to 247 and each Modbus device must have a unique address.

  • Page 23: Wi-Fi Network Settings

    TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi Wi-Fi 1/5 The Wi-Fi Network screen shows only in models with optional Wi-Fi module (VCM8002). The device name can be set and edited from the Configuration Firmware version of the Wi-Fi Web Page module MAC address of the Wi-Fi module Restart Wi-Fi button...
  • Page 24 TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi Wi-Fi 2/5 The SSID of the Access Point created by the Wi-Fi module. You can add your device to this network to access the Configuration Web The Password needed to connect Page to the Access Point Wi-Fi network When connected to the Access Point, browse to this IP address to access the Configuration Web Page...
  • Page 25 TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi Wi-Fi 3/5 SSID of the building Wi-Fi network that the device is connected to When connected to the building Wi-Fi network shown above, browse to this IP address to access the Configuration Web Page Parameter Details Configuration Parameters Default Value...
  • Page 26 TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi Wi-Fi 4/5 Parameter Details Configuration Parameters Default Value Significance and Adjustments Facility Expert Facility Expert Enabled Read Only Shows whether the Facility Expert system is Disabled or Enabled. MSI319 Status value: 1=Disabled, 2=Enabled Status Facilty Expert Status Read Only...
  • Page 27 TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi Wi-Fi 5/5 Parameter Details Configuration Parameters Default Value Significance and Adjustments Factory reset? Erase All Default value: No Accepting Yes for both and then tapping ‘Push to accept’ will restore the Wi-Fi module to the factory settings, erase all configuration data and revert the Wi-Fi module firmware to the factory firmware version.

  • Page 28: Wi-Fi Bacnet Network Settings

    TH-PC-M Thermostat Integrator Setup Screens • Wi-Fi BACnet Network Settings Wi-Fi BACnet Network Settings BACnet network screens are shown when the wired protocol is set to BACnet or a Wi-Fi module is installed with BACnet/IP enabled. Only one BACnet protocol can be used at a time, either the wired protocol BACnet MS/TP (BACnet Network screens), or the Wi-Fi BACnet IP (Wi-Fi screens).

  • Page 29: Configuration Screens

    TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 1/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments UI16 config UI16 Configuration Default value: None None: No function will be associated with the input. Input can be used for MV46 remote network monitoring.
  • Page 30 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments UI20 config UI20 Configuration Default value: RS The UI20 Remote Sensor (RS) can be wired to a room temperature sensor MV185 or a mixed air temperature sensor. If RS is selected, make sure the Temp. sensor parameter value is set to Wired, refer to ”Configuration 3/11”...
  • Page 31 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 2/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Standby mode Standby Mode Configuration Default value: Absolute Standby setpoints used for control. MV11 Absolute: Standby entered values are used for standby mode. Offset: Occupied setpoints +/- Standby diff.
  • Page 32 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 3/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Standby time Standby Time Default: 0.5 hrs Time between the moment where the PIR cover detects last movement in AV67 the area, and the time which the Controller stand-by setpoints become active.
  • Page 33 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 4/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Frost protec. Frost Protection Default value: Off If the Room Temperature drops below 42°F (5.6°C), the Fan and the Heat MV55 will be activated until the Room Temperature rises over 42°F (5.6°C).
  • Page 34 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 5/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Prop. band Proportional Band Default value: 3.0 Adjusts proportional band used by Controller PI control loop. AV65 Note: Default value of 3 gives satisfactory operation in most normal installation cases.
  • Page 35 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 6/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Heat lockout Heating Lockout from Outside Air Temperature Default value: 120°F (49°C) Disables mechanical heating operation when Outdoor Temperature is AV91 higher than the “Heating Lockout”...
  • Page 36 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 8/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Application Application Default value: Rooftop Sets Controller operating logic for either a Rooftop or a Heat Pump MV119 application. Note: if the Heat Pump Unit (HPU) does not have an O/B terminal (reversing valve), set this parameter to Rooftop.
  • Page 37 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 9/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Main password Main Password Default value: 0 Sets a protective access password to prevent unauthorized access to AV56 configuration menu parameters. A default value of “0” will not prompt for a password or lock access to the configuration menu.
  • Page 38 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Smart recovery Enable Smart Recovery Default value: Off Off: No smart recovery. The occupied schedule time is the time at which MV71 the system will restart.
  • Page 39 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 10/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Calib. temp. Calibrate Room Temperature Sensor Default value: 0°F (0°C) Room temperature sensor calibration. Offset can be added or subtracted to actual displayed room temperature.
  • Page 40 TH-PC-M Thermostat Integrator Setup Screens • Configuration Screens Configuration 11/11 Parameter Details Configuration Parameters Default Value Significance and Adjustments Erase all? Erase All Default value: No Accepting Yes for both and then tapping ‘Push to accept’ returns all values to the factory default settings with the exception of the following: •...

  • Page 41: Setpoints Screens

    TH-PC-M Thermostat Integrator Setup Screens • Setpoints Screens Setpoints 1/2 Parameter Details Configuration Parameters Default Value Significance and Adjustments Occ. heat Occupied Heat Setpoint Default value: 72°F (22°C) Heating Temperature setpoint used by the Controller when in Occupied AV39 mode. Range: 40 to 90°F (4.5 to 32.0°C) Standby heat Standby Heat Setpoint...
  • Page 42 TH-PC-M Thermostat Integrator Setup Screens • Setpoints Screens Setpoints 2/2 Parameter Details Configuration Parameters Default Value Significance and Adjustments Default heat Default Heating Setpoint Default value: 72°F (22°C) Used for hospitality applications in stand-alone mode only to reset the AV45 occupied setpoints when a new guest enters the room.

  • Page 43: Display Screens

    TH-PC-M Thermostat Integrator Setup Screens • Display Screens Display 1/3 IPS Screen Parameter Details Configuration Parameters Default Value Significance and Adjustments User HMI User HMI Default value: 0 Sets layout of icons on the home screen for various applications. For more information, refer to “Customized User HMI Display”...
  • Page 44 TH-PC-M Thermostat Integrator Setup Screens • Display Screens Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Contrast Contrast Default value: 0 Control screen contrast and brightness. Range: -5 to 5 Contrast IPS Screen Contrast Read Only Starting with firmware revision 2.6, some RCs are shipped with an In-Plane Switching (IPS) screen that does not need contrast adjustment.
  • Page 45 TH-PC-M Thermostat Integrator Setup Screens • Display Screens Display 2/3 Parameter Details Configuration Parameters Default Value Significance and Adjustments Language Display Language Default value: English Select language for main display. Choices: 1=English, 2=French, 3=Spanish, 4=Chinese, 5=Russian, 6=Arabic, 7=Bulgarian, 8=Czech, 9=Danish, 10=Dutch, 11=Finnish, 12=German, 13=Hungarian, 14=Indones., 15=Italian, 16=Norwegian, 17=Polish, 18=Portug., 19=Slovak, 20=Swedish, 21=Turkish, 22=Japanese, 23=Hebrew...
  • Page 46 TH-PC-M Thermostat Integrator Setup Screens • Display Screens Display 3/3 Parameter Details Configuration Parameters Default Value Significance and Adjustments Fan status Display the Fan Status icon Default value: Enabled Hides the fan status in the upper right corner of the User HMI display. MV180 Applicable to all User HMI configurations where the fan status is shown.

  • Page 47: Service View Screens

    TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 1/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments Room temp. Room Temperature Read Only Shows the current room temperature from the configured temperature AV100 source. Remote temp. UI20 Remote Temperature Read Only Shows the temperature of the sensor connected to UI20 (RS) terminal.
  • Page 48 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 2/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments Effective occ. Effective Occupancy Read Only Shows as occupied, unoccupied, standby or override. MSI33 Display Readings: 1=Occupied, 2=Unoccupied, 3=Override, 4=Standby PI heat demand PI Heating Demand Read Only...
  • Page 49 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 3/10 Only for models with onboard Zigbee or optional Zigbee add-on module. Parameter Details Configuration Parameters Default Value Significance and Adjustments UI16 binary UI16 Binary Input Read Only Shows status of input. BI29 Display Readings: 1=Activated, 2=Not activ UI17 binary...
  • Page 50 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 5/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments Frost alarm Frost Protection Alarm Read Only Shows if Frost Alarm is active or not. BV43 Display Readings: 1=Off, 2=On Recovery Smart Recovery Status Read Only...
  • Page 51 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 6/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments UO9 config UO9 Configuration Read Only Display Readings: 1=Analog, 2=Binary, 3=Relay RC, 4=Relay RH MV96 UO10 config UO10 Configuration Read Only Display Readings: 1=Analog, 2=Binary, 3=Relay RC MV97...
  • Page 52 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 7/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments UI19 type UI19 Input Type Read Only Display Readings: 1=Therm., 2=Binary, 3=Voltage MV140 UI20 type UI20 Input Type Read Only Display Readings: 1=Therm., 2=Binary, 3=Voltage MV141 UI22 type...
  • Page 53 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 9/10 Parameter Details Configuration Parameters Default Value Significance and Adjustments Eff. sys. mode Effective System Mode Read Only Shows the current operating mode of the system. For example, when the MSI314 system is in Auto mode, this parameter shows whether it is currently heating or cooling.
  • Page 54 TH-PC-M Thermostat Integrator Setup Screens • Service View Screens Service View 10/10 The Device Name (BACnet name) consists of the model number followed by the COM address (MAC address). The BACnet name can be changed via the BACnet front end and the new name appears on the above screen. For example, when a VT8650U5500BP Controller with a MAC address of 41 is connected to a network, its default Device Name is VT8650U5500BP-41 and its default BACnet Device ID is 86041.

  • Page 55: Test Outputs Screens

    TH-PC-M Thermostat Integrator Setup Screens • Test Outputs Screens Test Outputs Screens NOTICE SAFE OPERATION ENVIRONMENT Use high caution when manually enabling outputs so as to not cause damage to equipment. It is the responsibility of the Installer or Service Contractor to maintain a safe operation environment during usage. Failure to follow these instructions can result in equipment damage.
  • Page 56 TH-PC-M Thermostat Integrator Setup Screens • Test Outputs Screens Parameter Details Note: This controller has been loaded with a custom program specific to MP3 Series heaters. Default values shown in bold correspond to the heater-specific value in []. Configuration Parameters Default Value Significance and Adjustments BO1 aux.

  • Page 57: Language Selection Screens

    TH-PC-M Thermostat Integrator Setup Screens • Language Selection Screens Language Selection Screens Only English, French, Spanish, Chinese, and Russian are enabled by default and are accessible to users cycling through languages on the display settings menu screen. To change the language selection settings, tap a language on the screen and then use the arrow buttons to disable or enable it.
  • Page 58 TH-PC-M Thermostat Integrator Setup Screens • Language Selection Screens Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Arabic Arabic Default value: Enabled Choices: 1=Disabled, 2=Enabled MV120 Czech Czech Default value: Enabled Choices: 1=Disabled, 2=Enabled MV122 Danish Danish Default value: Enabled Choices: 1=Disabled, 2=Enabled MV123 Dutch...

  • Page 59: Clock Schedule Screens

    TH-PC-M Thermostat Integrator Setup Screens • Clock Schedule Screens Clock Schedule Screens Clock Settings Schedule Settings Options Settings Note: The Clock- Schedule Menu screen is directly accessible from the main setup screen.
  • Page 60 TH-PC-M Thermostat Integrator Setup Screens • Clock Clock The Clock settings screen allows the device’s internal time settings to be changed (current time, day, month, year, and weekday options), as well as to choose between a 12 hour AM/PM display or 24 hour display.
  • Page 61 TH-PC-M Thermostat Integrator Setup Screens • Schedule Schedule There are seven different schedule setting screens, one for each day of the week. Each day can have different scheduled events where the Controller is set to Occupied status or back to Unoccupied status. The Controller can use the appropriate setpoints (back and forth) up to three times per day.

  • Page 62: Occupancy Options

    TH-PC-M Thermostat Integrator Setup Screens • Options Options The options settings allow the Controller to function in Occupied or Unoccupied mode following a defined Schedule type set by the user. Identified by day of the week (Sunday through Saturday) Parameter Details Configuration Parameters Default Value Significance and Adjustments Occupancy cmd...

  • Page 63: Automatic Demand Response (Adr) Screen

    TH-PC-M Thermostat Integrator Setup Screens • Automatic Demand Response (ADR) Screen Automatic Demand Response (ADR) Screen Automatic Demand Response (ADR) feature is used to reduce energy load when electric grid contingencies threaten supply-demand balance. Parameter Details Configuration Parameters Default Value Significance and Adjustments Permission ADR Permission...
  • Page 64 TH-PC-M Thermostat Integrator Setup Screens • Automatic Demand Response (ADR) Screen • Wireless Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Shed offset Load Shedding Offset Default value: 4°F (2°C) Used to change the effective setpoints in occupied, standby and AV211 unoccupied modes.

  • Page 65: Ecosystem Settings

    TH-PC-M Thermostat Integrator Setup Screens • Ecosystem Settings Ecosystem Settings The Ecosystem Settings screens show the network status, the number of paired devices as well as information for each paired device. A maximum of 20 Zigbee wireless devices can be paired to each Controller.
  • Page 66 TH-PC-M Thermostat Integrator Setup Screens • Ecosystem Settings Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Permit timeout Permit Join Timeout Default value: 0 Allows Zigbee devices to join the Coordinator Controller for 180 minutes Read Only from the moment it is set to ON. Once the timer elapses, no devices will be able to join the network.
  • Page 67 TH-PC-M Thermostat Integrator Setup Screens • Device 1-20 Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Comm. status Wireless Device X - Communication Status Default value: Not paired Shows if device is communicating with Controller Read Only Not paired: Device not paired MSI212-402 Online: Device paired and online Invalid: Device was paired and Controller detected a communication error...

  • Page 68: Temperature Alarms Configuration

    TH-PC-M Thermostat Integrator Setup Screens • Temperature Alarms Configuration Temperature Alarms Configuration The Temperature Alarms Configuration screens show the values that trigger an alarm only for Zigbee wireless sensors with temperature measurement. Parameter Details Configuration Parameters Default Value Significance and Adjustments Enable Temperature Alarm Enabled Default value: Off...

  • Page 69: Alarms

    TH-PC-M Thermostat Integrator Setup Screens • Alarms Alarms The Alarms screen shows data for paired Zigbee wireless devices. Parameter Details Configuration Parameters Default Value Significance and Adjustments Low battery Low Battery Alarm Default value: Off Shows if any wireless paired device has a low battery status (On) or no Read Only paired device has low battery (Off).

  • Page 70: Lua Screens

    TH-PC-M Thermostat Integrator Setup Screens • Lua Screens Lua Screens The Lua settings screens show information about any custom Lua script uploaded to the Controller. Lua scripts are not programmable on the Controllers. Lua scripts can be uploaded to the Controller via the Uploader Tool or via BACnet.
  • Page 71 TH-PC-M Thermostat Integrator Setup Screens • Lua Generic Parameters Lua Generic Parameters The Lua settings include twelve generic parameters that do not have a specific function or pre-configured functions. These parameters can be used in custom Lua scripts to store a value. They are also user configurable in their default state, but when assigned a value via a Lua script or via BACnet (Priority 1-16), they become read only (not configurable locally by the user) and the display color of the parameter changes to red.
  • Page 72 TH-PC-M Thermostat Integrator Setup Screens • Lua Generic Parameters Parameter Details (cont.) Configuration Parameters Default Value Significance and Adjustments Parameter K (AV229) Lua Parameter K (AV229) Default value: 0 The value of this parameter depends on what is assigned to it from a BAS or AV229 Lua script.

  • Page 73: Appendix

    TH-PC-M Thermostat Appendix • Appendix A: MP3 Series Field Wiring Appendix MP3 Series Field Wiring Single Heater, Single Thermostat Connection THERMOSTAT CONSTANT 120V 1 2 3 4 7 8 9 10 R BL BR GY REMOTE SENSOR IF USED CONFIGURE 13 14 15 16 17 18 20 21 22 23 24 THERMOSTAT...
  • Page 74 TH-PC-M Thermostat Appendix • Appendix A: MP3 Series Field Wiring 40 VA TRANSFORMER 120V...
  • Page 75 TH-PC-M Thermostat Appendix • Notes Notes...
  • Page 76 TH-PC-M Thermostat © 2024 Detroit Radiant Products Co. 21400 Hoover Road • Warren, MI 48089 Phone: (586) 756-0950 Fax: (586) 756-2626 www.detroitradiant.com • sales@drp-co.com Printed in U. S. A.
