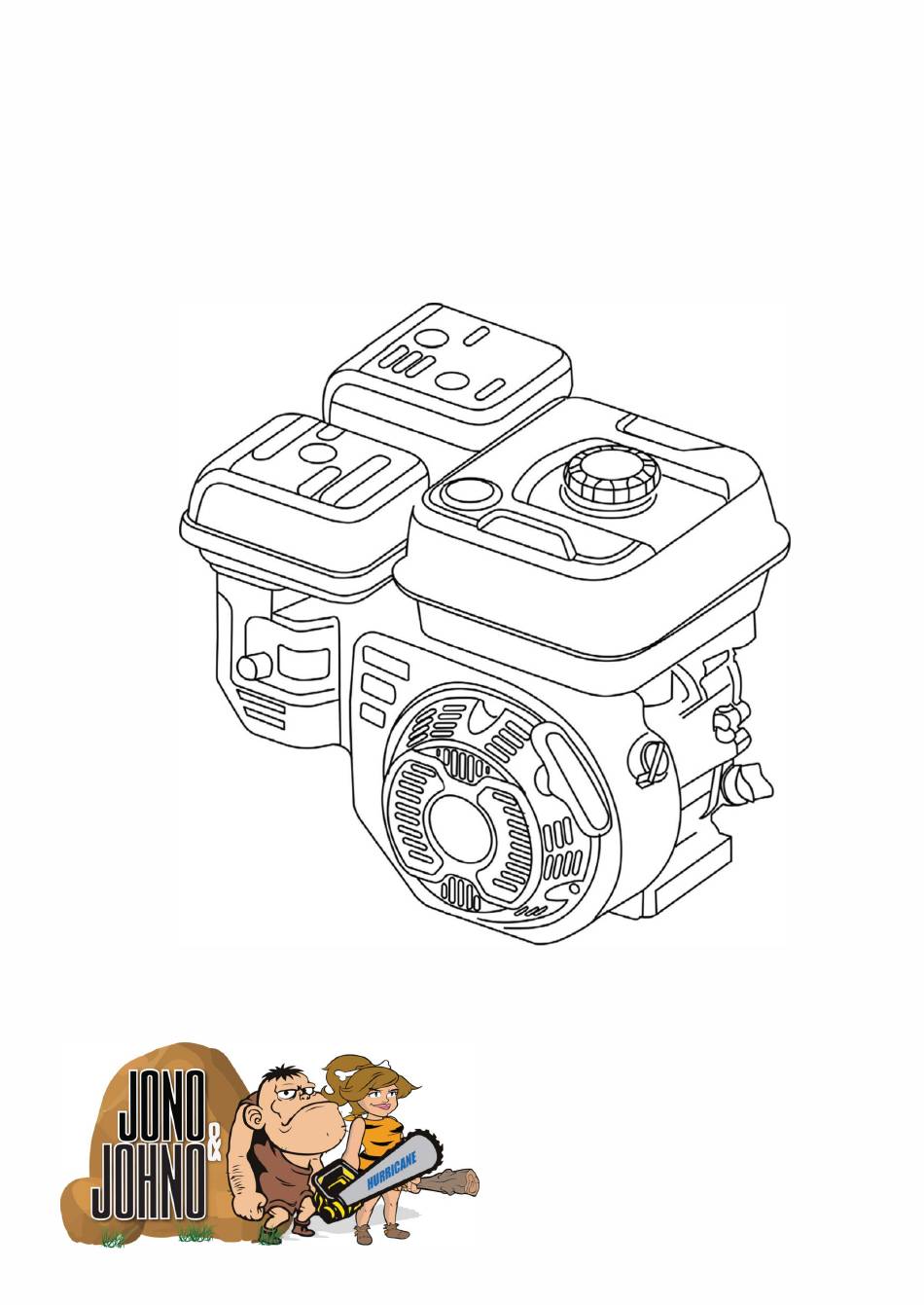

- Page 1 JPE ENGINE OWNER'S MANUAL LOCATED AT: 61 Scott St, Warracknabeal I (03) 5394 1020 31 Carngham Road, Delacombe (03) 5303 0264 OR FOR ONLINE ORDERS www.chainsawspares.com.au (03) 5303 0263...
-
Page 3: Table Of Contents
CONTENT ENGINE SAFETY ............................INTRODUCTION ............................Component Identification ......................Specification ............................OPERATIONS .............................. Pre-operation Check ........................1.Engine Oil ..........................2.Air Cleaner .......................... 3.Fuel ............................Operation ............................. 1.Start the engine ........................2.Stop the engine ........................TRANSPORTING&STORAGE ........................ SERVICE ................................. Maintenance .......................... - Page 4 Thank you for purchasing a Jono & Johno engine. All the information in this publication is based on the latest product information provided at the time of printing. We reserves the right to make changes at any time without notice and without incurring any obligation.
-
Page 5: Engine Safety
ENGINE SAFETY Engines are designed to give safe and dependable service if operated according to instructions. Read and understand this Owner's Manual before operating the en- gine. Failure to do so could result impersonal injury or equipment damage. To prevent fire hazards and to provide adequate ventilation, keep the engine at least 1 meter away from buildings and other equipment during operation. - Page 6 ENGINE SAFETY Pay attention to these labels before you operate the engine. GASOLINE WARNING LABEL Key to legend Reading instructions Caution Fire prevention Anti-explosion Antivirus Anti-scald...
-
Page 7: Introduction
INTRODUCTION Component Identification... -
Page 10: Operations
OPERATIONS Pre-operation Check 1. Engine Oil Use 4 -stroke oil. SAE 10W-30 is recommended for general, all-temperature use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indi-cated range. Remove the oil filler cap and wipe the dipstick clean. Insert the dipstick into the oil filler neck, but do not screw it in. -
Page 11: Fuel
OPERATIONS Check the air cleaner elements to be sure they are clean and in good condition. Clean or replace the elements if necessary. 3.Fuel Your engine is designed to use any gasoline that has a pump octane number of 86 or higher, or that has a research octane number of 91 or higher. -
Page 12: Operation
OPERATIONS Fuel Tank capacity 3.6 L JPE65 3.6 L JPE7 3.6 L JPE75 JPE9 6.5 L JPE13 6.5 L JPE16 6.5 L JPE18 GASOLINES CONTAINING ALCOHOL If you decide to use a gasoline containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by . -
Page 13: Start The Engine
OPERATIONS Start The Engine FUEL VAVEL Turn the fuel valve to the ON position. NOTICE The choke may not be needed if the engine is warm or the air temperature is high. CHOKE LEVER Move the choke lever to the CLOSE position. ... -
Page 14: Stop The Engine
OPERATIONS Electric start Tu r n t h e e n g i n e s w i t c h t o t h e “START” position, and hold it there until the gasoline engine starts. When the engine starts, allow the engine switch to return to the “ON”... -
Page 15: Transporting&Storage
TRANSPORTING &STORAGE To avoid severe burns or fire hazards, let the engine cool before transporting it or storing it indoors. When transporting the engine, turn the fuel valve to the OFF position and keep the engine level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite. -
Page 16: Service
SERVICE Maintenance Periodic maintenance and adjustment is necessary to keep the engine in good operating condition. Perform the service and inspection scheduled in the follow ing table. WARNING Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. -
Page 17: Change Oil
Remove the oil filler cap and drain plug to drain the oil. Install the drain plug, and tighten it securely. Refill with the recommended oil, and check the oil level. ENGINE OIL Engine Oil capacity 0.55 L OIL FILLER CAP JPE65 0.55 L JPE7 LEVEL 0.55 L JPE75 DRAIN PLUG 0.95 L... -
Page 18: Air Cleaner Service
SERVICE 2.Air Cleaner Service A dirty air cleaner will restrict air flow to the carburetor. To prevent carbu- retor malfunction, service the air cleaner regularly. Service more frequently when operating the engine in extremely dusty areas. WARNING Never use gasoline or low flash point solvents for cleaning the air cleaner ele- ment. -
Page 19: Sediment Cup Cleaning
Remove the spark plug cap, and use a spark Spark plug types: plug wrench to remove the plug. JPE65 Visually inspect the spark plug. Discard it if the JPE7 insulator is cracked or chipped. Clean the spark plug with a wire brush if it is to be reused. -
Page 20: Spark Arrester Maintenance (Optional Parts)
SERVICE WARNING If the engine has been running, the muffler will be very hot. Be careful not to touch the muffler. NOTE: If installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer. If reinstalling a used spark plug, tighten 1/8-1/4 turn after the spark plug seats to compress the washer . -
Page 21: Troubleshooting
SERVICE Warranty Service Trouble Shooting Please contact Jono & Johno for any warranty questions. PROBLEM POSSIBLE CAUSES PROBABLE SOLUTIONS Engine will not start 1.Out of fuel 1.Add fuel to tank 2.Gasoline engine: set 2.Engine flooded choke( if equipped) to OPEN/RUN position, and continue to pull starter handle. -
Page 22: Warranty Service
SERVICE Warranty Service Please contact Jono & Johno for any warranty questions. - Page 24 LOCATED AT: 61 Scott St, Warracknabeal (03) 5394 1020 31 Carngham Road, Delacombe (03) 5303 0264 OR FOR ONLINE ORDERS www.chainsawspares.com.au I (03) 5303 0263...
