JJetNet 6228G Series Industrial 28G Full Gigabit Managed Ethernet Switch
Quick Installation Guide V1.0

Overview

e JetNet 6228G Series is a 19-inch Industrial 28G Full Gigabit Managed Ethernet Switch
equipped with 24*10/100/1000M RJ-45, 4*100/1000M SFP ports.
Model Name Description
Industrial 28-port Full Gigabit with 4-port SFP Managed
JetNet 6228G-4F-2DC
Ethernet Switch, Dual DC Input
Industrial 28-port Full Gigabit with 4-port SFP
JetNet 6228G-4F-AC
Managed Ethernet Switch, AC input
Industrial 28-port Full Gigabit with 4-port SFP Managed
JetNet 6228G-4F-AC-2DC
Ethernet Switch, AC, Dual DC Input

Package Check List

 e Rackmount Managed Ethernet Switch
 Console cable
 Rackmount kit
 Power Cord (Depend on Country, JetNet 6228G-2DC is no power cord)
 QIG

Interface Introduction

Dimension
JetNet 6228G Industrial 28G Full Gigabit Managed Ethernet Switch dimension (W x H x D)
is 431mm(W) x 43.8mm (H) x 375mm (D).
431.00
482.60
465.00
korenix
1 3 5 7 9 11 13 15 17 19
JetNet 6228G
LNK/ACT
Console AC Alarm
DC1 R.S.
USB DC2 Sys
2 4 6 8 10 12 14 16 18 20
JetNet 6228G_AC_2DC

Front-Panel Components

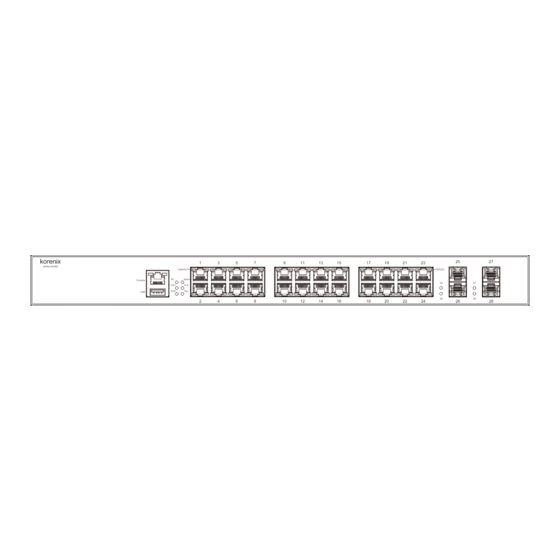

e front panel includes RJ-45 based RS-232 console port, USB port, System & port LEDs,
Gigabit Ethernet port Interfaces and Gigabit SFP port Interfaces.
korenix
JetNet 6228G

Back-Panel Components

e back panel of the JetNet 6228G Industrial 28G Full Gigabit Managed Ethernet Switch
consists of AC power input, DC power input and relay output depend on di erent Model.
JetNet 6228G-4F-2DC:
AC
100-240VAC, 50-60Hz,0.3A
JetNet 6228G-4F-AC:
AC
100-240VAC, 50-60Hz,0.3A
JetNet 6228G-4F-AC-2DC:
AC
100-240VAC, 50-60Hz,0.3A
Model Name
JetNet 6228G-4F-2DC
JetNet 6228G-4F-AC
JetNet 6228G-4F-AC-2DC

LED Indicators

LED
PWR
Alarm
R.S.
Sys
P1-P24 RJ-45
LNK/ACT
P1-P24 RJ-45
Speed
43.80
P25-28 SFP
21 23 25 27
LNK/ACT
SPEED
25 27
26 28
22 24 26 28
1 3 5 7 9 11 13 15 17 19 21 23
LNK/ACT
AC Alarm
Console
DC1 R.S.
DC2 Sys
USB
2 4 6 8 10 12 14 16 18 20 22 24
Alarm
1A@24V 1A@24V
Alarm
1A@24V 1A@24V
Alarm
1A@24V 1A@24V
Back-Panel Components
2 DC power inputs and 1 relay output.
1 AC power input and 1 relay output.
1 AC power input, 2 DC power inputs and 1 relay output.
Color Function
Green Power (AC, DC1, DC2) on
Red When relay output is on, and events have occurred.
Green MSR is in normal state
Yellow MSR is in abnormal state
Off MSR function is not active
Blinking Incorrect configuration of MSR, ex. ring not connected to
Green ring port
Blinking
The break has been detected in one of the ring ports
Yellow
Green System is on
Blinking
System is updating.
Green
Green The ethernet port is active
Blinking
The ethernet port is transmitting/receiving data
Green
Off The ethernet port is disconnected
Yellow 1000Mbps
Off 10/100Mbps or ethernet port is disconnected
Green The fiber port is active
Blinking
The fiber port is transmitting/receiving data
Green
The fiber port is disconnected
Off

Installation

Mount The Switch to 19' Rack
1. Attach the brackets to the device by using the screws provided in the Rack Mount kit.
25 27
SPEED
2. Mount the device in the 19'' rack by using four rack-mounting screws provided by the rack
25 27
26 28 manufacturer.
26 28
3. When installing multiple switches, mount them in the rack one below the other.
Note: Check if the rack environment temperature conforms to the speci ed operating
temperature range. Do not place any equipment on top of the switch and please
properly grounded.
DC1 DC2
+ +
18-75VDC,1.0A 18-75VDC,1.0A
DC1 DC2
+ +

Power The Unit and Connect to Network Cable

AC Power Input: connect the attached power cord to the AC power input connector, the
18-75VDC,1.0A 18-75VDC,1.0A
available AC power input is range from 100-240VAC.
DC Power Input: the suggested power input is 18-75VDC. Follow below steps to wire JetNet
DC1 DC2
+ +
6228G redundant DC power inputs.
18-75VDC,1.0A 18-75VDC,1.0A 1. Insert positive and negative wires into V+ and V- contacts respectively of the terminal block
connector.
2. Tighten the wire-clamp screws to prevent DC wires from being loosened.
3. DC1 and DC2 support polarity reverse protection functions.

Wiring Relay Output

JetNet 6228G series provides one relay output.
normal operation and will close for fault conditions.
which can be con gured in JetNet 6228G.

Wiring Earth Ground

To ensure the system will not be damaged by noise or any electrical shock, we suggest you to
make exact connection with JetNet 6228G with earth ground.
For AC input, the 3 pin include V+, V- and GND.
earth ground.
For DC input, loosen the earth ground screw by screw drive; then tighten the screw after earth
ground wire is connected.
AC
100-240VAC, 50-60Hz,0.3A
e relay contacts are energized (open) for
e fault conditions include some events
Alarm
1A@24V 1A@24V
e GND pin must be connected to the
Ground Ground
DC1 DC2
+ +
18-75VDC,1.0A 18-75VDC,1.0A
