Crossray TCR 900 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Thermofilm Australia Pty. Ltd 8 Lakeview Drive Scoresby, Vic. 3179 www.crossray.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCR 900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crossray TCR 900

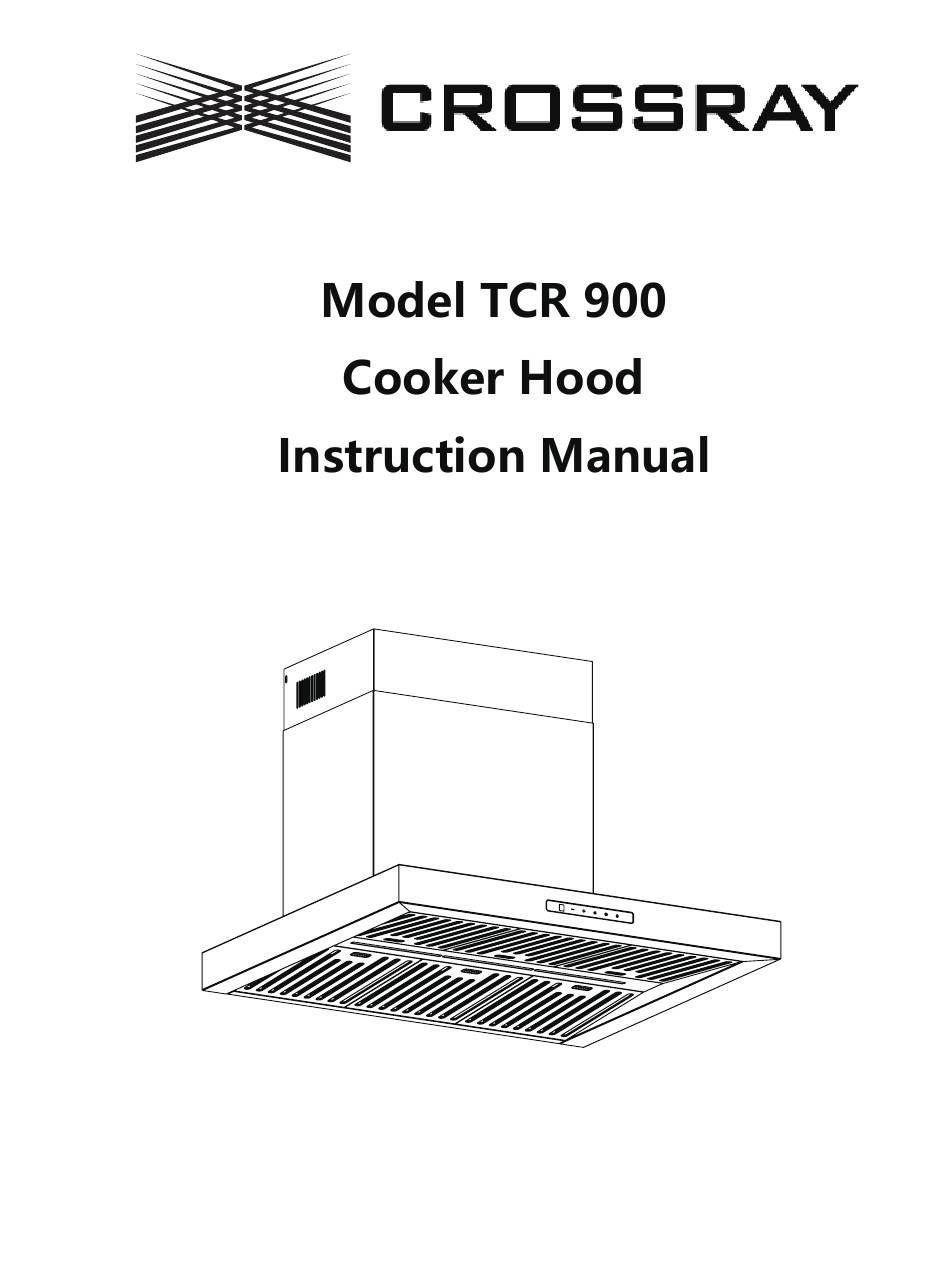

  • Page 1 Thermofilm Australia Pty. Ltd 8 Lakeview Drive Scoresby, Vic. 3179 www.crossray.com.au...
  • Page 3 monoxide poisoning. After installation of a cooker hood or other cooking fume extractor, the operation of open o not try to use the cooker hood flued gas appliances should be tested without the grease filters or if the filters by a competent person to ensure that are excessively greasy! back flow of combustion gases does o not install above a cooker with a...
  • Page 4 arning: Before obtaining access to terminals, all supply circuits must be disconnected. f the voltage rating of the lamp is less than the rated voltage of the appliance, the voltage rating of the lamp shall also be marked on or near the lamp holder.
  • Page 5 then cover flame e.g. with a lid or a steam cleaner is not to be used. fire blanket. EVER try to extinguish a fire with water, but switch off the appliance and If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.
  • Page 6 1. Before installation, turn the unit off and unplug it from the outlet. 2. The cooker hood should be placed at a distance of 60~75cm above the cooking surface for best effect.See pic 1. Pic 1 inside chimney bracket outside chimney bracket hook Pic 2 3.
  • Page 7 4. Install the v-flap to the outlet and fix the expansion to the outlet with a cable tie. See pic 3. And the put the hood on the hook. See pic 4. expansion pipe Outlet Pic 3 Pic 4 5. Fasten 2 pcs ST4*30mm screws to the two safety holes on the cavity and fix the cooker hood.
  • Page 8 Pic 7 The following rules must be strictly followed to obtain optimal air extraction: Keep expansion pipe short and straight. Do not reduce the size or restrict the expansion pipe. When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.
  • Page 9 WARNING: For safety reason, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. LED touch button LED touch control has five buttons, see picture.
  • Page 10 4.3 Press (Increase) button again when it is working at middle speed, the cooker hood works at high speed and the LED display will display “3”. 4.4 Press (Increase) button again when it works at high speed, the cooker hood will still work at high speed.

  • Page 11: Stainless Steel

    The distance between the Refit the cooker hood to the Insufficient suction cooker hood and the gas top is correct distance. too far The Cooker hood The fixing screw is not tight Tighten the hanging screw and inclines enough make it horizontal. NOTE: Any electrical repairs to this appliance must conform to your local, state and federal laws.Please contact the service centre if in any doubt before...
  • Page 12 GREASE MESH FILTERS The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush it gently with a soft brush. Do not apply too much pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils.

  • Page 13: Bulb Replacement

    NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered. BULB REPLACEMENT Important : The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance.
  • Page 14 This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
