AUX Input Adapter

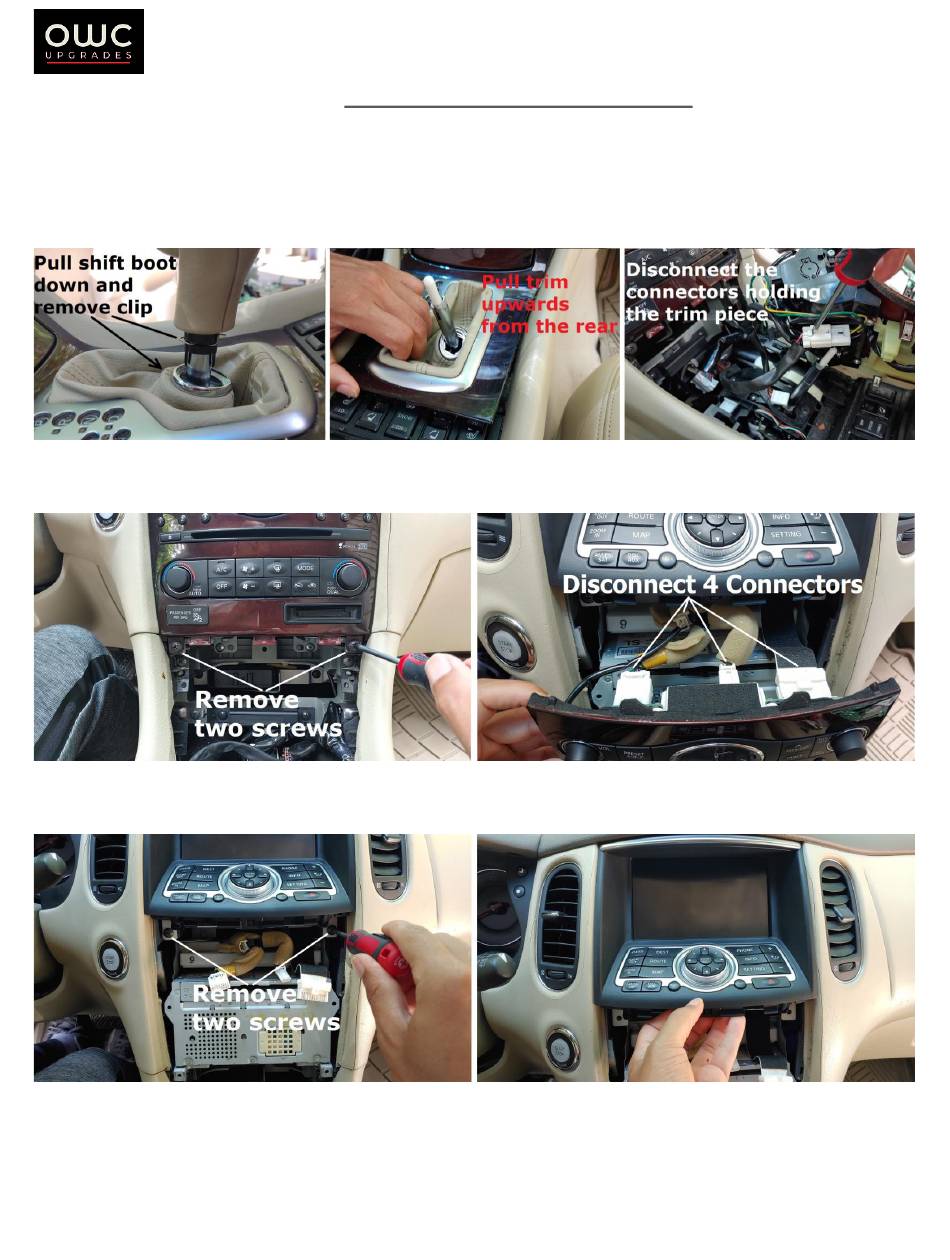

1. Apply the parking brake and shift the car into drive (automatic cars) or neutral (manual cars).
2. Ensure the car is OFF and then disconnect the negative terminal on the car battery.
Remove the shift knob and the surrounding trim with the shift boot. Then disconnect the two
connectors beneath the trim in order fully remove it.
3. Remove the 2 screws beneath the Faceplate/AC Climate Panel, and then pull the bottom of it
toward you to release it, and then remove it after disconnecting the 4 connectors behind it.
4. Remove the 2 screws below the bezel/control panel buttons. Then gently wiggle & pull it toward
you to remove that section.
5. Remove the 2 screws on the metal brackets below the display screen and then remove the
screen assembly after disconnecting the 3 connectors behind it.
Installation & Start-Up Guide
