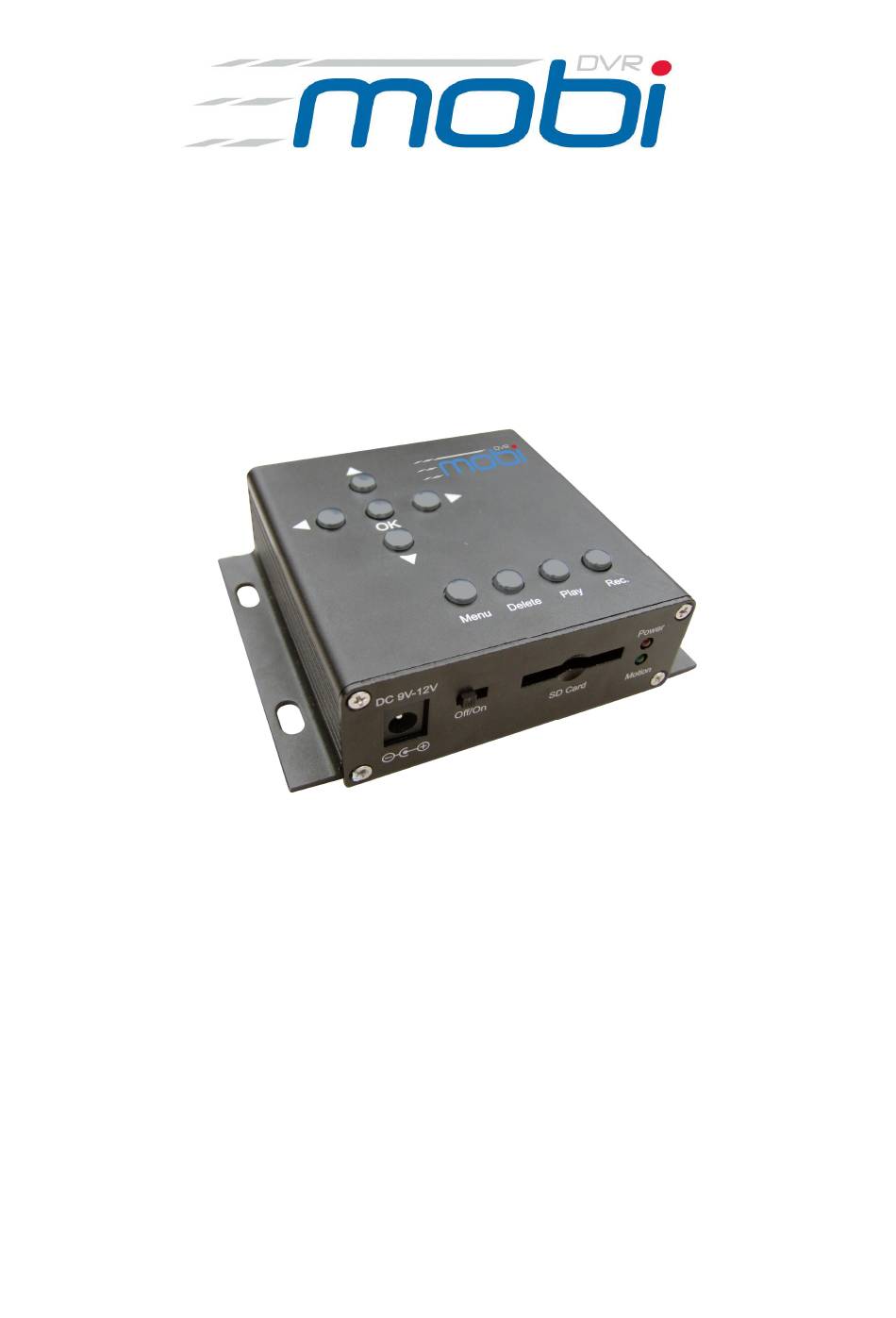

- Page 1 The new Mini Mobile Digital Video Recorder Model MOB100 Features: Ideal for Vehicles 12v DC Input 150mA Regulated Lower Power Consumption SD card Recording Schedule & Motion Recording Size only 105 x 84 x 29mm (case only) Version 3.1 Last Revised 08/12/2011...
-
Page 2: Table Of Contents
Contents Page Safety Precautions Features Name & Function of Each Part Front Keyboard Top Input & Output Connections Bottom Controls Basic Configuration Installation Menu Settings System Setting Date/Time Setting Language Video System Recording Record Settings Motion Detection Sensitivity Motion Detection Area Setting Recording Time Frame Setting Schedule Setting... -
Page 3: Safety Precautions
Safety Precautions Do not Plug and unplug the power cord, it may result in product malfunction. Do not install the product in an environment where there is high humidity. Do not use this product in wet weather. Do not install this DVR directly into a vehicle cigarette lighter socket. Do not drop the product or subject it to physical shock. -
Page 4: Features
Features The DVR supports NTSC or PAL video system. The DVR uses MPEG4 and supports one channel video and one channel audio recording and playback operation. Allows deletion of current file in playback mode. Audio/Video data is recorded directly on the SD or SDHC card up to 16Gb. DVR uses a simple playback method to a PC using proprietary software or Windows Media Player and DivX codec. -
Page 5: Name & Function Of Each Part
Name & Function of Each Part FRONT KEYBOARD Move Up: Turn on Voice Move Down: Turn Down Voice Move Left Move Right: Switch Channel 1 to Channel 2 Confirm: Preview: Start/Stop Motion Detection Menu: Return Delete:Delete this file, video or picture In Playback mode Play: Playback, return Rec.: Record directly... -
Page 6: Basic Configuration
Basic Configuration Connect DVR Video Out to composite video monitor using BNC cable. Connect DVR Audio Out to audio amplifier or monitor amplifier using BNC cable (optional). Connect camera to Video In using BNC connection and power camera. Connect microphone to Audio In using BNC connection and power Microphone. -
Page 7: Installation Menu Settings
Installation Menu Settings Press the Menu button to enter the software. The following display will be shown: Select using arrow keys & press OK to enter SYSTEM SETTING Select using arrow keys & press OK to enter Date/Time Setting Last Revised 08/12/2011... -
Page 8: Language
Date and Time Setting Set correct date and time using arrow keys and press OK to return to menu. Set Language by selecting using arrow keys & pressing OK. Language Press OK to set and return to previous menu. Last Revised 08/12/2011... -
Page 9: Video System
Select to set Video System using arrow keys and press OK. Video System Video System selects PAL or NTSC mode. Ensure PAL is selected in the UK. Press OK to return to menu and then press Menu again to return to standby mode. Last Revised 08/12/2011... -
Page 10: Recording
Recording Record Settings Press the Menu button to enter the software menu. Select for Recorder Settings using arrow keys and pressing OK button. Recording Time Motion Detection Frames per Second Sensitivity & Area Record Overwrite Schedule Setting Pre. Record Recording Type Time Stamp Motion Detection Sensitivity Press... -
Page 11: Motion Detection Area Setting
Motion Detection Area Setting Press the down arrow key to highlight the Area Setting. Everything within the red box will be in the motion detect area. Pressing the arrow keys will set the area. Press delete key to move area to position required. -
Page 12: Schedule Setting
Schedule Setting Select Schedule Setting and press OK. You may select up to 4 time slot groups to allow start/stop recordings automatically. Each of the four groups are selected using arrow keys and then press OK to select highlighted group. You can select a Once Only selection or Weekly selection and can set the record time from and to. -
Page 13: Time Stamp
Time Stamp Select to set the Time Stamp option. This will display the time stamp on recorded files. It is recommended to set this on. Recording Type Select to set Recording Type. You have two options. One is Video mode and the other is STILL frame mode. -
Page 14: Running Manual Record
If there is movement within the red box area and the sensitivity setting is adequate recording will start and the motion detect displays in red. Running Manual Record To set manual recording just press the REC button. To stop recording just press the REC button again. -
Page 15: Playback
Playback Enter the menu. You will need to switch off recording to enter the menu by pressing the REC key. Select to enter the Playback menu. The Playback menu will display pages of date files. Select date with up or down arrow key and press the OK button. -
Page 16: System Utilities
System Utilities To enter the System Utilities stop recording by pressing the REC button and then press Menu button. Format Utility Select and press the OK button. The following menu is displayed: Select using the arrow keys and press the OK button to enter the Format program. -
Page 17: Recording Times & Technical Specifications
Technical Specifications The SD or SDHC card can be played back in a PC using Windows Media Player and a DivX video codec. Alternatively a proprietary player can be used. Model MOB100 Format MPEG4 video for AVI Resolution 640 x 480...
