Summary of Contents for Proma MyOhmic PRO

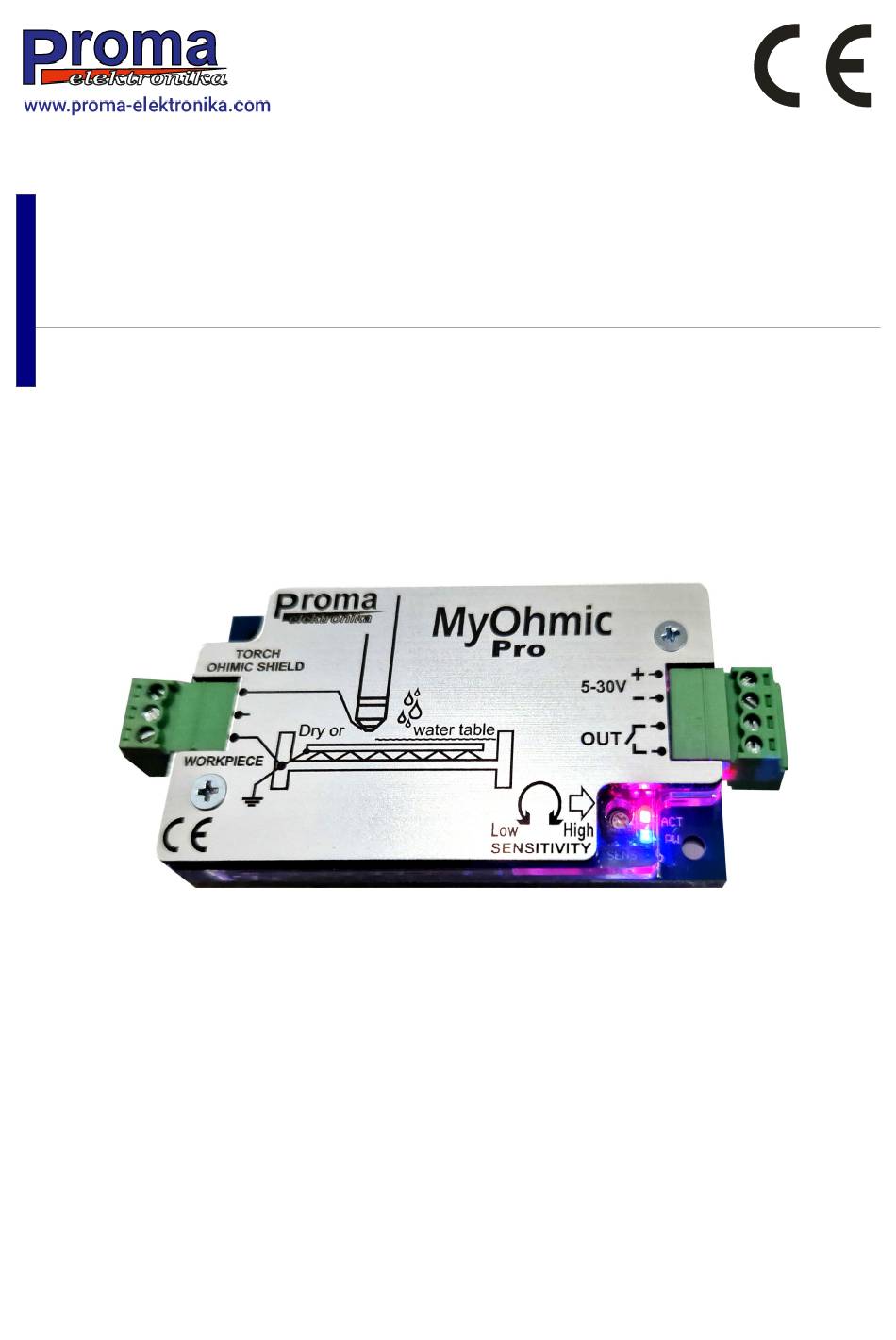

- Page 1 MyOhmic PRO Touch Material Detection Sensor - Professional Version User manual v1.0...
- Page 2 MyOhmic PRO User manual Thank you for choosing our product. This manual will assist you in the proper operation and correct use of the described device. The information provided in this manual has been prepared with the utmost care by our specialists and serves as a product description without assuming any liability under commercial law.
- Page 3 MyOhmic PRO User manual Safety Principles • Before the initial operation of the device, familiarize yourself with this user manual. • Before the initial operation of the device, ensure that all cables have been connected correctly. • Ensure proper operating conditions in accordance with the device specifications.
- Page 4 MyOhmic PRO User manual 2.2 Technical Specification Parameters: Supply Voltage : 5-30V DC Current Consumption : 2-50mA Max Measurement Voltage : 15V DC Output Type : Relay NO (Normally Open) Output Load Capacity : 30V DC / 200mA max Sensitivity Adjustment...
- Page 5 MyOhmic PRO User manual Correct power connection is indicated by the blinking of the blue LED labeled as PW (POWER). 3.2 Measurement Circuit Connection The system detects the closure of the contacts described as TORCH OHMIC SHIELD (isolated shield of the torch nozzle) and WORKPIECE (Material / grounded machine structure).
- Page 6 MyOhmic PRO User manual CAUTION!!! The device is protected against the occurrence of high voltage inside the plasma torch in the event of torch failure, incorrect assembly of consumables, moisture, or the ingress of contaminants, etc. Use an OHMIC measurement cable rated for a minimum of 400V to avoid potential insulation breakdown.
- Page 7 MyOhmic PRO User manual The CNC controller input should be configured as a material detection input. For example, in the Mach 3 program, you can configure the input as PROBE. If the signal correctly reaches the program ( Digitize signal) when the torch touches the material (if necessary, you may need to reverse the "Active Low"...
- Page 8 If you have any questions, concerns, or feedback regarding the quality of our products, please do not hesitate to reach out to our technical support team at proma-elektronika.com . We value your satisfaction and are here to assist you. Thank you for entrusting Proma-Elektronika with your needs. We look forward to continuing to serve you with excellence.
