QUICK START

INSTALLATION

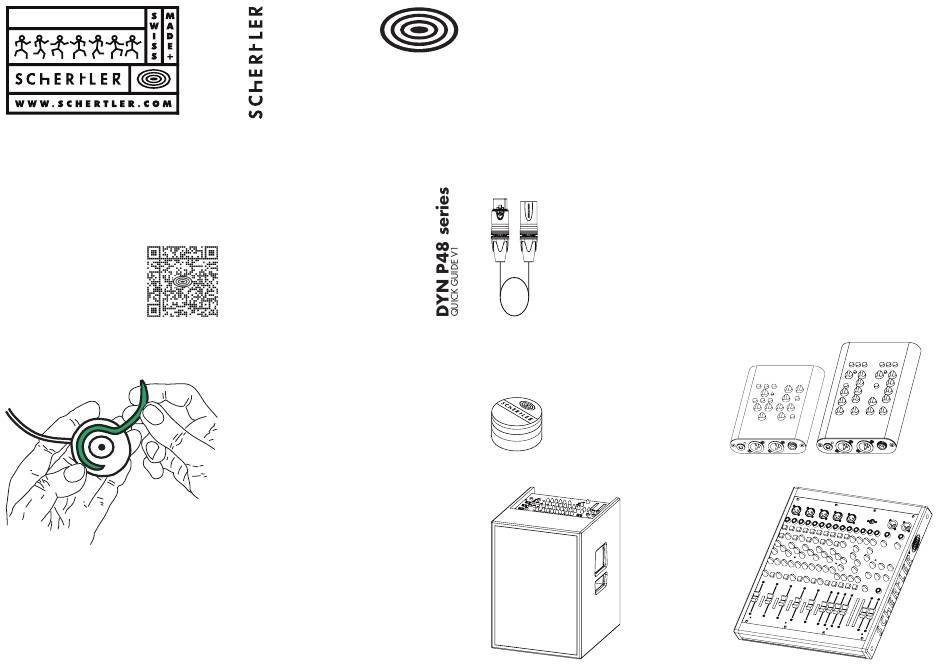

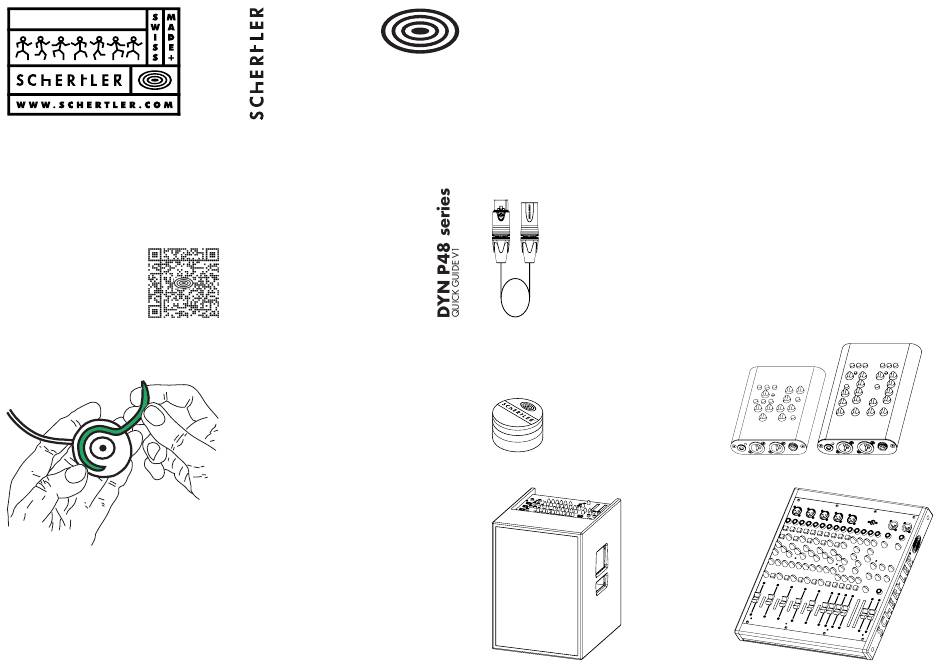

Use the provided GREEN PUTTY to install the pickup
on the instrument: with a little piece of putty, form a
ball of approximately 8 mm; "work" the ball to
shape a "worm" of about 6 cm and close a ring to
fit the bottom side of the microphone; fit the DYN on
the instrument by pressing it firmly.
When the microphone has been correctly installed,
you will feel that the center spot is making contact
with the instrument.
to open
THANK YOU
FOR
CHOOSING
SCHERTLER

CONNECTION

Just like any condenser microphone, connect the
DYN P48 to a mic channel of an acoustic amp,
preamp or mixer.
DYN P48 microphones require phantom power to
work, so remember to activate it once the pickup is
plugged in.
If needed, the cable lenght can be extended using
a common XLR microphone cable.
USER GUIDE available at www.schertler.com

RELATED PRODUCTS

CA XF XM
XLR cable
GREEN
PUTTY
ACOUSTIC
Amps
YELLOW
Preamps
ARTHUR
Mixer
