Summary of Contents for Charger Water Specialist EE

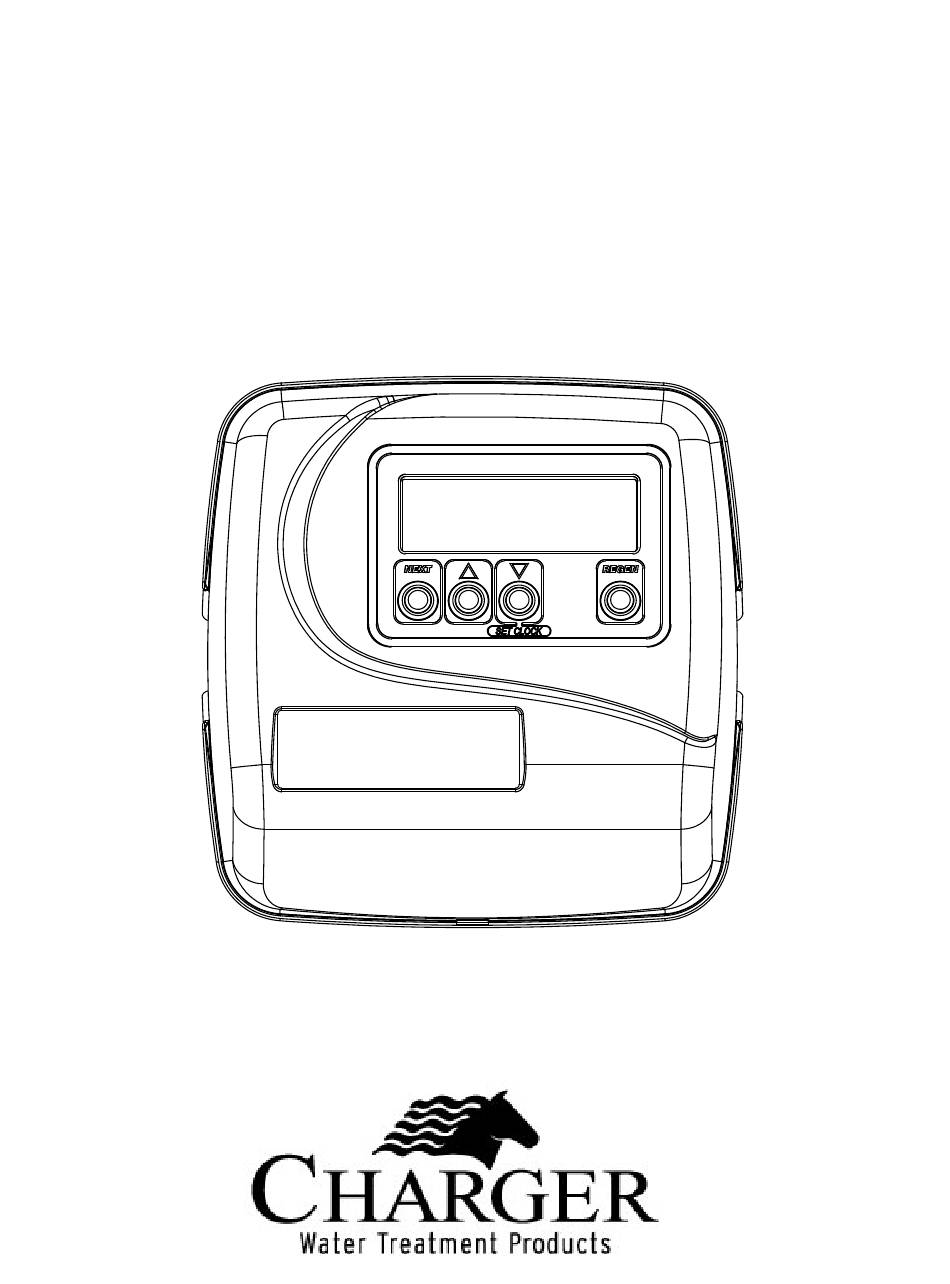

  • Page 1 Water Specialist EE Control Valve Programming Manual...
  • Page 2 Page 2 EE Manual...
  • Page 3: Table Of Contents

    EE Manual Page 3 Table of Contents Front Cover and Drive Assembly ....................... 4 Regeneration and Error Screens ......................... 5 Button Operation and Function ......................... 5 User Displays .............................. 6 Configuration Settings ..........................7 OEM Softener System Setup ........................11 Setting Options Table ..........................
  • Page 4: Front Cover And Drive Assembly

    Page 4 EE Manual Front Cover and Drive Assembly Drawing No. Order No. Description Quantity V3175EE-01 WS1EE FRONT COVER ASSEMBLY V3107-01 WS1 MOTOR V3002 WS1 DRIVE BRACKET ASY W/ MOTOR V3408EE-05BOARD WS1THRU2 EE5 20PIN PCB REPLC V3110 WS1 DRIVE GEAR 12X36 V3109 WS1 DRIVE GEAR COVER V3186-06...
  • Page 5: Regeneration And Error Screens

    EE Manual Page 5 Regeneration and Error Screens Regen Screen Displays the time remaining in the current cycle. Press REGEN to advance to the next cycle. Error Screen Alternated flashing Err and error code every 3 seconds. To clear, disconnect the power supply at the PC board and reconnect, or press NEXT and REGEN simultaneously for 3 seconds.
  • Page 6: User Displays

    Page 6 EE Manual User Displays General Operation: When the system is operating, one of 5 displays may be shown. Press NEXT to alternate between the displays shown below. User 1 Typical user display. Shows volume remaining to regeneration. This screen will not be viewed if the control is set for time-clock operation.
  • Page 7: Configuration Settings

    EE Manual Page 7 Configuration Settings Step 1CS – Press NEXT and ▼ simultaneously for 5 seconds and release. Then, press NEXT STEP 1CS and ▼ simultaneously for 5 seconds again and release. If screen in Step 2CS does not appear in 5 seconds, the lock on the valve is activated.
  • Page 8 Page 8 EE Manual STEP 5CS Step 5CS – ALT MAV Output: Use ▼ or ▲ to select one of the following options: • nHbP: The control valve operates with a no hard water bypass. • SEPS: The control valve has a separate source during the regeneration cycle.
  • Page 9 EE Manual Page 9 Configuring the Control Valve to Act as an Alternator: Prior to starting the programming steps, connect the communication cable to each control valve board’s 3-pin connector labeled COMM CABLE. Also connect the meter cord to either control valve to the 3-pin connector labeled METER. Softener Valve Programming Steps Set to ALT A Set to ALT b...
  • Page 10 Page 10 EE Manual WS2 Valve For Clack alternator systems using the WS2 valve, when NEXT is pressed after selecting ALT A or ALT B, a display will allow the user to set the length of pre-service rinse time for the standby tank just prior to returning to service.
  • Page 11: Oem Softener System Setup

    EE Manual Page 11 OEM Softener System Setup Step 1S – Press NEXT and ▼ simultaneously for 5 seconds and release. If screen in Step 2S STEP 1S does not appear, the lock on the valve is activated. To unlock, press ▼, NEXT, ▲, and REGEN in sequence, and try again.
  • Page 12 Page 12 EE Manual Step 7S(A) – Regeneration Trigger: Use ▼ or ▲ to select one of STEP 7S(A) the following options: • 28 day: Regeneration will be triggered by Day Override set in Installer Settings. • 7 day: Regeneration will be triggered on specific days of the week.
  • Page 13: Setting Options Table

    EE Manual Page 13 Setting Options Table Filters should only use shaded options Volume Regeneration Time Result Capacity Option Override Reserve capacity automatically estimated. AUTO NORMAL Regeneration occurs at the next regeneration time when volume capacity falls below the reserve capacity. Reserve capacity automatically estimated.
  • Page 14: Oem Filter System Setup

    Page 14 EE Manual OEM Filter System Setup Step 1F – Press NEXT and ▼ simultaneously for 5 seconds and release. If screen in Step 2CS STEP 1F does not appear, the lock on the valve is activated. To unlock, press ▼, NEXT, ▲, and REGEN in sequence, and try again.
  • Page 15 EE Manual Page 15 Step 6F – Relay Output: Use ▼ or ▲ to select one of the STEP 6F following options: • Time on: Relay activates a set time after the start of a regeneration and deactivates after a set period of time. The start of regeneration is defined as the first Backwash cycle or Dn Brine cycle, whichever comes first.
  • Page 16: Installer Display Settings: 7 Day Regeneration

    Page 16 EE Manual Installer Display Settings: 7 Day Regeneration Note: These displays will only appear if Volume Capacity is set to oFF and Regeneration Trigger is set to 7 day. Step 1I – Press NEXT and ▲ simultaneously for about 5 seconds and release. STEP 1I Step 2I –...
  • Page 17: Installer Display Settings: 28 Day Regeneration / Auto

    EE Manual Page 17 Installer Display Settings: 28 Day Regeneration / Auto Note: These displays will only appear if Volume Capacity is set to anything other than oFF or if Regeneration Trigger is set to 28 day. Step 1I – Press NEXT and ▲ simultaneously for about 5 seconds and release. STEP 1I Step 2I –...
  • Page 18: Diagnostics

    Page 18 EE Manual Diagnostics Step 1D – Press ▼ and ▲ simultaneously for 5 seconds and release. If screen in Step 2D does STEP 1D not appear, the lock on the valve is activated. To unlock, press ▼, NEXT, ▲, and REGEN in sequence, and try again.
  • Page 19 EE Manual Page 19 Step 9D – Reserve History, Last 7 Days: If the valve is set up STEP 9D as a softener, a meter is installed, and Volume Capacity is set to AUTo, this display shows the reserve capacity for each of the last 7 days.
  • Page 20 Page 20 EE Manual...
  • Page 21 EE Manual Page 21...
  • Page 22 Page 22 EE Manual...
  • Page 23 EE Manual Page 23...
  • Page 24 EMF at relay coil deactivation. PAGE 8: Add 1.5T instructions Remove progressive flow instructions Various grammatical and formatting changes throughout Charger Water Treatment Products 8150 N. Lehigh Ave, Morton Grove, IL 60053 www.chargerwater.com/FAQ Form No. V3435EE – 1/18/2024...
