AP201H GPON
ONT
User Manual
Revision B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP201H GPON ONT and is the answer not in the manual?

Questions and answers

Related Manuals for Ascent AP201H GPON ONT

Summary of Contents for Ascent AP201H GPON ONT

  • Page 1 AP201H GPON User Manual Revision B...
  • Page 2 User Manual Revision B Copyright © 2024 Ascent Communication Technology Limited. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Ascent Communication Technology is strictly forbidden. This document is produced to assist professional and properly trained personnel with installation and maintenance issues for the product.

  • Page 3: Table Of Contents

    AP201H GPON ONT Contents Chapter 1 Product Introduction ........................4 1.1 Product Description ........................4 1.2 Special Features ........................4 1.3 Technical Parameters ........................ 5 1.4 The use of Instructions ......................5 1.5 Panel Description ........................5 1.6 Indicator Description ......................... 5 1.7 PON Interface ..........................

  • Page 4: Chapter 1 Product Introduction

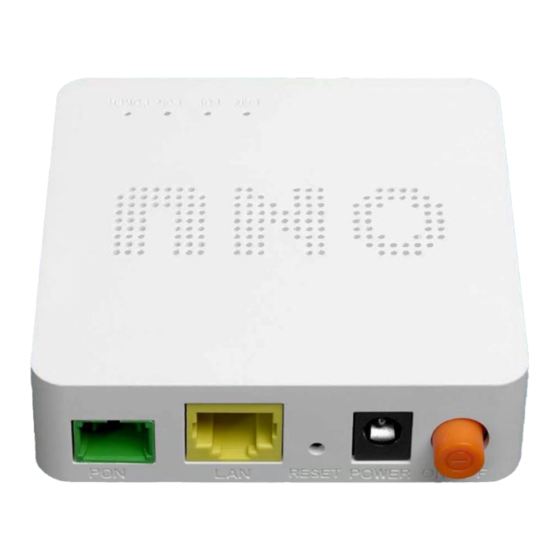

    ACT AP201H terminal is a combination of XPON optical network unit. It adopts high- performance ONU chip and low-power optical receiving technology, which can meet the needs of home optical fiber lo the home. Figure 1: AP201H GPON ONT 1.2 Special Features ...

  • Page 5: Technical Parameters

    AP201H GPON ONT 1.3 Technical Parameters Item Description Operating Temperature 0°C to 50°C Storage Temperature -40°C to 80°C Operating Humidity 10 % to 85 % Storage Humidity 10 % to 90 % (non-condensing) Input Voltage 12V/0.5A Power <6W Table 1: Technical Parameters 1.4 The use of Instructions...

  • Page 6: Pon Interface

    AP201H GPON ONT power. The ONU receives optical power normally. Green The network interface is connected. Blink The network port has data transmission The network interface is not connected. Table 4: Indicator Description 1.7 PON Interface Parameter Specification Up Optical...

  • Page 7: Chapter 2 Quick Installation

    AP201H GPON ONT Chapter 2 Quick Installation 2.1 Standard Packing Contents When you receive our products, please check carefully to make sure that our products whether have some defects or not. If something wrong with shippings, please contact carrier; other damage or lack of some parts, please contact with dealer.

  • Page 8: Unit Installation Adjustment

    AP201H GPON ONT be unavailable.  Cover all optic ports and connectors with protective cap to guard against dust and moisture when the fiber is not used.  Apply power to the unit. If the product has the power button, please push the power button before used.

  • Page 9: Chapter 3 Configuration

    By default, there are two user levels for management. Administration level user name is "superadmin", password is "superadmin". Normal user level user name is "admin", password is "ascent". The Administration account is able to access and modify all settings of ONU.

  • Page 10: Status

    AP201H GPON ONT 3.2 Status This part shows the main information of device and the active status about major services. 3.2.1 Device Information This page shows the basic information about device, such as Device Name, PON MAC information, Serial Number, Hardware Version information .
  • Page 11 AP201H GPON ONT 3.2.2.2 PON Information This page shows the PON information, including PON and GPON status. Figure 7: PON Status 3.2.2.3 PON Alarm Information This page shows the PON Alarm status. Figure 8: LAN Interface Information www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...

  • Page 12: Network

    AP201H GPON ONT 3.2.2.4 User Interface This page shows the register status of Ethernet Port1 attention, data send and receive information. Figure 9: VoIP Information 3.3 Network 3.3.1 WAN Basic Information 3.3.1.1 WAN Connection Information This page shows the WAN Connection including basic WAN Connection/PPP/IPV4 status.
  • Page 13 AP201H GPON ONT 3.3.2 LAN Basic Information 3.3.2.1 DHCP Server This page shows the LAN Interface information of DHCP basic server information. Figure 11: WLAN0 Basic Interface Information 3.3.2.2 RA Service Information This page shows the WLAN Interface information of Maximum/Minimum wait time information.
  • Page 14 AP201H GPON ONT 3.3.2.3 DHCP Server Information This page shows the WLAN Interface information of Maximum/Minimum wait time information. This page shows the LAN IP address/DNS Refresh time information. Figure 13: DHCP Server Information 3.3.2.4 Prefix Management This page shows the WAN Connection information.
  • Page 15 AP201H GPON ONT 3.3.2.5 Port Service This page shows the Port Service information. Figure 15: Port Service 3.3.2 Routing Information 3.3.2.1 Default Gateway This page shows the Default Gateway information of WLAN Connection. Figure 16: Default Gateway www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 16 AP201H GPON ONT 3.3.2.2 Static Routing This page shows the WAN Connection information. Figure 17: Static Routing 3.3.2.3 Routing Table This page shows the Routing Table information. Figure 18: Routing Table www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 16 of 33...
  • Page 17 AP201H GPON ONT 3.3.3 Port Configuration 3.3.3.1 Mode This page shows the port name and port mode. Figure 19: Mode 3.3.3.2 Port Isolation This page shows the port name and isolation status. Figure 20: Port Isolation www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 18 AP201H GPON ONT 3.3.3.3 Port Isolation This page shows the port name and rate limiting range. Figure 21: Rate Limiting 3.3.3.4 Flow Control This page shows the port name and flow control status. Figure 22: Flow Control www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...

  • Page 19: Security

    AP201H GPON ONT 3.3.3.5 MAC Configuration This page shows the MAC configuration information. Figure 23: MAC Configuration 3.4 Security 3.4.1 Firewall This page shows the Firewall configuration information. Figure 24: Firewall www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 19 of 33...
  • Page 20 AP201H GPON ONT 3.4.2 Service Control This page shows the IP and service information. Figure 25: Service Control 3.4.3 Mac Filter This page shows the Mac configuration information. Figure 26: MAC Filter www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 21 AP201H GPON ONT 3.5 Application 3.5.1 MultiCast 3.5.5.1 IGMP Mode This page shows the IGMP Mode selection. Figure 27: IGMP Mode 3.5.5.2 Basic Configuration This page shows the Basic Configuration. Figure 28: Basic Configuration www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 22 AP201H GPON ONT 3.5.5.3 Maximum Address Configuration This page shows the maximum number of addresses. Figure 29: Maximum Address Configuration 3.5.5.4 BPDU This page shows BPDU forwarding enable status. Figure 30: BPDU www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 23 AP201H GPON ONT 3.5.5.5 Port Forwarding This page shows port forwarding configuration information. Figure 31: Port Forwarding 3.6 Administration 3.6.1 User Management. This page shows administration user basic configuration information. Figure 32: User Management www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 24 AP201H GPON ONT 3.6.2 Login Timeout This page shows login timeout information. Figure 33: Login Timeout 3.6.3 Device Management 3.6.3.1 System Management This page shows reboot device and restore factory default settings operations. Figure 34: System Management www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 25 AP201H GPON ONT 3.6.3.2 System Management This page shows software upgrade operation. Figure 35: Software Upgrade 3.6.3.3 User Configuration Management This page shows user backup and restore configuration. Figure 36: User Configuration Management www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 26 AP201H GPON ONT 3.6.4 Diagnosis 3.6.4.1 Ping Diagnosis This page shows Ping Diagnosis configuration. Figure 37: Ping Diagnosis 3.6.4.2 Mirror Configuration This page shows Mirror Configuration of source and destination. Figure 38: Mirror Configuration www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 27 AP201H GPON ONT 3.6.5 Loopback Detection 3.6.5.1 Basic Configuration This page shows loopback basic configuration. Figure 39: Basic Configuration 3.6.5.2 Enable Configuration This page shows configuration enable data. Figure 40: Enable Configuration www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC...
  • Page 28 AP201H GPON ONT 3.6.5.3 VLAN Configuration This page shows vlan configuration data. Figure 41: VLAN Configuration 3.6.6 Led Control This page shows led control operation. Figure 42: Led Control www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 28 of 33...

  • Page 29: Help

    AP201H GPON ONT 3.7 HELP This page shows Help page. www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 29 of 33...
  • Page 30 AP201H GPON ONT www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 30 of 33...
  • Page 31 AP201H GPON ONT www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 31 of 33...
  • Page 32 AP201H GPON ONT Figure 43: Help www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 32 of 33...
  • Page 33 Phone: +84 243 795 5917 WEB: www.ascentcomtec.com EMAIL: sales@ascentcomtec.com Specifications and product availability are subject to change without notice. Copyright © 2024 Ascent Communication Technology Limited. All rights reserved. Ver. ACT_AP201H_GPON_ONT_Manual_V1b_Apr_2019 www.ascentcomtec.com Solutions Provider for FTTx, RFoG, and HFC Page 33 of 33...
