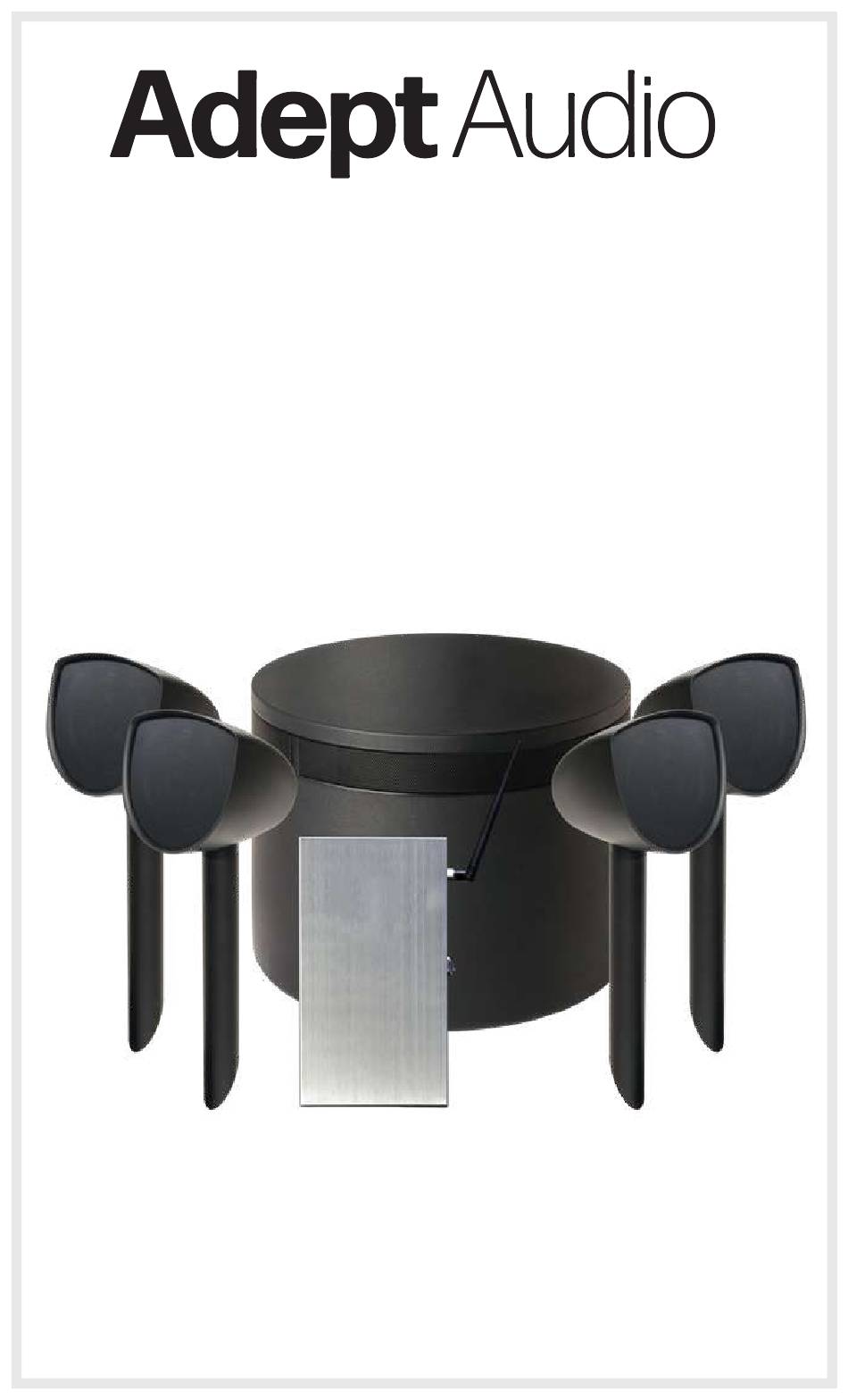

- Page 1 ® Great Sound, Superb Looks, Easy Install SOLSCAPE LS KIT 1 & 2 Landscape Speaker System Installation Manual...
-
Page 2: Introduction
1. INTRODUCTION Thank you for buying Adept Audio Landscape Loudspeakers. These speakers were designed and tuned by the same engineers who invented multiple speaker satellite/subwoofer outdoor sound systems. They’re built to install easily and quickly, and to sound fantastic day in and day out for years to come. -
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction....................2. Important Safety Instructions............3. Warranty ....................4. Tools Needed ..................5. Speaker Cable Choice ................ 6. What’s Included ..................7. Specifications ..................8a. L-300 Amplifier Features ......(Without Streamer) 8b. L-300 Amplifier Features ......(With Streamer) 9. -
Page 4: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 • To help maintain ambient temperature, DO NOT mount in locations with direct sunlight. • To reduce the risk of electrical shock, do not open the equipment. For safety reasons it is only allow to the opened by qualified service personnel.
-
Page 6: Warranty
3. WARRANTY Adept Audio warrants to the original retail purchaser only that this Adept Audio product will be free from defects in materials and workmanship, provided the speaker was purchased from an Adept Audio authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Adept Audio’s discretion. -
Page 7: Tools Needed
4. TOOLS NEEDED • Speaker Wire (Burial Grade) • Wire Stripper • Precision Screwdriver • Shovel • Trenching Shovel (Optional) • Rubber Mallet (Optional) 5. SPEAKER CABLE CHOICE Be sure to use burial-grade speaker cable for any cables that will be buried underground. -
Page 8: What's Included
CREATE RICH HI-FI SOUN 6. WHAT’S INCLUDED WHAT’S INCLUDED WHAT’S INCLUDED WHAT’S INCLUDED WHAT’S INCLUDED SIMPLE, FAST & FLEXIBLE INSTALLATIO a. LS KIT 1 WHAT’S INCLUDED WHAT’S INCLUDED WHAT’S INCLUDED WHAT’S INCLUDED WORKS WITH 2 CHANNELS ON AMBISO 4) LSAT4 Satellite Speakers (4) LSAT4 Satellite Speakers (4) LSAT4 Satellite Speakers (4) LSAT4 Satellite Speakers... -
Page 9: Specifications
7. SPECIFICATIONS SOLSAT4 Satellite Speakers: • 4 1/4'' Injection-Molded Polypropylene Woofers • 3/4'' PEI Dome Tweeters • Frequency Response: 120Hz - 20kHz • Weather & UV Resistant ABS Enclosure • Dimensions: 5.8'' x 5.6'' x 7.1'' (147 x 142 x 180 mm) •... -
Page 10: 8A. L-300 Amplifier Features (Without Streamer)
8a. L-300 AMPLIFIER FEATURES (Without Streamer) MANUFACTURED IN CHINA BRIDGE SERIAL BARCODE LEFT + RIGHT - SERIAL NUMBER 1. Bluetooth Antenna (1) 2. Bluetooth Switch 3. Bridge or Stereo Switch 4. Low Pass Filter (LPF) Switch Gain Knob Clipping/BT Indicator Lights Speaker Output: Right Speaker Output: Left 9. - Page 11 STEREO BRIDGE GAIN FRONT FACE VIEW LEFT RIGHT UNDERSIDE VIEW...
-
Page 12: 8B. L-300 Amplifier Features (With Streamer)
8b. L-300 AMPLIFIER FEATURES (With Streamer) MANUFACTURED IN CHINA BRIDGE SERIAL BARCODE 1. Bluetooth Antennas (2) LEFT + RIGHT - SERIAL NUMBER 2. Bluetooth Switch 3. Bridge or Stereo Switch 4. Low Pass Filter (LPF) Switch Gain Knob Clipping/BT Indicator Lights Speaker Output: Right Speaker Output: Left 9. - Page 13 STEREO BRIDGE GAIN FRONT FACE VIEW LEFT RIGHT UNDERSIDE VIEW...
-
Page 14: System Planning & Installation
9. SYSTEM PLANNING & INSTALLATION The speakers and subwoofer should be strategically placed to evenly distribute sound throughout the outdoor area. Fully plan out the locations of the amp, all speakers, subwoofer and buried wires, before beginning the installation process. The system is designed for the speakers to be evenly divided between two PARALLEL wire runs, with the subwoofer connected to both. - Page 15 III. Feed the speaker wire through the top hole of the ground stake and out the wire hole on the side of the stake. Δ The speaker can now be screwed onto the stake clockwise until tight. Diagram 1 • Speaker Head Attachment expansion to extra speakers xt speaker ext speaker...
- Page 16 III. If the SUB10 will be in-ground, make a hole 16'' diameter x 7'' deep and insert the subwoofer. Δ Bury NO MORE than 7'' deep. Δ Be sure the “grilles” are high enough as to not get submerged. Place subwoofer, as level as possible, not tilted, in the center of hole & use loose dirt to level the subwoofer, ensuring the subwoofer is not in direct contact with any large rocks or large empty holes.
- Page 17 9c. Positioning & Installing the Amplifier Δ Locate a shaded area for the amplifier to be installed out of direct sunlight. Δ Use a minimum of 14 AWG wire for sending a strong signal. 9d. Running Wires from the Amplifier to the Speaker & Subwoofer I.
- Page 18 Making sure to use the supplied waterproof wire nuts, connect both left and right channels to the subwoofer, making sure positive is connected to positive and negative is connected to negative. Continue down the line and connect the rest of the speakers. II.
- Page 19 Δ Extend to the 2nd RIGHT satellite speaker in the same manner. Repeat this process if using additional satellite speakers on the RIGHT channel Δ (MAXIMUM of 4 satellites on each channel). Δ Connect speakers and subwoofer, making absolutely sure you always connect positive to positive and negative to negative.
-
Page 20: L-300 Amplifier Calibration Steps
Once system is wired up, follow these Calibration Steps: 10. L-300 Amplifier Calibration Steps • After following these calibration steps for the GAIN KNOB, then ONLY use the source device to control volume. Δ DO NOT ENGAGE BRIDGE MODE FOR ANY OF THE KITS Δ... - Page 21 Diagram 5 • L-300 Amplifier Calibration FRONT FACE VIEW BLUETOOTH SWITCH STEREO BRIDGE STEREO STEREO GAIN BRIDGE (70V) BRIDGE STEREO LEFT RIGHT BRIDGE BRIDGE (70V) SWITCH [KEEP OFF] STEREO BRIDGE (70V) GAIN GAIN LPF SWITCH [KEEP OFF] 2. Bluetooth Switch 3.
-
Page 22: Testing The System
11. TESTING THE SYSTEM Get the system playing, then go up close to each of the satellite speakers and the subwoofer to make sure all of them are working. If any one speaker is not working, check the connection for that speaker. If multiple speakers are not working, start by checking the connection for the disconnected speaker that’s closest to the subwoofer, then check the other connections down the line until you get all the satellites... -
Page 23: Troubleshooting
If the connection seems good, try connecting a spare speaker to see if it works. If the spare speaker works but the Landscape speaker doesn’t, contact Adept Audio. No sound from all the right-channel or all the left-channel speakers: Check to make sure the source device is connected to the input of the L-300. -
Page 24: Wiring Diagrams
13. WIRING DIAGRAMS Diagram 6a • LS KIT 1 WHITE (+) RED (+) CREATE RICH HI-FI SO SIMPLE, FAST & FLEXIBLE INST GREEN (-) BLACK (-) L300 WORKS WITH 2 CHANNELS ON SOUND CAN BE DIRECTED INW Diagram 6b • LS KIT 2 DUAL-USE PATIO OR BURIAL S CREATE RICH HI-FI S WHITE (+) - Page 25 Diagram 7a • LS KIT 1 (Covers Approx. 1,500 SQFT) L-300 SOLSCAPE 40’ RANGE (SOLSUB10 + 4 X SOLSAT4) Diagram 7b • LS KIT 2 (Covers Approx. 2,500 SQFT) L-300 SOLSCAPE SOLSAT4 SOLSAT4 40’ RANGE (SOLSUB10 + 4 X SOLSAT4) (PAIR) (PAIR)
- Page 26 Diagram 8a • Left Side Right Side Wiring...
- Page 27 Diagram 8b • Left Right Left Right Wiring...
-
Page 28: Technical Assistance
®2020 Adept Audio.All copyrighted, trademarked and patented elements ®2023 Adept Audio. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Adept Audio mentioned herein are the sole property of Adept Audio ®2020 Adept Audio.All copyrighted, trademarked and patented elements...
