ETT McPower LBN-305 Instruction Manual

McPower „LBN-305"
0-30 V, 0-5A, adjustable, LC-Display

IMPORTANT NOTE:

This device has left the factory in a safe and fully operational condition. To maintain this condition and ensure a safe
operation, the user must strictly follow the safety instructions and warnings contained in this user manual.

STARTUP

• Plug the power plug into the 230V socket and connect the IEC connector to the device's power input.
• Check the voltage range and required current for the connected load.
• Turn on the device using the On/Off switch.
• Set the precise voltage with the two voltage regulators.
• Set the current limit by short-circuiting the power supply through the connection of the positive and negative outputs.
• Connect the desired load to the terminals with the correct polarity.
Made by ETT Distribution GmbH, Schmalbachstraße 16, 38112 Braunschweig
Item number: 1800003
Instruction manual
Power supply
www.ett-online.de | Tel. +49 531 58 11 00 | service@ett-online.de
Reprinting or reproduction only with expressed permission.

TECHNISCHE DETAILS

Operating voltage:
Power:
Output voltage:
Output current:
Height:
Width:
Depth:
Resolution Voltage:
Resolution Current:

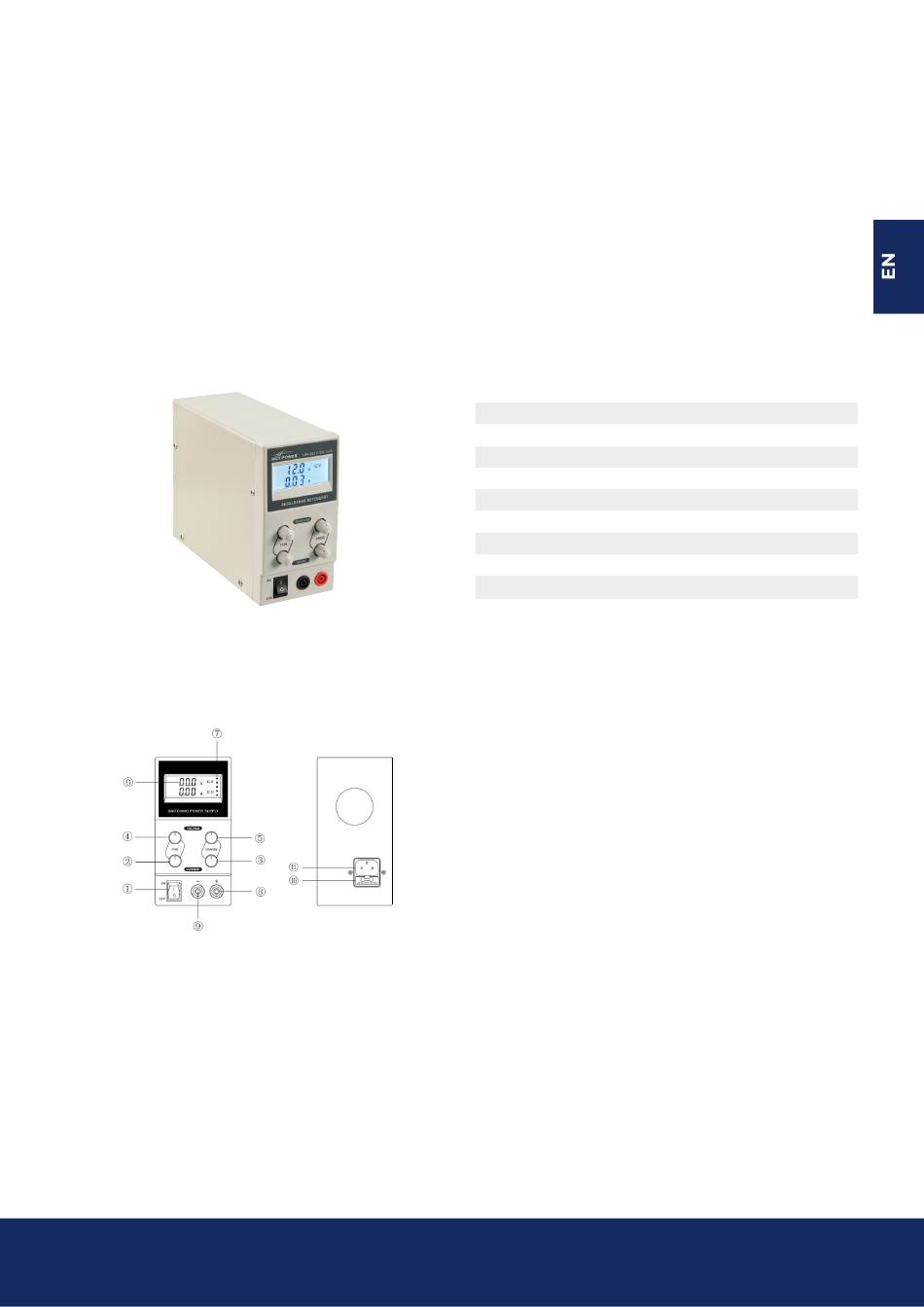

1. On/Off switch
2. Fine adjustment current
3. Coarse current setting
4. Fine voltage setting
5. Coarse voltage setting
6. Current and voltage display
7. Indicator for constant voltage (C.V) and
constant current (C.C
8. Plus, connection terminal positive output
9. Minus, connection terminal negative output
10. Fuse
11. Connection for IEC plug
Status: 02/2024
230 V
150 W
0 ‒ 30 V
0 ‒ 5 A
164 mm
82 mm
220 mm
±1% + 2 Digits
±2% + 2 Digits
