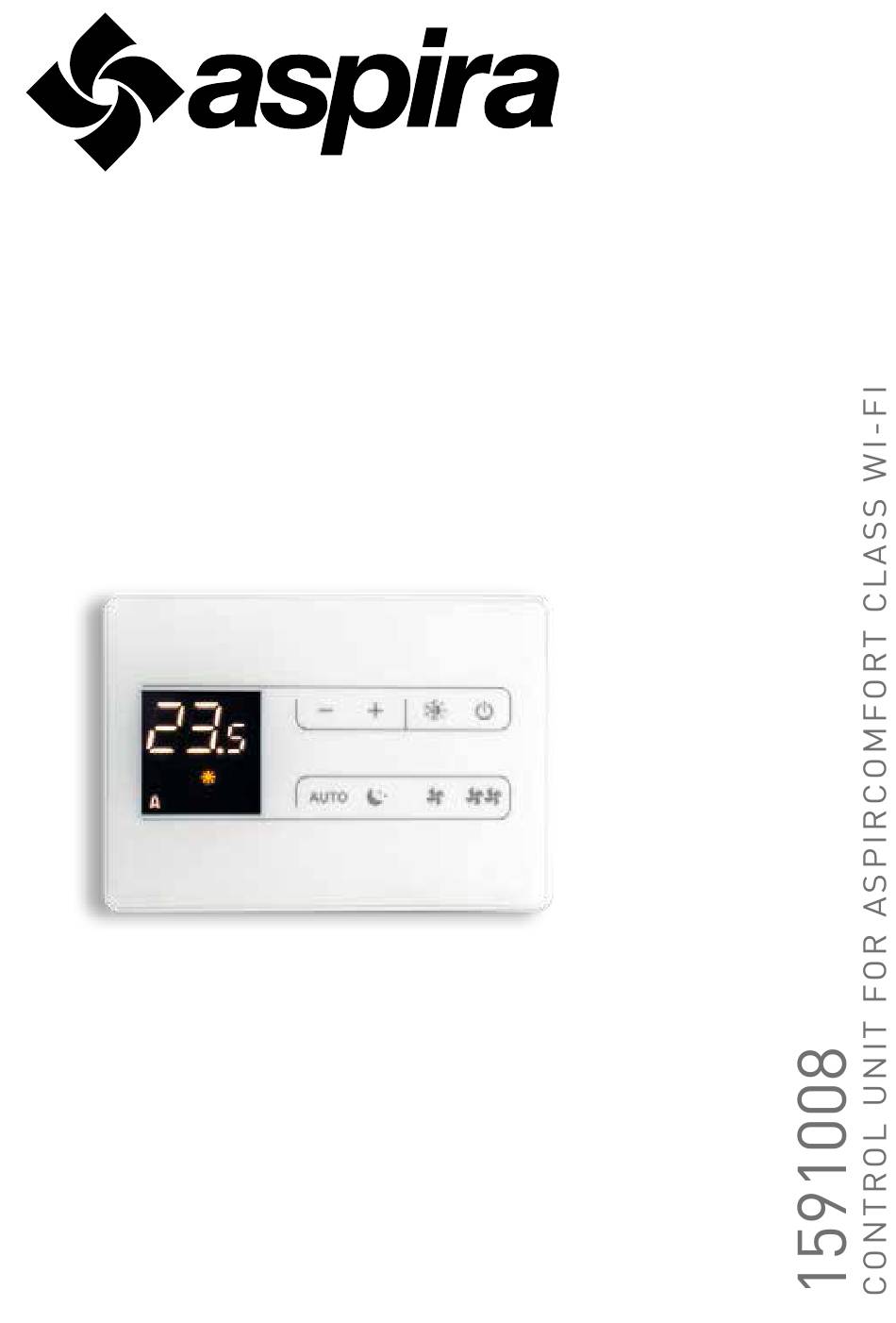

Summary of Contents for Aspira 1591008
-
Page 2: Panel Description
1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI 1. GENERAL In order to ensure the “drainage” of moisture that is naturally created inside homes, the unit must run continuously at least at reduced speed (speed 1). If the ventilation unit is switched off, condensation may occur inside the unit and inside the building with possible moisture damage. -
Page 3: Dip Switch Settings
1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI 3. DIP SWITCH SETTINGS At the top of the board are 4 dip switches for the various operating configurations of the unit. It is essential to set the dip switches correctly; the indications for the various operating modes are repeated below. OFF OFF ON ON (default) -
Page 4: Operation

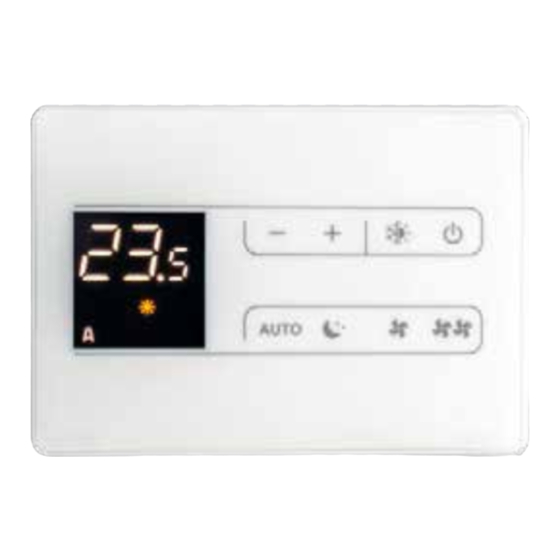

1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI 4. OPERATION The unit is fully manually controlled by the user via the wall-mounted touch control. The remote control includes an air quality and humidity sensor for automatic air flow control. Below are the buttons on the main screen: Switches the keyboard unit on / off Summer/winter selection... - Page 5 1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI NOMINAL SPEED FUNCTION - AUTO FUNCTION When the auto button is pressed, the unit will operate according to the demand setting of the humidity and air quality sensors according to the dip switch settings made during start-up of the unit.
- Page 6 1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI CONTROL UNIT BRIGHTNESS ADJUSTMENT With the panel switched off, press and hold the + button for 5 seconds until 01 appears. Use the - button to set the value to 00 and wait 20 seconds for verification of the correct setting.
- Page 7 1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI ALARMS In case of any problems or failures, take note of any error code appearing on the electronic control unit or remote control screen, take note of the model and the serial number of the unit you possess (data provided on the identification plate attached on the side of the unit) and contact the installer.
-
Page 8: Alarm Signalling
1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI 6.2 ALARM SIGNALLING A list of all alarms managed by the application follows. The presence of an alarm has two display modes: • an error code on the control display; •... -
Page 9: Display Alarms
1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI 6.3 DISPLAY ALARMS Below is the table of unit malfunctions signalled by the remote display or by the flashing of the LED on the board. CODE DESCRIPTION CAUSE SOLUTION BOARD FLASHES AIR recovery probe Probe breakage or Check probe... - Page 10 1 5 9 1 0 0 8 ASPIRCOMFORT CLASS WI-FI DISPOSAL ATTENTION: Important information for the environmentally sound disposal of the device. The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste at the end of its useful life.
- Page 12 FANTINI COSMI S.p.A. Via Dell'Osio, 6 - 20049 Caleppio di Settala, Milan, Italy Tel. +39 02 956821 | Fax +39 02 95307006 E-mail: export@fantinicosmi.it www.fantinicosmi.it...
