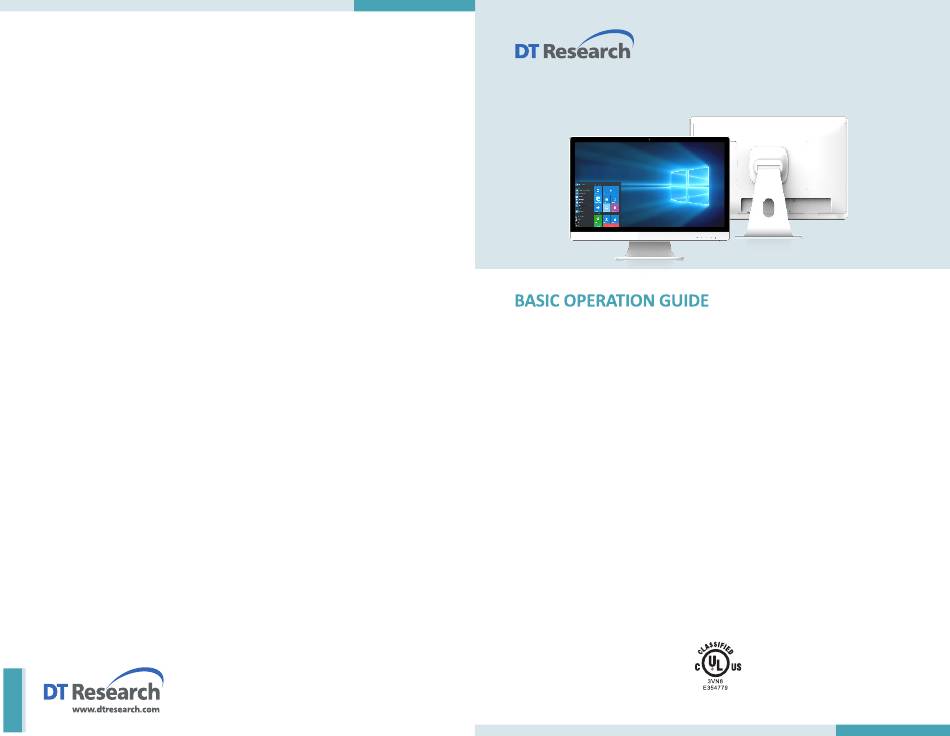

DT Research 554GR Basic Operation Manual

Wireless Networking
Wireless LAN
The Medical-Grade Graphics Station System is often delivered with an embedded (user-
inaccessible) 802.11ac WLAN adapter equipped with a hidden custom antenna.
• Through the support of typical WLAN adapters, the Medical-Grade Graphics Station System
should be able to detect all 802.11 access points in the vicinity for you to select the access
point of your choice for connection.
• The SSID and WEP/WPA/WPA2 (if enabled) parameters on the Medical-Grade Graphics
Station System and the access points have to match. The SSID is case-sensitive and it is
recommended that you enable WEP/WPA/WPA2 encryption (or advanced alternatives) for
secure access.
• When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator
or your networking equipment literature to properly configure associated settings such as
Authentication mode, etc.
• Refer to the access point operating manuals for setting up the 802.11 access points.
Cleaning the Screen
• A screen cleaning solution that is alcohol-free and non-abrasive can be used to clean the
touch screen.
• Cleaning with a micro-fiber cloth is recommended.
• Please spread the solution onto the cloth and then clean the touch screen.
Cleaning the Anti-microbial Enclosure
• Use a soft/non-abrasive cloth moistened with water to clean the enclosure.
• If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
• To prevent scratching the anti-microbial coating, please wipe gently.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2023, DT Research, Inc. All Rights Reserved.
signage dtri com

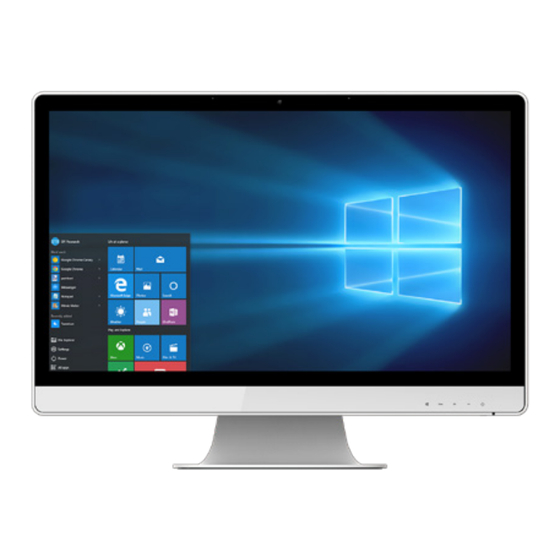

Medical-Grade Graphics Station
554GR
INTRODUCTION
Thank you for acquiring DT Research's Medical-Grade Graphics Station System. With a 23.8"
TFT-LCD display and powered by an Intel® or Core™ i processor, the Medical-Grade All-In-One
Computer 554GR offers an optimal functionality combining excellent performance and power-
saving capability. The 554GR equipped with powerful graphics and processing capabilities,
and available with a choice of the Microsoft Windows 11 IoT Enterprise or Ubuntu operating
systems. It is also fitted with dedicated NVidia graphics cards (RTX A2000, RTXA4000), and up
to 64GB of RAM, which make them ideal for handling complex medical imaging applications.
Please take a few moments to review the contents of this document to ensure that the setup
and startup proceed smoothly. The Medical-Grade Graphics Station System is ready for use,
out of the box, in its default configuration when powered by the power source provided.
The following documentation offers guidance on the hardware elements and features of the
computer. Please refer to your device provider for information pertaining to the software
operating system or software applications.
PACKAGE CONTENTS
• 554GR
• AC-DC power adapter with power cord
• Basic operation guide
BOG022423 504T ENG
MEDICAL – GENERAL MEDICAL EQUIPMENT
AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL
HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI
ES60601-1 (2005) + AMD (2012) & "CAN/CSA-C22.2
No. 6060-1 (2008) + (2014)
