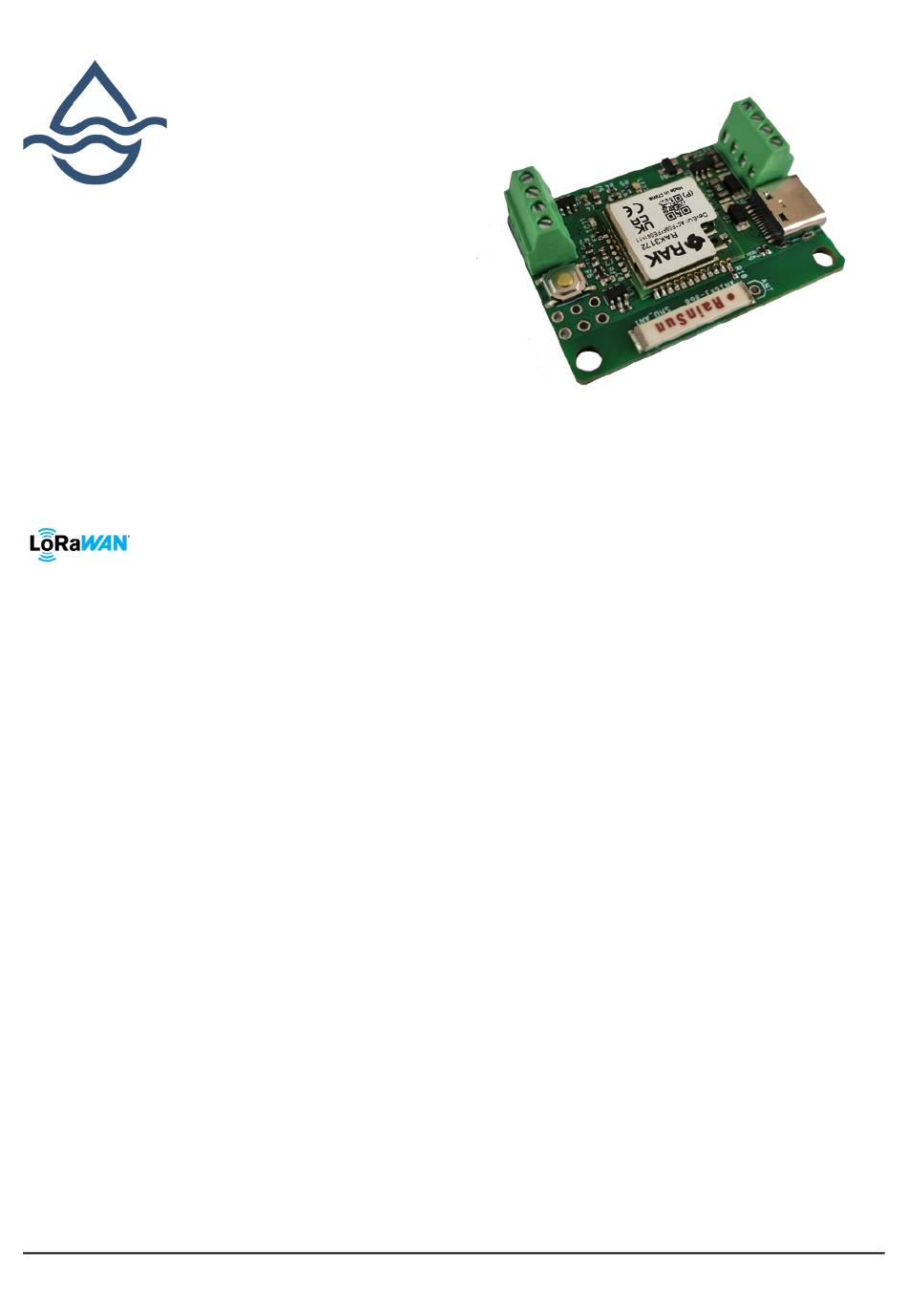

Users and Installation Manual: Bridge between AQS-LoRa and Dry Contacts (DRYLWE02)

Bridge between

AQS-LoRa and Dry

Contacts

SKU: DRYLWE02

Version: 1.0

Product Description

The Dry Contact Controller connects wireless Aqua-Scope devices that are both controlled and

controlling with the world of wired controls. With this device, it is possible to control an Aqua-Scope

motor servo directly through a switch input. This switch input can be directly connected to an actuator of

your alarm system or smart home system (Shelly, Z-Wave, Smartthings, Bosch, Homematic, ...). The Dry

Contact Controller will transmit the information at the switch input wirelessly as a control signal to the

motor.

Conversely, a normal magnetic shut-off valve or a similar actuator can be controlled by the Aqua-Scope

sensor/monitor using the Dry Contact Controller.

The device requires a power supply, which can be provided through a regular 6...16 V AC connection, a

USB-C power supply, or a 3 V battery. All connections, including switch inputs, switch outputs, and power

supply, are connected via screw terminals. The button on the device can be used to test the quality of

the wireless connection to or from the Aqua-Scope device.

Device as Motor Emulation

The device can be connected to the Aqua-Scope Monitor through the Aqua-Scope app. In the app, under

the Configuration menu, select "New Subdevice" and enter the 8-digit ID of the device. Once accepted by

the device, the controller can be operated through the app or another communication channel like

MQTT. The switching signal (On/Off) is provided at the 'ADC' output terminal. Note that due to the

limitation of the output current to 20 mA, direct switching of an electric motor is generally not possible,

and an additional relay is required. The LED on the controller indicates the switching state with red and

Table of Contents

Need help?

Do you have a question about the DRYLWE02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua-Scope DRYLWE02

Page 1 The Dry Contact Controller connects wireless Aqua-Scope devices that are both controlled and controlling with the world of wired controls. With this device, it is possible to control an Aqua-Scope motor servo directly through a switch input. This switch input can be directly connected to an actuator of your alarm system or smart home system (Shelly, Z-Wave, Smartthings, Bosch, Homematic, ...).
Page 2 To ensure secure communication, the 8-digit device ID and the 16-digit device key must be stored in the controller. Note: If you purchase the controller as a bundle with a motor directly from Aqua-Scope, the keys are already stored, and no further action is required.
Page 3 Pressing the button for at least 2 seconds toggles between battery and normal modes. In battery mode, unlike normal mode, no LED lights up, and no status messages can be received. Therefore, the controller can only be used to control Aqua-Scope motors and only without a corresponding feedback channel on pin 'ADC'.
Page 4 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve the right to make any alterations that arise as the result of technical development.
Page 5 Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.aqua-scope.com/ce Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico DRYLWE02 es conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la direccin Internet siguiente: www.aqua-scope.com/ce...
Page 6 Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de rádio DRYLWE02 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce Română...
Page 7 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging health and well-being. Copyright © 2023 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua- scope.com...
