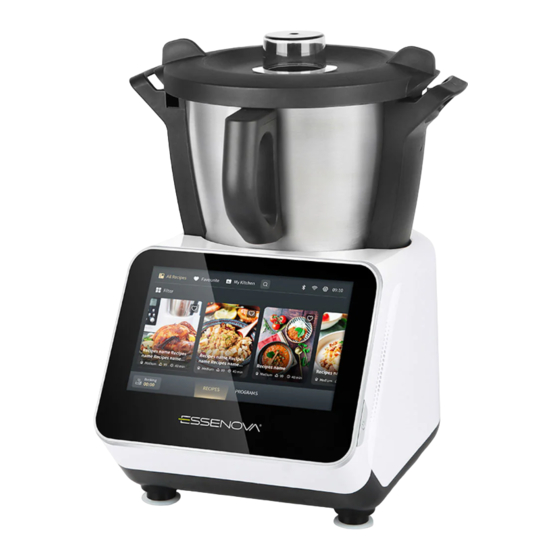

- Page 1 KITCHECN MACHINE SPM-308L Before operating the appliance please read this manual thoroughly and retain it for future reference...
- Page 3 If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product. We wish you a lot of joy with your new food processor with multi cooking function “ESSENOVA”!
-
Page 4: Table Of Contents
CONTENTS 1. INTRODUCTION 7. TROUBLESHOOTING 2. IMPORTANT SAFEGUARDS 8. DISPOSAL 3. INSTALLTION AND COMPONENTS 9. THECNICAL SPECIFICATIONS 4. HOW TO ASSEMBLE 10. WARRANTY 5. HOW TO USE 11. HELP AND SUPPORT 6. HOW TO CLEAN... -
Page 5: Introduction
INTRODUCTION ESSENOVA is used to cook, steam, boil, knead, whisk, chop, saute, grate, mix, chop, grind, emulsify, weigh. Turbo Manuai Cooking Scale Ferment Steam Braise Slow Cook Sous vide Knead Saute Keep Warm Clean This appliance is intended for household use only. It is not intended Main unit &... -
Page 6: Important Safeguards
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Follow these instructions Read and follow all safety instructions when using ESSENOVA to Keep the appliance far enough from the edge of the working prevent the risk of fire, electric shock, personal injury, or damage. - Page 7 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is by turning the equipment off and on, the user is encouraged to try to subject to the following two conditions: correct the interference by one or more of the following measures: This device may not cause harmful interference, and Reorient or relocate the receiving antenna.
- Page 8 Before placing the blade into the bowl, ensure the rubber sealing When using the appliance with or without a steamer tray, keep the ring has been placed on the blade. Otherwise, food may get inside appliance away from any surfaces, such as wall cabinets, shelves, the appliance and damage it.
-
Page 11: Installtion And Components
INSTALLTION COMPONENTS... - Page 12 3.2 Lid for the mixing bowl The bowl is made of stainless steel and has a maximum capacity of ESSENOVA only works with the bowl lid in place and closed 3 liters with marked levels at every 0.5 liters indicated on the outside correctly.
- Page 13 3.4 Cooking Basket The measuring cup is highly versatile with a 100ml capacity, and allows ESSENOVA comes with a cooking basket that is placed inside the the easy use of the kitchen machine without the need to stop it while it...
- Page 14 3.5 Spatula 3.6 Steamer Tray Use Spatula for stirring, mixing or scraping the ingredients; Or for The steamer tray is ideal for steaming meat, fish and vegetables. lifting the cooking basket. The shallow and deep steamer tray are used for placing the ingredients inside for steaming.
- Page 15 3.7 Mixing Tool How to Use the Steamer Tray Put the bowl in into the main unit, and fill enough water into the bowl. The mixing tool is ideal for whipping cream or beating egg whites. Check the sealing ring of the deep steamer tray and make sure it The mixing tool is placed on top of the blade and works with has been placed correctly.
- Page 16 3.8 NOTES ON USE Place ESSENOVA on a clean and stable surface that does not Never exceed the maximum capacity of the bowl. radiate heat. Allow hot ingredients to cool before transferring them. ESSENOVA comes with two security sensors that can be found in Wash and dry the blade thoroughly.
- Page 17 3.9 Leaking of food Ensure the sealing ring of the blade is fitted to the blade bearing, Danger of scalding by splashing hot food otherwise food may leak out and damage the appliance. Never use the Turbo button or high speed or suddenly increase the speed above speed 3 when processing hot food.
-
Page 19: How To Assemble
HOW TO ASSEMBLE... - Page 20 4.1 ASSEMBLING THE BLADE To place the blade in the bowl, hold its upper part, do not touch the Warning sharp blade leaf. The blade is very sharp Ensure that the sealing ring is clean and placed on the blade. Failure to do so may result in damage to the machine.
- Page 21 4.2 PLACING THE BOWL 4.3 PLACING THE LID Place the bowl in the central unit (without the lid). Press downwards Ensure that the rubber sealing ring is fitted correctly in the inner side firmly until the edge of the bowl rests under the appliance lock. of the lid.
-
Page 23: How To Use
HOW TO USE... - Page 25 Recipes page Using recipes is the best way to start your Tap to show all recipes. Cooking Machine. With step-by-step guidance, Your favorite recipes. you can easily make all kinds of delicious food. Your cooking history. The new recipes will be updated from time to Search recipes.
- Page 27 Manual Cooking mode Back to "PROGRAME" page. Skilled chefs may prefer to use manual cooking mode. This panel is used to set the parameters of Tap to change the stirring or cutting your Cooking Machine freely, allowing you to cook speed.
- Page 28 Turbo mode Back to "PROGRAME" page. Tap to start chopping at a high speed.
- Page 29 Scale mode Back to "PROGRAME" page. Tap to ZERO the scale.
- Page 31 Recipe Details Back to "RECIPES" page. On this detailed page, you will see the introduction of the recipe, the cooking steps, the ingredients Tap to see the recipe overview. needed and the nutritional ingredients, so as to Tap to see the ingredients needed. understand the recipe you are about to cook.
- Page 33 Recipe cooking let us take a look at what we can do in one step Tap to exit the recipe. of recipe cooking. See the current step, and tap to see all steps. Tap to see ingredients. Move to previous step. Move to next step.
- Page 34 TOUCH CONTROL SCREEN A clean screen is necessary for trouble-free operation. Do not touch the screen with wet or sticky fingers. SPEED actived blade direction Reverse chooseable blade direction Tap to call up the selection wheel, slide up and down to adjust. Tap on the blank space to hide the selection wheel.
- Page 35 To operate, keep the button pressed down for as long as necessary, TIME usually from 3 to 4 seconds.Take care when using this function, as Maximum timer: 120 minutes. food may splash. We recommend placing the measuring cup in such a way as to block the hole in the mixing cup lid.
- Page 36 PROGRAM Essenova preset some automatic preprogram. You can adjust some of the setting or start the program directly. Turbo Manuai Cooking Scale Ferment Steam Braise Slow Cook Sous vide Knead Saute Keep Warm Clean...
- Page 37 < Steam Back to program menu. The valuve is dark, not adjustable. 20:00 The valuve is bright, adjustable.
- Page 38 RECIPES You can choose various recipes. You can also download and update more recipes by conneting WIFI. Tap to show all recipes. Your favorite recipes. Your cooking history. Search recipes. Wi-Fi signal/sidebar. Tap on and go to“Setting Menu”. To filter recipes. Tap on a recipe to view details.
- Page 39 Recipe detail press the photo to show it full screen Before “Start” each step, can adjust the time/temperature/speed if necessary, press “Ingredients” button to check and weigh ingredients. press to show the ingredients list...
- Page 40 SCALE SETTINGS The max. weight capacity is 5 kg, with 5g in step. Weigh Check the machine ID here. ingredients directly in the mixing bowl or in the steam New version is ready, press to install. tray. IMPORTANT Speed and temperature value can't be both 0. Speed 7~16, max time setting is 15mins.
-
Page 43: How To Clean
HOW TO CLEAN... - Page 44 The contact points at the bottom of the bowl should always be clean and dry. If using ESSENOVA for the first time, begin by becoming familiar with All the stainless steel components of this machine can be washed the appliance.Because of the manufacturing process residues of in the dishwasher.
-
Page 45: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Unit not Reposition the bowl correctly appears on screen Bow is not installed or installed incorrectly working until this icon disappears Unit not working Reposition the lid correctly Lid is not installed or installed incorrectly appears on screen until this icon disappears When kneading dough, the unit is... -
Page 46: Disposal
DISPOSAL TECHNICAL SPECIFICATIONS If the product is no longer suitable for use, dispose of it in an Model No SPM-308L environmentally friendly manner. Motor 1000W Heater 1200W Products identified with this symbol may not be discarded with Rating 120V~ 60Hz 1400W normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. -
Page 47: Warranty
WARRANTY ESSENOVA product is provided with a 1 year warranty starting with the The product is only intended for private and not for commercial use. purchase date. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the Warranty coverage warranty shall cease. - Page 48 WARRANTY CARD WARRANTY Model Name: ESSENOVA product is provided with a 1 year warranty starting with the purchase date. Model No: Warranty conditions Date of Purchase: The warranty period starts with the purchase date. Please keep the Invoice No: original purchase receipt in a safe place. This document is required to verify the purchase.
- Page 50 www.getessenova.com @getessenova 1-800-668-2105 essenovaca info@getessenova.com @getessenova Unit 608,5863 Leslie St North York,ON M2H 1J8...
