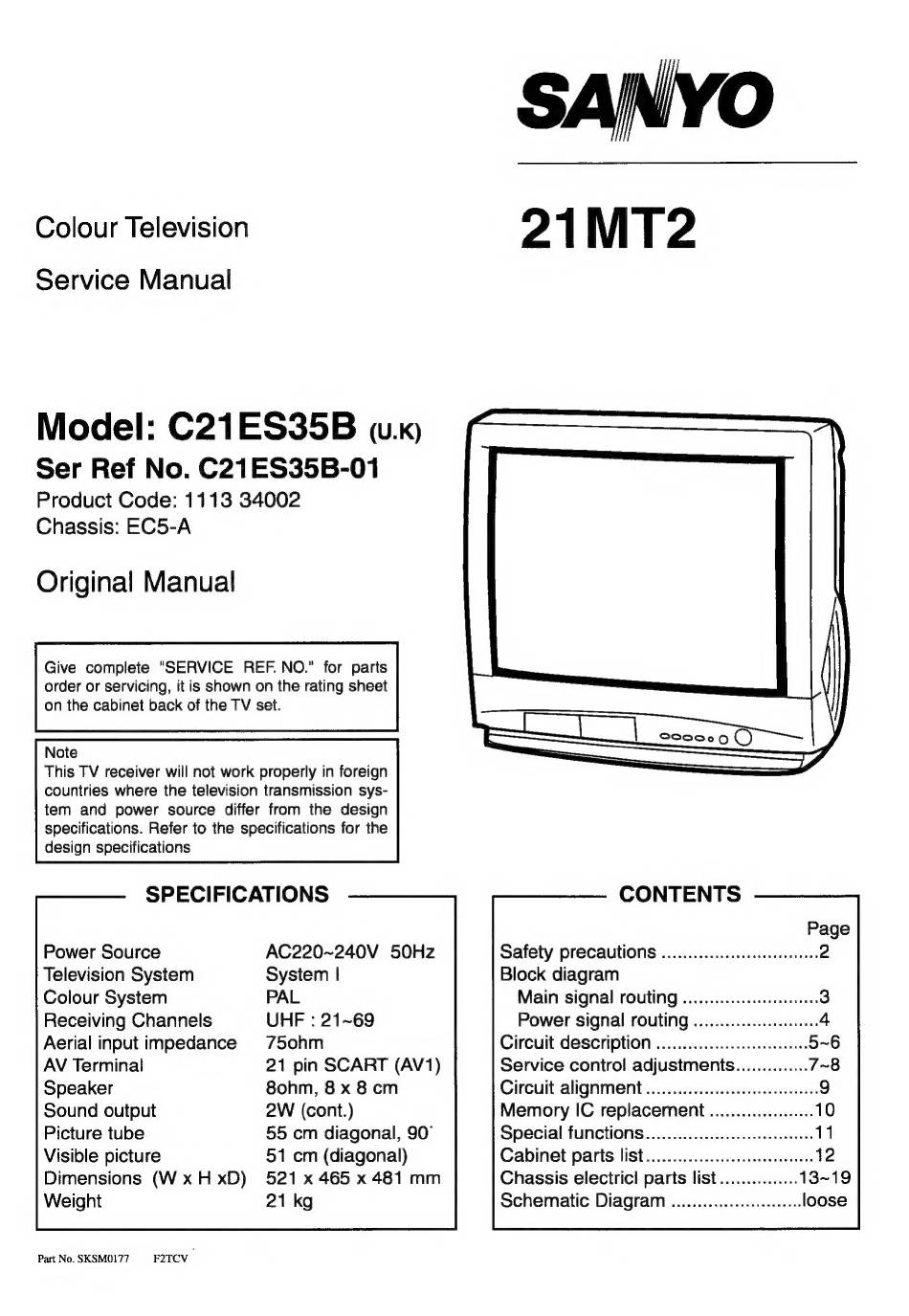

Service Manual
Model: C21ES35B w.k)
Ser Ref No. C21ES35B-01
Product Code: 1113 34002
Chassis: EC5-A
Original Manual
Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission sys-
tem and power source differ from the design
specifications. Refer to the specifications for the
design specifications
SPECIFICATIONS CONTENTS
Power Source AC220~240V 50Hz
Television System System |
Colour System PAL
Receiving Channels UHF : 21~69
Aerial input impedance 75ohm
AV Terminal 21 pin SCART (AV1)
Safety precautions .............ee eee
Block diagram
Main signal routing .............ccceeee
Power signal routing ............:cccsee
Circuit GESCription .............:ceeeeeeeeee
Service control adjustments..............
Speaker 80hm, 8 x 8 cm
Sound output 2W (cont.)
Picture tube 55 cm diagonal, 90°
Visible picture 51 cm (diagonal)
Dimensions (WxHxD) 521 x 465 x 481 mm
Weight 21 kg
Circuit alignment ............:c: eee
Memory IC replacement ................6
Special functions..........ccccceceeeeeeeeee
Cabinet parts list..............::c: eee
Chassis electrici parts list...............
Schematic Diagram ...........0:ceeeeee
Part No. SKSM0177 F2TCV ;
