Owners Manual and Safety Instructions
Read and Save this Manual.
Keep this manual for the safety warnings and precautions. Refer to this manual for operating,
maintenance and inspection procedures. Log the items serial number on the front of this manual. Keep
purchase receipt with this manual in a safe dry location for future reference.
ACK
The Roof Rack For Your Hitch
Required tools:
1/2" Socket or open wrench for OSTB-B Bracket
6" Socket extension for accessing Bracket bolts while
spare tire is mounted.
13mm Socket Wrench for Tire Carrier
19mm Socket Wrench or Lug Wrench (From Bronco) for
Spare Tire Removal.
For help with this product please visit our website at
www.xrack.us/help or call 888-998-5739 or 516-338-0884
for assistance. Never overload the rated weight of the
vehicle's load capacity which may be lower than the rating
of the accessory rack. Some tools are not included for
installation to the vehicle.
WARNING
!
Do not operate with unstable loads
Do not load beyond rated capacity
Always strap load securely
Distribute load evenly
Do NOT sit, Stand or ride on
Do NOT exceed 65 MPH with Carrier attached
Follow DOT Guidelines for installation and use
X-Rack Over Spare Tire Brackets- Bronco
Not Included
ADVERTENCIA
!
No opere con cargas inestables
No cargue más allá de la capacidad nominal
Siempre cargue la carga de forma segura
DISTRIBUIR carga uniformemente
No se siente, se pare o monte
NO exceda 65 MPH con Carrier adjunto
Siga las pautas DOT para instalación y uso
X-RACK
Bethpage, NY USA
Model: OSTB-B
2021+ Ford Bronco edition
.
* Optional Accessories Shown
READ THIS MANUAL BEFORE USING THIS
PRODUCT. FAILURE TO DO SO CAN RESULT IN
SERIOUS INJURY. SAVE THIS MANUAL
!
Ne pas utiliser avec des charges instables
Ne chargez pas au-delà de la capacité nominale
Toujours attacher la charge en toute sécurité
DISTRIBUER charge uniformément
Ne pas s'asseoir, se tenir ou monter sur
Ne dépassez PAS 104 kilomètres à l'heure avec le transporteur attaché
Suivez les directives des autorités pour l'installation et l'utilisation
info@xrack.us
WARNING
ADVERTISSEMENT
v1
Advertisement
Table of Contents
Related Manuals for XRACK OSTB-B
Summary of Contents for XRACK OSTB-B
- Page 1 2021+ Ford Bronco edition The Roof Rack For Your Hitch Required tools: * Optional Accessories Shown 1/2” Socket or open wrench for OSTB-B Bracket 6” Socket extension for accessing Bracket bolts while spare tire is mounted. 13mm Socket Wrench for Tire Carrier 19mm Socket Wrench or Lug Wrench (From Bronco) for Spare Tire Removal.

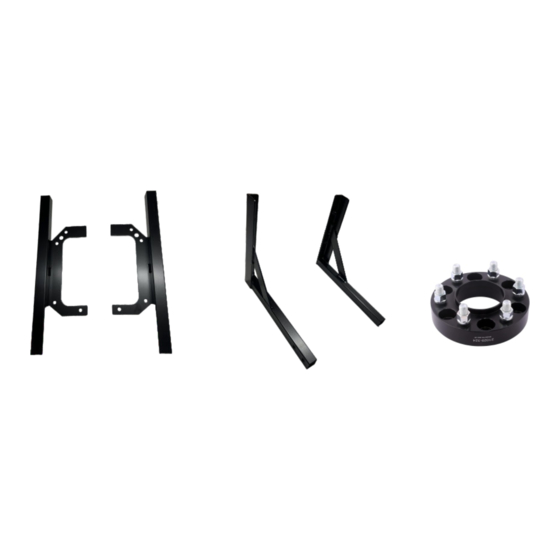

- Page 2 Installation Instructions What’s in the box: Hardware for OSTB-B-LL OSTB-B-LR OSTB-B-UL OSTB-B-URL Hardware for deck/box spare tire mount: mount: 8x M8x40mm Bolt 4x 5/16”x 1” Bolt 8x M8 Flat Washer 4x 5/16” Fender Washer Spare Tire Spacer(Optional) Hardware for 1 x Foam Pads...
- Page 3 Installation Instructions (Fig. 1) (Fig. 2) (Fig. 3) (Fig. 5) (Fig. 4) (Fig. 6) (Fig. 7) (Fig. 8) (Fig. 9)
- Page 4 Safety Information 1. Read all instructions before using this product 2. Check for missing or damaged parts 3. Do not exceed the vehicle maximum load capacity. 4. Always distribute load evenly. 5. Always secure load with proper straps. 6. DO NOT exceed 65MPH while cargo is loaded, not for extreme off road conditions 7.
- Page 5 LIMITED WARRANTY B&R Innovations, LLC (B&R) warrants this product to be free of defects in material and workmanship during the warranty period. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty, after we receive a proper request from the warrantee (you) for warranty service. Who may request service? Only a warrantee may request service.
