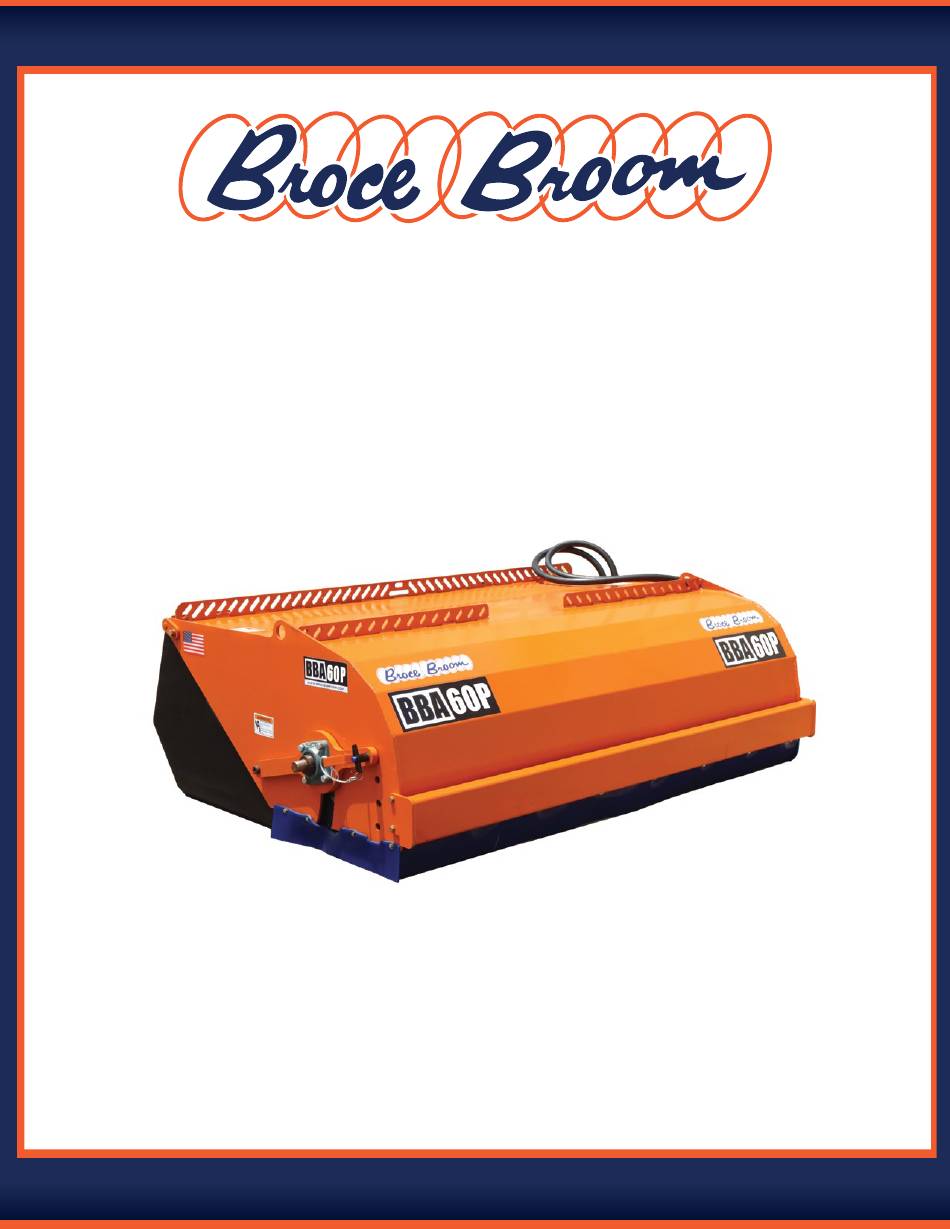

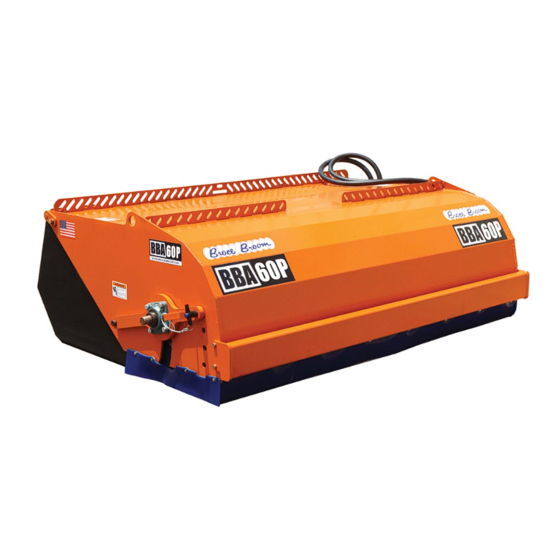

- Page 1 Operation & Maintenance BBA60P Skid Steer Broom Attachment Broce Manufacturing Co. Inc. - 1460 South 2nd Avenue - Dodge City, KS 67801 (877) 227-8811 - FAX (620) 227-3012 - parts@brocebroom.com M-F 7:00 AM-6:00 PM CST 1-866-283-2759 www.brocebroom.com...
- Page 3 Broce Manufacturing Company, Inc. WARRANTY REGISTRATION Purchased From (Dealership) Company: _____________________________________________________ Address: _____________________________________________________ City: _________________________ State: ____ ZIP: ___________ Delivery Date to Dealer: ___ / ___ / ___ Unit Hours: _________________ Model Number: ________________ Serial Number: ______________ Purchaser Company: _____________________________________________________ Address: _____________________________________________________ City: _________________________ State: ____...
- Page 5 BROCE MANUFACTURING COMPANY BROCE BROOM LIMITED TWELVE-MONTH WARRANTY For a period of twelve (12) months or 1,000 hours whichever comes first, from the date of delivery of product to the original user, Broce Manufacturing of Dodge City, Kansas warrants each product to be free from manufacturing defects, subject to the limitations contained in this policy.
-
Page 7: Table Of Contents
PARTS FULL ASSEMBLY BREAK DOWN..........COVER ASSEMBLY..............LEFT-HAND LEVER ARM ASSEMBLY........RIGHT-HAND LEVER ARM ASSEMBLY........CORE ASSEMBLY..............WATER SYSTEM............... ELECTRICAL FOR WATER SYSTEM........SCHEMATICS (Hydraulic Diagram)............VALVE BREAKDOWN................SERVICE PARTS TO STOCK............... NOTES....................WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 8: Safety Precautions
5. While machine is in operation, there should be no bystanders within 15 to 20 feet. FAILURE TO READ THIS MANUAL AND IT’S SAFETY INSTRUCTIONS IS A MISUSE OF THE EQUIPMENT AND WILL VOID FACTORY WARRANTY. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... - Page 9 3. Relieve the pressure in the hydraulic lines by actuating the skid steer/loaders boom controls. NOTE: reference the skid steer/loader’s manual for exact pressure relieving methods. 4. Disconnect the attachment’s hydraulic lines from the skid steer/loader. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P...
-
Page 10: Attachment Specifications
ATTACHMENT SPECIFICATIONS BBA60P Brush Width 60” Overall Width (W) 74.74” Overall Depth (D) 60.57” Standard Package Overall Height (H) 25.76” Standard Package Weight (lb 1300 lb Wafer Diameter 24” Input Flow Range 12-30 GPM Operating Pressure 3000 PSI Water System... -
Page 11: Serial Number Location
The model/serial number plate is located on the right-hand side of the step. If the model/serial plate cannot be read, the serial number is stamped on the back side of the bucket cross-member directly above the step. See the image below for more details. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... - Page 12 6. If the coupler interferes with the attachment, replace the coupler and straight adapter with the included stubby coupler and 90-degree adapter. Failure to check for interference could cause damage to the machine. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P...
-
Page 13: Adjusting The Cover Retention Chains
3. Hook each chain to a secure location on the skid steer/loader’s boom arm. Failure to securely fasten the chain to either the loader or attachment could result in the chain slipping and could cause damage to the unit or serious injury. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... - Page 14 . hook. Failure to securely fasten the chain to either the loader or attachment could result in the chain slipping and could cause damage to the unit or serious injury. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P...
- Page 15 6. If the chains need to be adjusted, perform the “maintenance shutdown procedure.” Unhook the chain from the skid steer/loader, remove the hook pin, and relocate the hook by one chain link until the desired chain length is acquired. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P...
-
Page 16: Maintenance
200-hour intervals are recommended if lubrication is deemed neces- sary. Seals are often destroyed by over-greasing sealed bearings. NOTE: The average grease gun outputs 0.025 - 0.035 ounces per stroke. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 17: Adjusting Core Height
Ensure the core adjustment pin detent button is fully extended and locked after pinning the lever arm into position. Failure to lock the corepins can result in dam- age to the attachment and possible injury. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 18: Broom Wafer Replacment
MAINTENANCE (BROOM WAFER REPLACEMENT) Wafer Maintenance The Broce Broom Attachment line uses a 10” x 24” convoluted wafer. See the table below for wafer quantities for 60 inch core. Core Length (in) Number of Wafers Required Replacemnet wafer kits can be ordered from Broce Manufacturing at www.brocebroomparts.com or call 1-580-227-3711. -
Page 19: Motor Replacment
8. Slide the motor into the motor spacer assembly and install the lower 2 allen bolts to hold it in place. 9. Install the upper handle and the remaining allen bolts. 10. Use the allen wrench to tighten all 4 motor bolts. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 20: Idler Bearing Replacment
10. Slide the idler-bearing lock ring onto the idler shaft and use a hammer and punch to turn the lock ring clockwise until it is tight. 11. Tighten the lock ring set screw. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 21: Cutting Edge Replacment
(CUTTING EDGE REPLACEMENT) Cutting Edge Replacement The Broce Broom Pickup-Broom Attachments come standard with a double-sided bolt-on cutting edge to double the lifespan of the cutting edge. When one side of the cutting edge has been worn to a point that warrants replacement, the blade can be removed, rotated 180˚, and reinstalled. -
Page 22: Water System
Ensure the system is drained during storage or freezing weather. Failure to drain the water system can result in damage to the system. To drain the water system: Unscrew the strainer cap, allowing water to drain out of the tank. WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 23: Troubleshooting
Brush is Stalled 1. Flow from Skid Steer is 1. Reverse flow Backwards 2. Valve pressure relief set to low 2. Call customer service for pres- sure setting WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... - Page 24 SERVICE PARTS WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P...
-
Page 25: Parts
60” Carbide Bolt-on Blade Optional Shown 391149 Hinge Pin Assembly 391172 Core Adjustment Pin Guard 391170 60” PUB Bumper Assembly 391104 Core Adjustment Pin Guard See “Core Assembly” 391101 Attachment Valve w/o Angle Control WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 26: Cover Assembly
See “Left-Hand Lever Arm Assembly” See “Right-Hand Lever Arm Assembly” 391123 PUB Side Rubber 200532 PUB Side Rubber Plate 391163 60” PUB Front Rubber 200533 60” PUB Front Rubber Plate 402403 Sholder Bolt 1397 Humpty Clamp WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 27: Left-Hand Lever Arm Assembly
ITEM PARTS # DESCRIPTION QTY. 391148 LH Lever Arm Weldment 391121 PUB Core Motor Spacer Assembly 390535 Core Drive Motor 391108 PUB Square Drive 391105 PUB Motor Mount Pin 391156 PUB Motor Handle/Guard WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 28: Right-Hand Lever Arm Assembly
PARTS (RIGHT-HAND LEVER ARM ASSEMBLY) ITEM # PARTS # DESCRIPTION QTY. 391145 RH Lever Arm Weldment 320221 Idler Bearing Assembly WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 29: Core Assembly
PARTS (CORE ASSEMBLY) ITEM # PARTS # DESCRIPTION QTY. 800351 60” Broom Core 391157 Idler Bearing Assembly 200456 24” x 60” Wafer Kit WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 30: Water System
514411 Hose Clamp, SAE 10, ½ TO 1-1/16 200407 PUB Water Hose, Tank to Ball Valve 200408 PUB WATER HOSE, PUMP TO CHECK VALVE 200409 PUB Water Hose, Check Valve to Spray Bar WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 31: Electrical For Water System
PARTS (Electrical for Water System) ITEM # PARTS # DESCRIPTION QTY. 200432 Power Harness (battery) 200430 Power Harness (Cig. Outlet) 200436 Control Box 200434 Main Harness 390047 Water Pump WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 32: Schematics (Hydraulic Diagram)
Adapter, 12FS-12ORB STR 391199 PUB Motor In & Out Hose 391198 PUB Inlet & Outlet Hose Adapter, 12 fs - 12 orb 90deg. 513310 (not shown) Stubby Male Hydraulic Coupler 391180 (not shown) WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 33: Valve Breakdown
VALVE BREAKDOWN ITEM # PARTS # DESCRIPTION QTY. 200563 Anticav Valve 200564 Relief Valve 200565 Flow Control 200266 Compensator WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 34: Service Parts To Stock
SERVICE PARTS TO STOCK DESCRIPTION Bolt on blade Bumper Motor Motor spacer assy Pin guards Idler bearing 24” wafers Core adjustment pin Motor mounting pin Front and side rubber skirts WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... -
Page 35: Notes
__________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________________ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov BBA60P... - Page 36 CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are know to the State of California to cause cancer, birth defects, and other reproductive farm. For more information, vist: www.P65Warnings.ca.gov WARNING: Battery posts, terminal and related accessories contain lead and lead compounds, chemicals know to the State of California to cause cancer, birth defects, and other reproductive farm.
