Summary of Contents for SycoTec easyDrive 4428

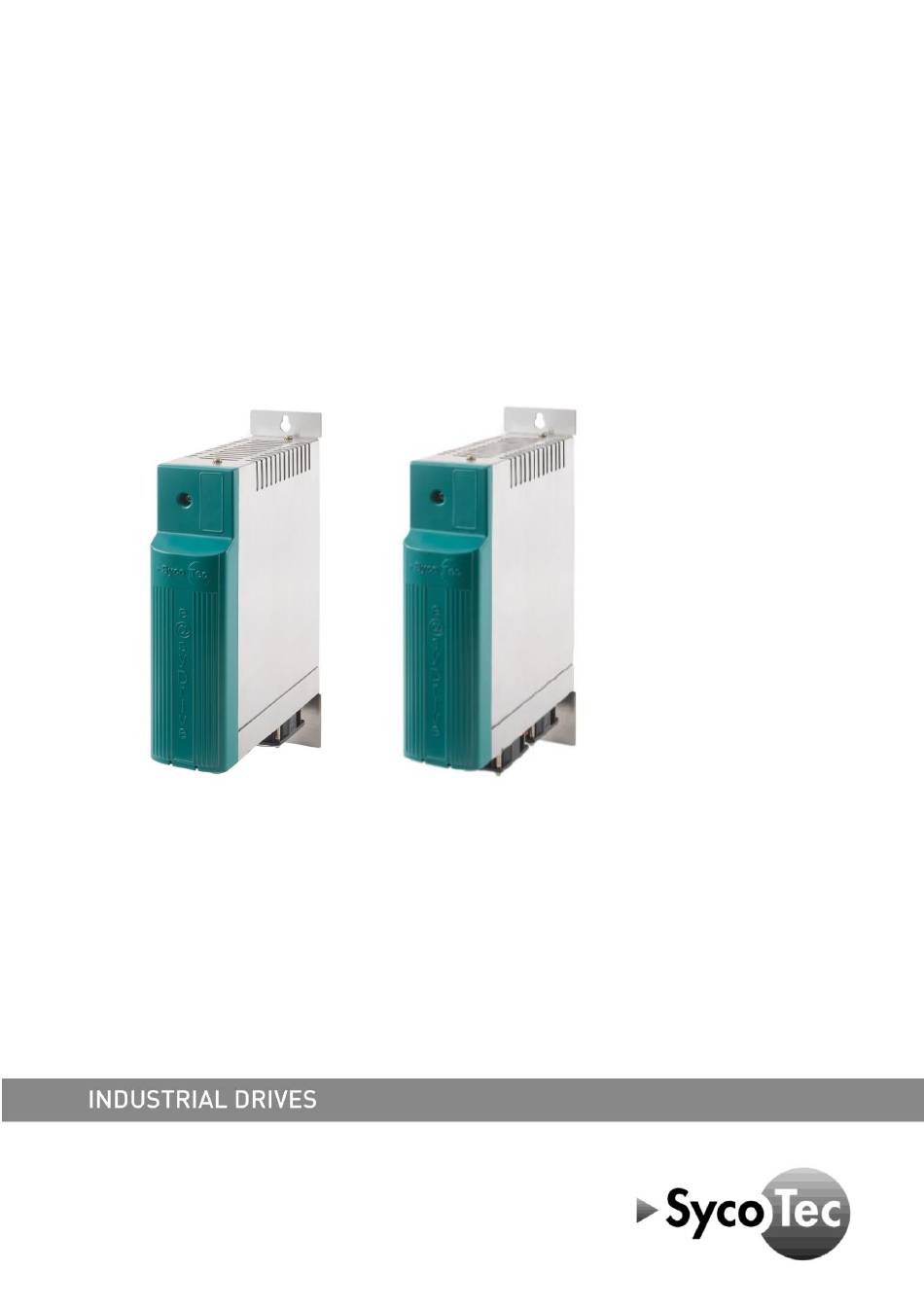

- Page 1 Operating Manual Power Supply e@syDrive® 4428, 4429...
-
Page 3: Table Of Contents
Table of Contents USER INFORMATION ........................4 SYMBOLS USED ..........................4 IMPORTANT DEFINITION ........................ 4 ABBREVIATIONS ..........................5 SCOPE OF DELIVERY ........................6 SAFETY INSTRUCTIONS AND WARNINGS ..................6 APPROPRIATE USE AND POTENTIAL APPLICATIONS ..............7 INSTALLATION, COMMISSIONING AND OPERATION ..............8 TRANSPORT, STORAGE, MAINTENANCE AND DISPOSAL ............... -
Page 4: User Information
1 User Information Symbols Used Operating manual / unit Indicates a hazardous situation that can directly cause death or serious injury. DANGER Indicates a hazardous situation that can cause damage to property or moderate WARNING to serious injuries. Indicates a hazardous situation that can cause damage to property or mild to ATTENTION moderate injuries. -
Page 5: Abbreviations
Abbreviations Ampere Alternating current American Wire Gaude °C Degrees Celsius Circa Complete Drive Module Communauté Européenne Canadian Standards Association Direct current German Industrial Standards European Community Electromagnetic compatibility English Europäische Normen European Union Seal of approval High frequency Hectopascal Hertz Protection category Kilogram Outer conductor... -
Page 6: Scope Of Delivery
Modifications and improvements to the product as a result of new technical developments are possible. This does not imply any right to retrofitting of existing units. SycoTec assumes no responsibility for damage arising through: • external influences (poor quality of the media or faulty installation, natural phenomenons, etc.) •... -
Page 7: Appropriate Use And Potential Applications
Risk of serious damage to property and personal injury due to moving machine parts The power supplies e@syDrive® 4428 and 4429 supplies the SycoTec HF inverters. These are controlling dangerously rotating mechanical parts. Failure to follow the instructions provided in this operating manual could result in serious damage to property, personal injuries or even death. -
Page 8: Installation, Commissioning And Operation
Installation, Commissioning and Operation The installation must only be carried out by qualified staff with electrotechnical training. The commissioning must only be carried out by qualified staff with sufficient knowledge in the fields of electrical engineering and drive technology. The power supply and accessories must be checked for damage before commissioning. The following requirements must be considered for the installation and operation of the devices: •... -
Page 9: Transport, Storage, Maintenance And Disposal
Changes to the device can lead to damage to property or personal injury. •In the event of modifications by third parties, the licences become null and void. • Use only SycoTec original parts and spare parts. Disposal of equipment and accessories after use... -
Page 10: Technical Data
4 Technical Data Type Plates Position of the rating plate Type of power supply Serial number Material number Input power Symbols Output power (see chapter 1.1) Type of power supply Serial number ... -
Page 11: Power Supply E@Sydrive® 4429 (Material No. 1.002.2515)
4.2.2 Power supply e@syDrive® 4429 (material no. 1.002.2515) Dimensions width: 75 mm, height: 337.5 mm, depth: 215 mm for installation in cabinet Weight approx. 2.6 kg Standards tested according to DIN EN 62368-1 and DIN EN 61800-5-1 CSA tested acc. UL 508C EMC according to EN 61800-3 Protection category enclosure type IP 20 according to DIN EN 60529... -
Page 12: Power Supply E@Sydrive® 4429
4.3.2 Power supply e@syDrive® 4429 Ambient conditions Permitted in interior rooms Ambient operating temperature 5 - 50°C (41 -122 °F) Relative humidity max. 80% Max. altitude 2,000 m Installation category Cat. II (Overvoltage category) Protection class I (DIN EN 62368-1 and 61800-5-1) Pollution degree Storage and Transport Conditions Ambient operating temperature... -
Page 13: Scope Of Models
Scope of Models Type of power supply e@syDrive® 4428 e@syDrive® 4429 Enclosed type (IP 20) REF 1.001.2770 REF 1.002.2515 Power input 100-240 V, 50/60 Hz 100-240 V, 50/60 HZ Power output 70 V DC, 5 A, 350 VA 70 V DC, 14 A, 1000 VA 4310 IP 00 (REF 2.001.2287) 4625 IP 20 (REF 2.002.1054) Matching types of... -
Page 14: Assembly And Installation
5 Assembly and Installation ATTENTION Risk of damage to property and personal injury Disregarding the safety and warning instructions can lead to damage to property or personal injury. Before installing and commissioning this device, the safety instructions and warnings under chapter 3 must be read carefully. -
Page 15: Electrical Installation
Electrical Installation DANGER Damage due to incorrect mains connection Incorrect mains connection can destroy the devices and cause serious damage to property and personal injury. • Installation of the power supply has to comply with valid safety regulations. • If no power lead with plug is used an electrical disconnector must be installed between main supply and power supply. -
Page 16: Electrical Connections
Electrical Connections Wiring Information: • Screw type: Flat • Wire size: max. 2.5 mm² (13AWG) • Torque: max. 0.4 Nm 5.6.1 Voltage input 3-pin PCB terminal block (2.5 mm² (13AWG)) Meaning Main supply Neutral conductor Protective conductor Connection example:... -
Page 17: Voltage Output
5.6.2 Voltage output 4-pin PCB terminal block (2.5 mm² (13AWG)) Meaning PE terminal Protective conductor DC voltage output - DC voltage output - DC voltage output + DC voltage output + Connection example: WARNING Disturbing ground loops Incorrect connection of protective earth connections may cause disturbing ground loops and malfunctions. -
Page 18: Warranty Conditions
12 months from the date of sale certified by the vendor. In the event of justifiable complaints, SycoTec shall supply spare parts or carry out repairs free of charge under warranty. SycoTec accepts no liability for defects and their consequences which have arisen or could have arisen as a... - Page 20 (DE = original)
