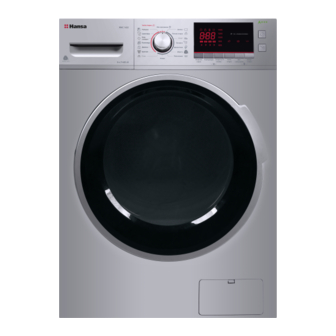

Hansa WHC 1453 SC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WHC 1453 SC
(AWC814SS)
USER MANUAL
WASHING MACHINE
Please read these instructions carefully before you start using the washing
IO-WMS-0458
(03.2017./1)
machine!
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WHC 1453 SC and is the answer not in the manual?

Questions and answers

Related Manuals for Hansa WHC 1453 SC

Summary of Contents for Hansa WHC 1453 SC

  • Page 1 WHC 1453 SC (AWC814SS) USER MANUAL WASHING MACHINE Please read these instructions carefully before you start using the washing machine! IO-WMS-0458 (03.2017./1)

  • Page 2: Table Of Contents

    CONTENTS Basic information ........................3 Safety instructions ......................4 Install the washing machine ..................8 Explanation of the laundry symbols on clothes labels ..........10 Description of control panel and display .................11 Special programmes ....................17 Operating the washing machine....................18 Table of the wash programmes..................19 Troubleshooting...................20 Maintenance and cleaning..................22 Practical advice ....................20...

  • Page 3: Basic Information

    BASIC INFORMATION Dear Customer, from now on washing will be easier than ever. The Hansa washing machine combines very easy operation and perfect washing performance. After reading these instructions, operating the appliance will be easy. Before being packaged and leaving the factory, the washing ma- chine was thoroughly checked with regard to safety and functionality at test stations.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS In case of damage to the fixed power cable, the cable should be replaced by a qualified person at the manu- facturer‘s or in a specialist workshop in order to avoid hazards. Laundry Use only laundry and care products intend- detergents ed for washing machines.
  • Page 5 SAFETY INSTRUCTIONS Control panel Protect the control panel from water. Do not deposit wet laundry on the appliance! Transport Disconnect the washing machine from the power supply before transporting it. The washing machine must be adequately se- cured for transport (use transport safety de- vices).
  • Page 6 SAFETY INSTRUCTIONS Checking the stability After positioning and levelling the washing machine you must check, if the machine stands firmly on all four feet. To do so, press down on each corner of the washing machine to see, if it moves. The correct horizontal position of the washing machine is an essential condition for a safe, reliable and smooth operation.
  • Page 7 SAFETY INSTRUCTIONS This appliance can be used by children from the age of eight (8) years or persons with physical, sensory or mental handicaps, or those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and understand the possible hazards.

  • Page 8: Install The Washing Machine

    INSTALL THE WASHING MACHINE I. Remove the transport safety devices (keep the transport safety devices, for exam- ple in case of a removal). Unscrew the 4 blocking screws Close the holes with the stoppers with a screwdriver. supplied in the bag with the accesso- Remove the transport supports ries.
  • Page 9 INSTALL THE WASHING MACHINE III. Water connection Use new and complete hoses including the nec- essary equipment. Do not re-use old hoses. The water supply hose with the seals is in the washing drum. Min. water pressure 0.05 MPa (0.5 bar), max. water pressure 1 MPa (10 bar). Supply the washing machine with cold water only.
  • Page 10 MEANING OF THE WASHING SYMBOLS ON THE INNER CLOTHING LABELS Normal wash Normal wash Normal wash I. Washing DO NOT at 60 at 40 ° at 90 ° wash! ° Delicates Handwash II. Dry-cleaning all except only DO NOT Solvents petroleum dry-clean! III.
  • Page 11 MEANING OF THE WASHING SYMBOLS ON THE INNER CLOTHING LABELS Detergent dispenser Control panel Power plug Handle Drain hose Cover of the pump filter Detergent dispenser Accessories: Accessories Inlet hose Stopper for the Stopper for the Inlet hose Warm Outlet hose transport hole hole (option) water (option)
  • Page 12 MEANING OF THE WASHING SYMBOLS ON THE INNER CLOTHING LABELS Quickstart: 10. Push the Start/Pause button 1. Installation of the washing machine 9. Select the programme. 2. Open the door and put in the laundry. 3. Add the detergent 8. Push the On/Off button 4.

  • Page 13: Description Of Control Panel And Display

    DESCRIPTION OF CONTROL PANEL AND DISPLAY ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ 1. Programme button 2. Display 3. Time Delay button 4. Temperature selection button 5. Spin speed button 6. Button for the additional Rapid Wash 7.
  • Page 14 DESCRIPTION OF CONTROL PANEL AND DISPLAY 1. Programme button The user can select an appropriate wash programme according to the degree of soiling, the type and amount of the laundry in order to ensure a better and more efficient result. Once a wash programme has been activated, the turning of the programme button to another position will be indicated by a sound signal, but the parameters of the initially selected wash programme will not be changed.
  • Page 15 DESCRIPTION OF CONTROL PANEL AND DISPLAY 6. Button for the additional Rapid Wash function The rapid wash function shortens the total washing time and reduces the energy and water consumption. This function is recommended for heavily soiled laundry. NOTE 1: The Rapid Wash function is not available for all wash programmes (see: Table of the wash programmes).
  • Page 16 DESCRIPTION OF CONTROL PANEL AND DISPLAY 4+5. Sound signal On / Off The sound function is switched on /off by simultaneously pressing and holding the temper- ature and spin speed selection buttons for 3 seconds. 7+8. Child Lock This function blocks the function buttons in order to prevent a modification of the settings or the interruption of the running wash programme.

  • Page 17: Special Programmes

    SPECIAL PROGRAMMES 1. Baby comfort wash programme This wash programme is intended for children and persons with sensitive skin. The main wash is always at 30°C (the available temperature settings are 40/30/20/-- Cold) and is followed by two rinsing cycles. 2.

  • Page 18: Operating The Washing Machine

    OPERATING THE WASHING MACHINE I. Selection of the drying programme 1. Set the programme button to the required position (see: Table of the wash programmes below). 2. In order to adjust the wash programme to individual requirements, the temperature and spin speed settings can be modified or available additional functions be selected. 3.
  • Page 19 TABLE OF THE RINSE PROGRAMMES * - Standard cotton wash programmes at 60°C and 40°C. These wash programmes are suitable for normally soiled laundry. They are also the most efficient wash programmes in terms of power and water consumption for this type of laundry. Attention: The actual water temperature can differ from the indicated cycle temperature.

  • Page 20: Table Of The Wash Programmes

    TROUBLESHOOTING Problem Probable cause / Solution The washing machine does not - Open the water tap. - Clean the filter on the water supply hose. work. - Close the door of the washing machine. - Push the Start/Pause button. Water runs out - Connect the water hose correctly.
  • Page 21 TROUBLESHOOTING Display of the error codes of the washing machine The washing machine has an alarm system, which helps solving minor problems connected with incorrect operation by means of “ERROR CODES” indicated in the display. With the ERROR CODES you can locate the defect and establish the cause. If an error is found, the display shows information in accordance with the following table: Display Cause...
  • Page 22 CLEANING AND MAINTENANCE Do not use any solvents or abrasive cleaners (e.g. cleaning agents or creams) for cleaning the housing and the plastic components of the washing machine! Use only gentle liquid agents and soft cloths. Do not use sponges. Clean the pump filter after about every 20 wa- I.

  • Page 23: Practical Advice

    PRACTICAL ADVICE We recommend the use of common powder or liquid detergents for all temperature ranges in accordance with the instructions of the manufacturer of the respective detergent indicated on the packaging. I. Detergents and Follow the instructions of the detergent manufacturer. Fill the detergent into the dispenser compartment marked with finishing agents the symbol...
  • Page 24 PRACTICAL ADVICE V. Water hardness Hard water causes limescale formation in the washing machine. Your waterworks will inform you about the hardness of your water. We recommend to use a water softening agent for each washing. VI. Power outage The programme is not deleted by disconnecting the washing machine from the power supply or a power outage.
  • Page 25 PRACTICAL ADVICE The washing machine is equipped with a locking system which pre- IX. Door lock vents the opening of the door during the wash cycle. At the end of the wash programme, the machine automatically unlocks the door. In order to open the door of the washing machine during the wash programme, push the PAUSE button and wait about 2 minutes.

  • Page 26: Technical Data

    TECHNICAL DATA WHC 1453 SC (AWC814SS) - Model - Rated voltage 220-240V / ~50Hz. - Rated power 2000 W - Overload protection 10 A - Drum capacity max. 8 kg - Water pressure min. 0.05 MPa (0.5 bar) max. 10 MPa (1 bar)

  • Page 27: Product Data Sheet

    Regulation (EU) no. 1015/2010 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for household washing machines). Hansa Name or trademark of the supplier Name of the model WHC 1453 SC (AWC814SS) Rated capacity 8.0 kg Energy efficiency class A+++...
