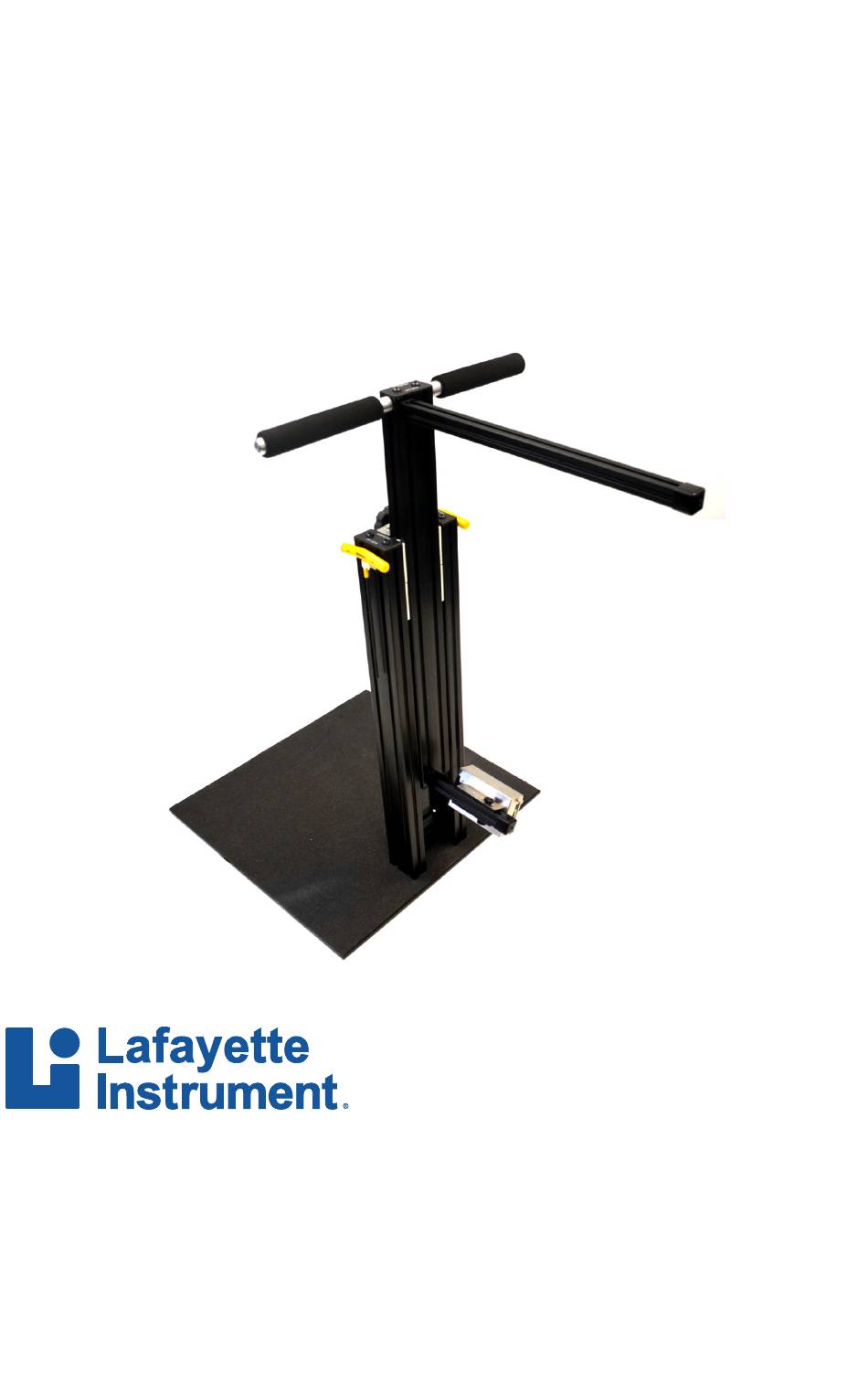

MAN01166
Model 01166
User Instructions
Dynamometer
Support Stand
User Instructions
3700 Sagamore Parkway N
Lafayette, IN 47904
Tel: (765) 423-1505
info@lafayetteinstrument.com
www.lafayetteinstrument.com
www.lafayetteinstrument.com . info@lafayetteinstrument.com
© 2022 Lafayette Instrument Company, Inc. All Rights Reserved: Rev 2.8.22
Advertisement
Summary of Contents for Lafayette Instrument 01166
- Page 1 MAN01166 Model 01166 User Instructions Dynamometer Support Stand User Instructions 3700 Sagamore Parkway N Lafayette, IN 47904 Tel: (765) 423-1505 info@lafayetteinstrument.com www.lafayetteinstrument.com www.lafayetteinstrument.com . info@lafayetteinstrument.com © 2022 Lafayette Instrument Company, Inc. All Rights Reserved: Rev 2.8.22...
-
Page 2: Table Of Contents
Symbol Glossary Assembly Instructions Step 1: Place the 01166 on the floor, or, if available, a sturdy table. Step 2: Use the provided T-Handle Hex Wrenches to remove the 4 Flat Head Screws from the bottom of the Stand. These 4 screws will be used to fasten the Base to the Stand. - Page 3 Examiner Step 5: The 01166 Test Stand has anti-slip strips on the bottom of the Base to prevent sliding. These rubber, ant-slip strips work on hard flooring and carpeting. On hard floors, they may need to be clean with any mild cleaner on occasion to restore the anti-slip grip.
-
Page 4: Stand Components
MMT Support Stand Model 01166 Stand Components A: Knob secures vertical slide rail for testing. B: T-Hex wrenches for securing fasteners C: Nut adjusts vertical slide tension - set at factory D: MMT Casing E: Support rods can be used to help with bracing the platform during use in different positions. -
Page 5: Connecting Arm
User Instructions Using Connecting Arm for MMT Casing Step 1: Remove wingnut to expose arm bolt. Step 2: Replace plastic washer on arm bolt. Step 3: Rotate arm to connect to arm bolt. Step 4: Fully tighten arm bolt using the provided hex tool. www.lafayetteinstrument.com . -
Page 6: Securing Mmt Casing
MMT Support Stand Model 01166 Securing MMT Casing Menu Buttons Screen Stirrup Top Buttons Faceplate knobs Step 1: Rotate knobs to loosen faceplate. Step 2: Open faceplate. 3700 Sagamore Pkwy N Lafayette, IN 47904 . Tel: (765) 423-1505... - Page 7 User Instructions Step 3: Insert MMT into faceplate and close. Take care to match the stirrup base with the appropriate hole on the faceplate. Step 4: Tighten faceplate knobs. Step 5: Slide MMT Casing onto appropriate connecting arm and tighten knob. www.lafayetteinstrument.com .
-
Page 8: Using The Stand
MMT Support Stand Model 01166 Using the Stand Step 1: Set up the stand to record the desired force. Depending upon test setup, support rods can be incorporated to brace the platform. Note: If support rods are not used, clinician must stand on the base to provide required stability. - Page 9 User Instructions Example setup for Hip Abduction test Example setup for Middle Deltoid test www.lafayetteinstrument.com . info@lafayetteinstrument.com...
-
Page 10: Symbol Glossary
MMT Support Stand Model 01166 Symbol Glossary The following glossary describes the symbols included on the device label. Some symbols may not apply to this device. Manufacturer Authorized Representative Indicates the medical device manufacturer Indicates authorized representative in ISO 15223-1:2016 Ref. 5.1.1 the EU ISO 15223-1:2016 Ref. - Page 11 User Instructions This page intentionally left blank. www.lafayetteinstrument.com . info@lafayetteinstrument.com...
- Page 12 Terms and Conditions MMT Support Stand Model 01166 Form, or call Lafayette Instrument, you will receive a Return #. Your Return # number will be good for 30 days. Address the shipment to: LIC Worldwide Headquarters Lafayette Instrument Company Toll-Free: (800) 428-7545 (USA only)
