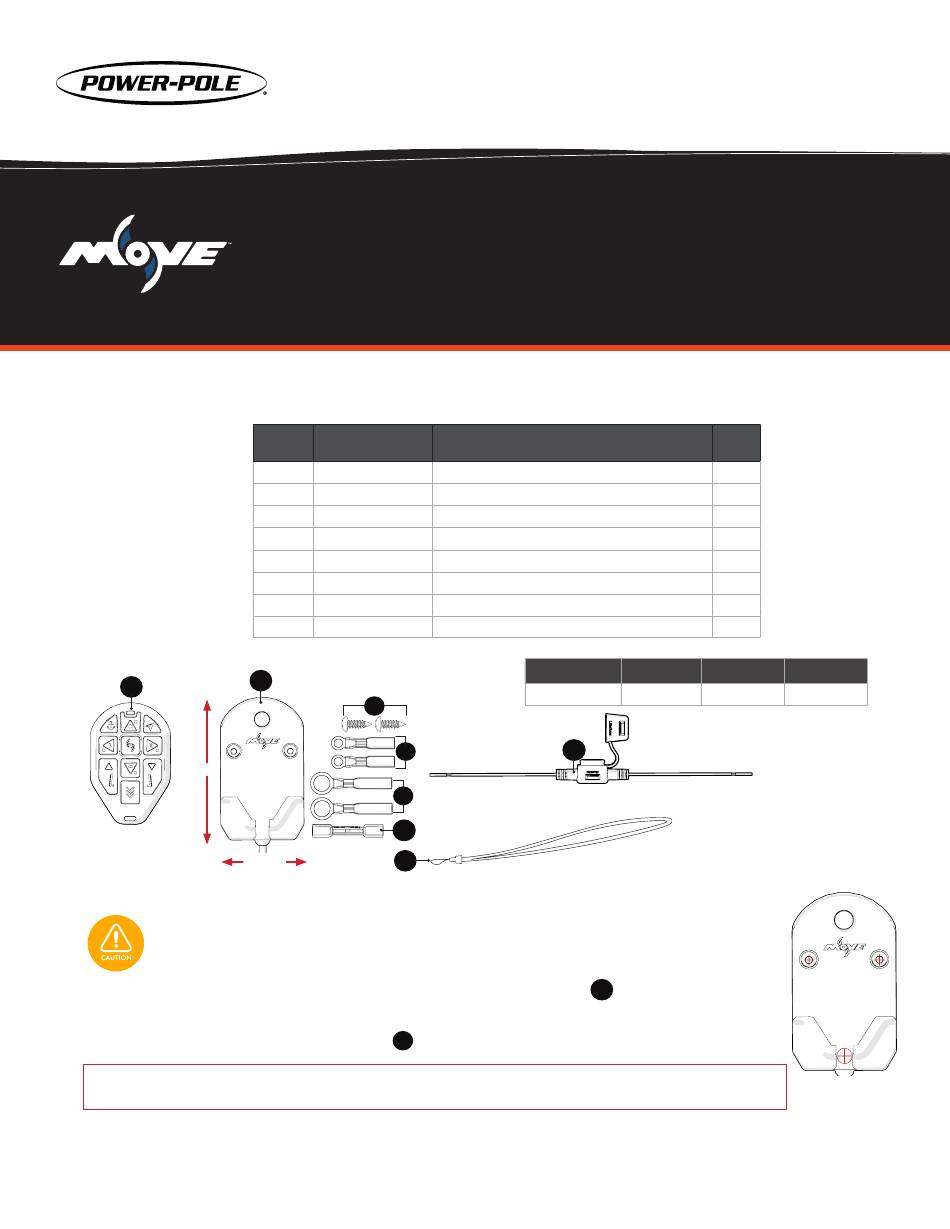

JL Marine POWER-POLE MOVE AVG-MA-0408 Instructions

WIRELESS HYBRID REMOTE AND CHARGING CRADLE
INSTRUCTIONS
TOOLS
INCLUDED HARDWARE
• Fine-tip Marker
• Electric Drill
A
• 7/32" Drill Bit
B
• 7/64" Drill Bit
C
• #2 Phillips-Head Bit
D
E
F
G
H
B
A
4 1/4"
2 3/8"
DRILL MOUNTING HOLES
Check the area beneath where the Charging Cradle will be mounted to ensure there are no hoses, wires, lines,
tanks or other sensitive components.
STEP 1 Choose a flat surface with adequate space to mount the Charging Cradle
STEP 2 Lay mounting template in place, mark and drill routing hole for power wire using a 7/32" Drill Bit.
STEP 3 Mark and Drill mounting holes for Screws
IMPORTANT! If installing to gel-coat, follow the drilling procedure in Appendix A of the Installation & Owner's
Guide to ensure you do not crack or chip the gel-coat.
Need help? Contact our Customer Service Team at 1 + 813.689.9932 Option 2
LABEL ITEM #
AVG-MA-0408 Wireless Hybrid Remote
SA-0045 Wireless Hybrid Remote Charging Cradle
AVG-MH-SC-0271 #8 x 1/2" Panhead Sheet Metal Screw
AVG-MP-1014 Heat Shrink Ring Terminal, 18-22 AWG, #10
AVG-MP-1013 Heat Shrink Ring Terminal, 18-22 AWG, 3/8"
AVG-MP-1002 Heat Shrink Butt Connector, 18-22 AWG
AVG-MP-0935 Fuse Holder, ATC, and ATO 18 AWG Red Lead
rc-lanyrd-float Lanyard
C
D
E
F
H
using a 7/64" Drill Bit.
C
DESCRIPTION
Dimensions Cord Length Wire Gauge
2 3/8" x 4 1/4" ~4 ft.
G
.
B
QTY.
1
1
2
2
2
1
1
1
Fuse Size
20 AWG 2 Amp Mini
