Scewo BRO V1.1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

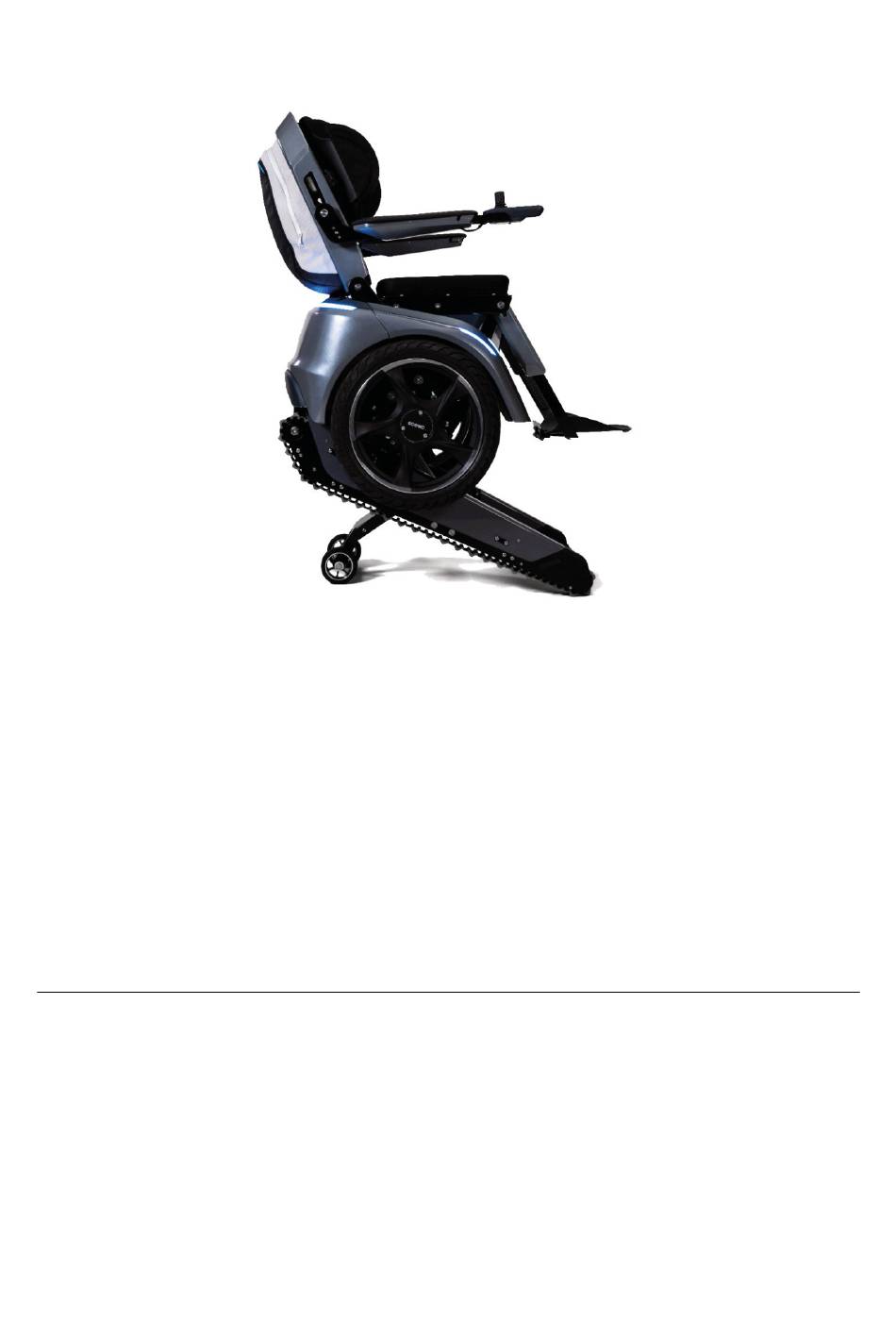

Scewo BRO V1.1
User Manual
Publication date 17 October 2023
Valid as of software version: 23.9.11
BRO with securement points enabling the chair to be secured when travelling as a passenger in a car
Basic UDI-DI: 7649992967BRWF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRO V1.1 and is the answer not in the manual?

Questions and answers

Related Manuals for Scewo BRO V1.1

Summary of Contents for Scewo BRO V1.1

  • Page 1 Scewo BRO V1.1 User Manual Publication date 17 October 2023 Valid as of software version: 23.9.11 BRO with securement points enabling the chair to be secured when travelling as a passenger in a car Basic UDI-DI: 7649992967BRWF...
  • Page 2 Manufacturer Scewo AG Technoparkstrasse 7 8406 Winterthur Schweiz Tel: +41 44 500 86 03 E-Mail: info@scewo.ch Web: www.scewo.com UID: CHE-315.209.303...

  • Page 3: Table Of Contents

    Scewo BRO V1.1 Scewo AG Table of Contents Revision History ........................7 1.
  • Page 4 Scewo AG Scewo BRO V1.1 3.8.1. Attach/Remove the Head Support ............. . . 29 3.8.2.
  • Page 5 Scewo BRO V1.1 Scewo AG 5.6.9. Special Stair Climbing Situations ..............81 5.7.

  • Page 7: Revision History

    Scewo BRO V1.1 Scewo AG REVISION HISTORY Revision History Revision 1 4 Apr 2023 Maike Neubauer Neues Layout. Keine inhaltlichen Änderungen Revision 2 8 May 2023 Pascal Buholzer Update für Software Version 23.4.3. Diverse kleinere Vereinfachungen. Revision 3 04 Jul 2023 Pascal Buholzer Getränkehalter und magnetischer Smartphonehalter hinzugefügt.
  • Page 8 Scewo BRO V1.1 WELCOME Congratulations on your purchase of Scewo BRO, the world’s coolest power wheelchair! Like a good friend, it is intended to be a reliable companion in your day-to-day life and to provide you with a great deal of freedom and independence. We are already excited to hear about your adventures together.

  • Page 9: Important Information

    The Scewo BRO wheelchair is designed for both indoor and outdoor use. It drives on two wheels in a self-balancing manner and can climb straight stairs. The tracks have been designed to climb stairs and are for use on solid ground only.

  • Page 10: Key Specifications

    The most common contraindications to using a self-balancing and stair-climbing wheelchair are as follows: • A suitability test for Scewo BRO has not been completed: Prior to use, it is essential that the user completes a training course and passes the suitability test in order to minimise the risks associated with using the wheelchair.

  • Page 11: Technical Support

    The warranty conditions signed together with the purchase contract apply at all times. The Scewo BRO power wheelchair is supplied with a product warranty. The batteries and charger supplied are also covered by a warranty. The warranty periods apply as of the date of delivery.

  • Page 12: Obligation To Report Incidents That Have Occurred With The Device

    Scewo BRO is a class I medical device. If you notice any faulty or even dangerous performance while using the device, you are obliged to report this to Scewo without delay. This enables us to alert other users and initiate any necessary measures and improvements.

  • Page 13: Product Description

    Scewo BRO V1.1 Scewo AG 2. PRODUCT DESCRIPTION 2.1. OVERVIEW Side view, seat up Side view, seat down Figure 1. Overview of components The standard wheelchair model consists of the following components. . The integrated seat lift enables the seat to be lowered:...

  • Page 14: Labels

    Figure 2. Name plate 2.2.2. USE ONLY AFTER TRAINING AND EXAMINATION An introductory training session and exam must be provided by Scewo or an official reseller before the device, and in particular the stair mode, may be used. See also BRO Certificate [12] Figure 3.

  • Page 15: Securement Points

    Scewo BRO V1.1 Scewo AG Figure 4. Labelling of main switch and brake release 2.2.4. SECUREMENT POINTS The label indicates where the wheelchair must be secured during transport in a vehicle specially equipped for this purpose. Each securement point is labelled accordingly. For a description of how...

  • Page 16: Bro-Backpack And Valuables Pouch

    Scewo AG Scewo BRO V1.1 (a) Variant 1 (b) Variant 2 Figure 7. Crushing hazard 2.3. BRO-BACKPACK AND VALUABLES POUCH Do not transport fragile items in the backpack Do not transport any items in the backpack that can break easily. Driving over bumpy terrain can cause product damage due to impact.
  • Page 17 Scewo BRO V1.1 Scewo AG switched on. You can dim the lights or switch them off completely using the app. The front lights are white. If you apply the brakes forcefully, the rear light lights up in bright red to alert oncoming road users (brake light).

  • Page 18: Turn Indicator

    2.6. LIFTING POINTS Scewo does not advise lifting the device, but rather recommends using a ramp to lift it onto lifting platforms or other similar elevated obstacles. Never lift while in drive mode...

  • Page 19: Adapting The Wheelchair To The User

    A specialist must adjust the wheelchair for you before you use it for the first time. This is carried out either at the reseller where you purchased your wheelchair or at Scewo’s headquarters. This section contains further information on the various settings.

  • Page 20: Back Support

    Scewo AG Scewo BRO V1.1 3.2. BACK SUPPORT 3.2.1. ADJUSTING THE ANGLE OF THE BACK SUPPORT ELECTRICALLY The angle of the back support can be adjusted electrically via the app or the control panel. You can find out how to do this in the app instructions and in the section on...

  • Page 21: Removing The Back Support

    Scewo BRO V1.1 Scewo AG (a) Not secure (red marking) (b) Secure Figure 10. Make sure that the back support locking mechanism is securely in place. 3.2.3. REMOVING THE BACK SUPPORT The back support can be detached completely from the wheelchair via a quick release system.

  • Page 22: Mechanical Adjustment Of The Arm Support Height

    Scewo AG Scewo BRO V1.1 (a) Screws to be loosened in order to remove (b) Screws to be loosened in order to remove the arm support the back support inlay Figure 11. Removing the arm support 3.3.2. MECHANICAL ADJUSTMENT OF THE ARM SUPPORT HEIGHT The height of the arm supports can be adjusted mechanically.

  • Page 23: Mechanical Adjustment Of Arm Support Width

    The width of the space between the arm supports can be adjusted mechanically. This requires the use of compatible spacers and screws of a corresponding length, which are available from any Scewo reseller. To do so, proceed as follows: Dismantle the arm support and pull it outwards (see...

  • Page 24: Folding The Arm Supports Up And Down

    Scewo AG Scewo BRO V1.1 The position of the joystick/control panel can be adjusted mechanically to accommodate the length of your forearm. To do so, proceed as follows: Loosen the two screws (Figure 15, “Screws to be loosened to adjust the position of the control panel (loosen on both sides)”...

  • Page 25: Adjusting The Angle Of The Leg Support Electrically

    Scewo BRO V1.1 Scewo AG Figure 16. Set screws to adjust the length of the leg supports 3.4.2. ADJUSTING THE ANGLE OF THE LEG SUPPORT ELECTRICALLY The angle of the leg support can be adjusted electrically. You can find out how to do this in the app instructions.

  • Page 26: Foot Supports

    Scewo AG Scewo BRO V1.1 3.5. FOOT SUPPORTS 3.5.1. MECHANICAL ADJUSTMENT OF THE FOOT SUPPORT ANGLE The angle of the foot supports can be set mechanically by adjusting or replacing the screws and spacers (e.g. washers). Ensure that the screws do not protrude beyond the edge guard of the front edge at the bottom.

  • Page 27: Mechanical Adjustment Of The Seat Depth

    Scewo BRO V1.1 Scewo AG Always recalibrate the center of gravity after adjusting the seat lift in drive mode If the seat lift has been adjusted in drive mode, it is absolutely essential that the center of gravity is recalibrated (see Calibrating the Center of Gravity [42] Otherwise, this could impair the wheelchair’s driving performance.

  • Page 28: Seat And Back Cushions (Accessory)

    It is important that the seat cushion is firmly attached to the seat surface and not just laid on top of it (risk of slipping). Scewo recommends Velcro strips for this purpose: Attach the supplied self-adhesive Velcro strips to the corresponding sections on your cushion.

  • Page 29: Head Support (Accessory)

    Scewo BRO V1.1 Scewo AG Lower fastening option Upper fastening option Figure 19. Mounting holes for back cushion holders (two initial heights) Adjusting the depth/angle of the back cushion The angle and depth of many back cushions can be adjusted. A range of different adapters or holders are also often available.
  • Page 30 Scewo AG Scewo BRO V1.1 (a) Screws to be loosened in order to remove the textile cover (b) Head support screw attachment Figure 20. Attach/remove the head support...

  • Page 31: Adjusting The Head Support

    3.9. LATERAL THIGH SUPPORTS (ACCESSORY) The lateral thigh supports can be mounted optionally. These supports are installed by an official reseller or directly by Scewo. The thigh supports can be pulled up and away for an easier transfer. The pulled-out support can be attached to the second, remaining support using a magnet (so that it remains easily accessible).

  • Page 32: Magnetic Smartphone Holder "Magic Mount" (Accessory)

    We therefore recommend using a sturdy case and removing the smart- phone or using the standard holder with mechanical locking when driving on terrain where strong impacts are expected. Scewo assumes no liability for damage to the smartphone!

  • Page 33: Cup Holder "Drink Dock" (Accessory)

    Scewo BRO V1.1 Scewo AG Figure 24. Magnetic smartphone holder Warning for people with a pacemaker Magnets can affect the function of pacemakers and implanted defibrillators. As a wearer of such devices, keep the distance recommended by the manufacturer to the magnets on the parts marked with this sticker.

  • Page 34: Placing Drinks In The Drink Dock

    Scewo AG Scewo BRO V1.1 Figure 26. Cup holder "Drink Dock" Careful with hot liquids! Very hot liquids (e.g. boiling water, hot tea, etc.) can deform the material or cause burns if they spill over. Do not lean on cup holder! Do not lean on the cup holder as it could break due to the high forces.

  • Page 35: Attach/Remove The Drink Dock

    Scewo BRO V1.1 Scewo AG 3.11.2. ATTACH/REMOVE THE DRINK DOCK Loosen the two screws on the desired arm sup- port. Slide the cup holder backwards into the exist- ing slots until it is com- pletely locked into place. The hole for the screws must be completely en- closed by the “Drink...

  • Page 36: Control Panel

    Scewo AG Scewo BRO V1.1 4. CONTROL PANEL With the control panel, the wheelchair can be turned on and off, and various modes and functions can be selected. The following sections will explain how you can switch between different driving modes and settings, as well as some prompts for when you need to do something with the joystick.

  • Page 37: Overview

    Scewo BRO V1.1 Scewo AG 4.1. OVERVIEW The control panel consists of the joystick, the touchpad, an LED ring, and multiple buttons and status indicators. A smartphone holder is also available, which ensures that the installed apps are displayed clearly.

  • Page 38: Battery Level

    Scewo AG Scewo BRO V1.1 A number of different icons may light up on the control panel. Figure 28, “All available icons and indicators” [38] displays all of the icons: Drive mode icon Speed level icon Error indicator 1 4. Error indicator 2 5.

  • Page 39: Open Menu

    Scewo BRO V1.1 Scewo AG 4.2. OPEN MENU You need to call up the menu first in order to switch between the different operating modes. Proceed as follows: • Using the menu button: Press the button once briefly. The menu now appears.

  • Page 40: User Interaction Prompts

    Scewo AG Scewo BRO V1.1 • Using the touchpad (slide): Slide your finger from the center towards your desired option. Hold your finger at the edge of the touchpad for a few seconds until the LED ring is filled with the new colour.

  • Page 41: Warning Indicator

    Scewo BRO V1.1 Scewo AG 4.5. WARNING INDICATOR A warning is indicated by an orange circle. The control panel may also vibrate. Pay attention to your driving style! Figure 32. Warning of dangerous situations - Pay attention to the warnings for your current driving situation! 4.6.

  • Page 42: Drive Mode Settings

    Scewo AG Scewo BRO V1.1 dexterity. You can still use the joystick to access all key functions. Proceed as follows to deactivate the touchpad: Pull over somewhere safe. Press the menu button five times in quick succession. The menu icon will light up in the following colours depending on the touchpad status: •...

  • Page 43: Braking Behavior Setting

    The braking behavior depends on your chosen “Fast Brake” setting, which can be changed in the app. “Fast Brake” is activated by default. “Fast Brake” can be deactivated for smoother braking. Scewo recommends deactivating “Fast Brake” for people who are not at increased risk of the joystick slipping out of their hands while driving.

  • Page 44: Maximum Speed In Drive Mode

    Scewo AG Scewo BRO V1.1 4.8.3. MAXIMUM SPEED IN DRIVE MODE Country-specific maximum speed The maximum permissible speed is programmed prior to delivery to 6 km/h or 10 km/h depending on the country. The maximum permissible speed is 6 km/h in most EU countries.
  • Page 45 Scewo BRO V1.1 Scewo AG The “Private Ground” function can be activated in the app. This temporarily increases the maxi- mum possible speed to 10 km/h to get around faster on larger private properties. Activating this function is your own responsibility. By activating the function, you automatically confirm that you are on private property where travelling at 10 km/h is permitted.

  • Page 46: Adjusting The Seat Motors Via The Control Panel

    Scewo AG Scewo BRO V1.1 4.9. ADJUSTING THE SEAT MOTORS VIA THE CONTROL PANEL Be aware of crushing hazard When adjusting the seat, be careful not to get yourself jammed in anywhere. Partic- ular care should be taken under tables and benches.

  • Page 47: Operating The Wheelchair

    The wheelchair emits a chime when it is powered on. If this does not happen, the loudspeaker may be damaged. Take the Scewo BRO to maintenance so that the loudspeaker can be checked. The loudspeaker is important in order to warn you...

  • Page 48: Powering Off (Standby)

    Scewo AG Scewo BRO V1.1 5.1.2. POWERING OFF (STANDBY) If not used for more than 24 hours, turn off the main switch. To avoid problems with the battery when switching on, we recommend always switching off the wheelchair using the main switch if it is likely not used for more than 24 hours.

  • Page 49: Reset

    Scewo BRO V1.1 Scewo AG Residual voltage There may be residual voltage left in some of the wheelchair’s components for several minutes after it has been powered off. For this reason, it is normal for some LEDs to continue to emit a small amount of light.

  • Page 50: Overview Of Operating Modes

    Scewo AG Scewo BRO V1.1 5.2. OVERVIEW OF OPERATING MODES The wheelchair can cope with many different obstacles and challenges in day-to-day life. To do so, it must be switched to the correct operating mode. The wheelchair is moved and steered using the joystick on the control panel.

  • Page 51: Park Mode

    Driving in park mode on steep inclines is not permitted From a certain incline or lateral slope, driving in park mode is only possible for- wards and downhill. Otherwise, moving the joystick forward or pulling it back will have no effect on the Scewo BRO.

  • Page 52: Selecting Park Mode

    Scewo AG Scewo BRO V1.1 (a) Side view (b) Display on control panel Figure 38. Park mode 5.3.1. SELECTING PARK MODE To activate park mode, proceed with the following: Open the menu. Select the park mode option. The wheelchair will now initiate the transition and extend the tracks. You may have to move...

  • Page 53: Elevate Mode (Seat Position)

    Scewo BRO V1.1 Scewo AG 5.4. ELEVATE MODE (SEAT POSITION) In park mode, you have the option of raising or lowering the position of the seat. Use the elevate mode for this purpose . Do not raise the seat while on an incline Do not raise your seating position when you are on an incline.

  • Page 54: Select Elevate Mode

    Scewo AG Scewo BRO V1.1 5.4.1. SELECT ELEVATE MODE Elevate mode is a sub-mode of park mode. For this reason, you have to switch to park mode first. Switch to park mode. Open the menu again. Select the elevate mode option.

  • Page 55: Drive Mode (Balancing)

    Scewo AG 5.5. DRIVE MODE (BALANCING) Scewo BRO drives and balances itself on a single axle. By activating drive mode the tracks and support system are raised automatically. In doing so, the unevenness of the surface is automati- cally compensated for as much as possible. The user should always remain seated in a relaxed position and lean against the back support.
  • Page 56 Scewo AG Scewo BRO V1.1 Keep a safe distance from drop-offs (cliffs) In drive mode, always keep a safe distance from drop-off/cliffs (such as stairs) and high steps. Never accelerate sharply towards a drop-off. You could underestimate the braking distance or the wheelchair could move in an unexpected way. There is a danger that you could tumble over the edge and die.

  • Page 57: Activating Drive Mode

    Scewo BRO V1.1 Scewo AG Do not activate drive mode without a seated occupant Drive mode must not be activated without somebody sitting in the wheelchair. Since the center of gravity alters significantly if there is nobody sitting in the wheel- chair, a stable driving behavior cannot be guaranteed.

  • Page 58: Restart After A Balancing Error

    Scewo AG Scewo BRO V1.1 (a) Side view (b) Display on control panel Figure 40. Drive mode 5.5.2. RESTART AFTER A BALANCING ERROR The device monitors a range of critical safety parameters during the balancing mode. In certain circumstances, the wheelchair can enter an emergency shutdown and exit drive mode automati- cally.

  • Page 59: Exiting Drive Mode

    Scewo BRO V1.1 Scewo AG Possible causes of a balancing error Centre of gravity too far to the front/back (e.g. the wheelchair suddenly rolled forward): Adjust the center of gravity (e.g. change the angle of the back support, remove heavy objects from the backpack).

  • Page 60: Turns

    The control panel and the foot supports are more exposed than other parts of the wheelchair and can become trapped and damaged if the clearance is too small. Scewo recommends maintaining the following minimum clearance from fixed objects when you are in drive mode: •...
  • Page 61 Scewo BRO V1.1 Scewo AG Figure 43. Thresholds may only be crossed at a 90° angle Make sure you have enough space when going over thresholds When crossing thresholds in drive mode, the wheelchair may accelerate sharply for a short time afterwards because of the braking effect exerted by the threshold and then move forwards.

  • Page 62: Slopes

    Automatic lowering of the tracks - reduce speed before going up and down slopes When you are driving fast on level ground, Scewo BRO automatically lowers the tracks slightly. If you towards an uphill slope quickly, the tracks can hit the ground at the front and the wheelchair will stop abruptly.

  • Page 63: Driving On Different Surfaces

    Descend slopes slowly. Particular care is required when driving down slopes as the wheelchair may pick up speed. When Scewo BRO detects that you are travelling on a slope, the tracks are automatically raised completely. The following maneuvers may cause the wheelchair to overturn or cause injury to the user if the instructions are not followed: •...

  • Page 64: Unexpected Movements Of The Wheelchair

    Scewo AG Scewo BRO V1.1 5.5.10. UNEXPECTED MOVEMENTS OF THE WHEELCHAIR If the wheelchair moves in an unexpected way, immediately release the joystick to stop the wheelchair. In an emergency, use the standby button to stop the wheelchair as quickly as possible.

  • Page 65: Stair Mode

    Scewo BRO V1.1 Scewo AG 5.6. STAIR MODE The stair mode is used to overcome stairs and other obstacles such as curbs. In stair mode stairs are always ascended backwards and descended forwards. When the stair mode is active, the LED ring on the control panel lights up in purple.
  • Page 66 Scewo AG Scewo BRO V1.1 Descend stairs in stair mode only Stair mode must always be activated when climbing stairs. The wheelchair does not automatically switch to stair mode before climbing stairs. Approaching the stairs in any other mode than stair mode may be fatal.
  • Page 67 Do not make turns on stairs – tracks may fall out of guidance Scewo BRO is designed to be used on straight stairs. Don't try to make sharp turns. The lateral forces on the tracks could cause them to fall out of their guidance.

  • Page 68: Selecting Stair Mode

    Scewo AG Scewo BRO V1.1 Avoid climbing stairs when the battery is low If the battery level is low (battery indicator flashes in red), you should no longer attempt to climb stairs in order to avoid getting stuck unintentionally. Stair mode is always available, therefore you can climb stairs until the battery is fully depleted.
  • Page 69 Scewo BRO V1.1 Scewo AG (a) On level ground (b) On stairs Figure 49. Stair mode display on control panel TRIGGER END OF STAIRS MANUALLY You need to continuously monitor if the sensors have correctly detected the end of the stairs. If...

  • Page 70: Climbing Up Stairs

    Scewo AG Scewo BRO V1.1 5.6.2. CLIMBING UP STAIRS The user should always monitor the end of the stairs The sensors that detect the end of the stairs do not work reliably under all circum- stances. They were designed to be an auxiliary system. Even if the sensors have detected the end of the stairs, it may be that the system triggers the transition too late and you topple backwards.

  • Page 71: Maneuvering Mode

    Scewo BRO V1.1 Scewo AG 8. If the next set of stairs follows immediately (e.g. at an intermediate landing), it is best to cover the short distance on level ground directly in stair mode on the tracks. 9. Reverse at least 50 cm before switching back to drive mode.

  • Page 72: Climbing Down Stairs

    Scewo AG Scewo BRO V1.1 Maneuvering mode is automatically activated in stair mode when you are on level ground (not on the stairs). It enables you to turn on narrow landings (e.g. when the stairs continue in a different direction after a landing at a 90° angle) or to adjust your orientation in front of stairs: Make sure you are in stair mode and on level ground.

  • Page 73: Suitable Stairs

    Scewo BRO V1.1 Scewo AG Check that the edge of the top step has been detected correctly The tracks should lift up once the first step has been detected, and converge to the incline of the stairs. In rare cases, the beginning of the stairs may be detected too early.
  • Page 74 Scewo BRO V1.1 Scewo BRO is suitable for most straight and dry stairs. If you are unsure whether a flight of stairs is suitable, always try to climb them from the bottom first, never from the top! Once the wheelchair has completely climbed the first two steps (tracks no longer touch the lowest level), shake the wheelchair strongly to test its stability and traction.

  • Page 75: Unsuitable Stairs

    5.6.6. UNSUITABLE STAIRS Scewo BRO is not suitable for the following types of stairs. Refrain from climbing stairs such as: Spiral stairs Moving stairs Damp or wet metal stairs 4.
  • Page 76 Scewo AG Scewo BRO V1.1 (a) Spiral stairs (b) U-shaped stairs (c) Escalators (d) Stairs with an incline exceeding 36° (e) Stairs that do not have a horizontal land- Figure 55. Prohibited stairs...
  • Page 77 Scewo BRO V1.1 Scewo AG Do not climb stairs if the tracks or surfaces of the stairs are slippery Never climb stairs if you are unsure if the traction of the tracks is sufficient to ascent or descend them safely. You could slide down the stairs at high speed and injure yourself or others.

  • Page 78: End-Of-Stair Sensors

    Scewo AG Scewo BRO V1.1 (a) Danger of toppling backwards and eject- (b) Danger of toppling forward when de- ing the ATS when ascending scending Figure 57. Do not use stairs with varying step heights Be careful when descending stairs that have a low bottom step Some stairs have a low bottom step (e.g.

  • Page 79: Premature Detection Of The End Of Stairs

    This can be helpful if they are malfunctioning and you still need to ascend a flight of stairs. However, take extra care that the transition to the upper level is triggered on time. Scewo recommends to never disable the sensors. See also Premature Detection of the End of Stairs [79] on how to proceed if the end of the stair is detected prematurely.
  • Page 80 Scewo AG Scewo BRO V1.1 Figure 61. Premature detection of the end of stairs in the middle of the stairs It is possible that the sensors detect the end of the stairs prematurely causing the support system to extend while you are still on the stairs.(Fig.

  • Page 81: Special Stair Climbing Situations

    Scewo BRO V1.1 Scewo AG Override sensors carefully If you pull the joystick to the back after stopping briefly, the previously detected end of stairs will be deleted. This situation is particularly dangerous if the transition was detected correctly but you wanted to descend the stairs for a short distance and then climb back up again.
  • Page 82 Scewo AG Scewo BRO V1.1 In drive mode, drive up to the step, keeping a distance of 50 centimeters Switch to stair mode. If stair mode is active, you can move the joystick forward so that the wheelchair goes all the way to the landing.

  • Page 83: Anti-Tip-System (Ats)

    In certain circumstances, the ATS could be damaged by the excessive forces or repeated triggering. If the retraction takes an unexpected amount of force or if there are strange noises, go to your Scewo reseller immediately and have the system checked.
  • Page 84 Scewo AG Scewo BRO V1.1 (b) 2 - Release locking bolt (a) 1 - Starting situation (c) 3 - Push back the supports by hand (d) 4 - Anti-Tip-System is operational again Figure 64. Retracting the Anti-Tip-System...

  • Page 85: Track Mode

    Never approach a stair or step from above in track mode Never approach the top edge of a stair or a step from above in track mode. Scewo BRO may not reliably detect the beginning of the stairs, and you could fall down the stairs.

  • Page 86: Driving On Ramps In Track Mode

    Scewo AG Scewo BRO V1.1 Switch to stair mode. Open the menu again. Select the track mode option. 4. The wheelchair will now start the transition. You have to move the joystick forwards or back- wards so that the servo motors/actuators? cover a greater distance (see also...

  • Page 87: Situations That Are Not Suited For Track Mode

    Scewo BRO V1.1 Scewo AG • Always ascend ramps in reverse and descend them facing forward. • Make sure that there is enough traction on the ramp, especially if it is wet or covered with ice and snow. • The wheelchair automatically switches to stair mode if the slope of the ramp exceeds a certain level.

  • Page 88: Car Passenger Mode

    Scewo AG Scewo BRO V1.1 5.9. CAR PASSENGER MODE New from BRO software version 22.5.9. This function is available only from BRO software version 22.5.9. This mode is not available on BROs with earlier software versions. Please perform an update.
  • Page 89 The following images show how the restraint belts are correctly attached to the wheelchair. For the rear securement Scewo recommends four belts (in addition to the two in the front), which comply with ISO 10542-1 and were tested with at least 160 kg each:...
  • Page 90 Scewo AG Scewo BRO V1.1 General safety instructions for transporting the wheelchair as a passenger seat in a car • When used as a passenger seat in a motor vehicle, the wheelchair may be trans- ported facing forwards only. • The vehicle must be appropriately designed, insured and equipped to transport a wheelchair user.
  • Page 91 Use restraint belts that are strong enough and have been tested! Scewo recommends using a total of six restraints, each with a test load of at least 160 kg (in accordance with ISO 10542-1). Two of these restraints should be attached to the wheelchair's rear securements points on each side before being secured to the vehicle.
  • Page 92 Secure loose objects, remove smartphone from its holder before driving Remove your smartphone from the Scewo holder before setting off. In the event of an accident, it could become a projectile and injure other occupants. Remove all other loose accessories or those that are not firmly and safely attached to the...

  • Page 93: Car Passenger Positions

    Scewo BRO V1.1 Scewo AG 5.9.1. CAR PASSENGER POSITIONS The recommended car passenger position (green, see (b) Car passenger position – recommended position [93] [93]) should be used in the vehicle if possible. If your current seat position does not...

  • Page 94: Vehicles With A Tailgate

    In particular, remove your smartphone from the Scewo holder and stow it in a safe place. When you arrive at your destination and wish to exit the vehicle, follow the same steps as for boarding but in reverse.
  • Page 95 In particular, remove your smartphone from the Scewo holder and stow it in a safe place. When you have arrived at your destination and wish to exit the vehicle, proceed as follows: Remove the restraints at the back.

  • Page 96: Transporting The Wheelchair

    Scewo AG Scewo BRO V1.1 5.10. TRANSPORTING THE WHEELCHAIR 5.10.1. TRANSPORTING THE WHEELCHAIR IN THE CAR Approved vehicles The wheelchair may only be transported in vehicles that are approved and suited for this purpose. CAR PASSENGER MODE: TRANSPORT IN A VEHICLE AS A CAR SEAT WITH A PAS-...
  • Page 97 The operating mode has to be changed for this, depending on the car. Seek advice from a reseller or Scewo. 10. If possible, activate the track mode at the end to transport the wheelchair in the car. The highest possible friction between the wheelchair and the floor of the trunk is achieved in track mode (better safety against slipping).

  • Page 98: Usage And Transport Of The Wheelchair On Public Transport

    Scewo AG Scewo BRO V1.1 (a) Securing wheelchair at the front (b) Front details (c) Securing wheelchair at the back (d) Rear details Figure 73. Recommended securement of BRO wheelchair V1.1 5.10.2. USAGE AND TRANSPORT OF THE WHEELCHAIR ON PUBLIC TRANSPORT...

  • Page 99: Transport Of The Wheelchair On An Aircraft

    Scewo BRO can be used on public transport (train, bus, tram) provided the means of transport are barrier-free. Please note the following information: •...
  • Page 100 (Figure 72, “Securing the back support to prevent it from unfolding again” [97]). Scewo recommends securing the wheelchair in the aircraft as shown in Figure 73, “Recommen- ded securement of BRO wheelchair V1.1” [98].

  • Page 101: Charging The Battery

    Never use a different charger Only use original Scewo chargers and do not modify them in any way. The wrong charger could destroy the battery and cause a fire. Do not go down a hill or a flight of stairs immediately after the battery has been fully charged When descending a slope, the motors function as generators (recuperation).
  • Page 102 Scewo BRO V1.1 Do not transport the charger with Scewo BRO The charger is not designed to be transported with Scewo BRO. The charger could be damaged by vibrations and other environmental conditions. The wheelchair charging socket is on the left side. This is how you charge the battery: Turn off the wheelchair and get out of the wheelchair.

  • Page 103: Manual Emergency Operation (Push Mode)

    Scewo BRO V1.1 Scewo AG 5.12. MANUAL EMERGENCY OPERATION (PUSH MODE) If the wheelchair can no longer be moved (using the motors) due to a serious error or a completely discharged battery, the following options for manual pushing operation are available.

  • Page 104: Push Mode On Level Ground

    This backup battery will be exhausted after approx. 20-30 minutes and the brakes will lock automatically. Charge the main battery of the Scewo BRO first, so that the backup battery can recharge as well. During normal operation, the electromechanical brakes are automatically released or applied by the wheelchair’s electronics.

  • Page 105: Push Mode On Stairs

    Scewo BRO V1.1 Scewo AG Caution on thresholds Do not allow yourself to be pulled down over thresholds. The wheelchair could topple over backwards. If going over a threshold cannot be avoided, warn the person assisting you that they may have to support the wheelchair from behind if it tips backwards.

  • Page 106: Connecting The App (Authorizing Wi-Fi Connection)

    When arriving at the top of the stairs, the wheelchair must be tilted backwards over the edge and supported by your assistants. Otherwise the wheelchair could tip over. For this reason, Scewo always recommends that the evacuation is carried out by going down the stairs where possible.

  • Page 107: Additional Safety Information

    6.1. BASIC NOTES AND INSTRUCTIONS • Failure to use the device as specified in these instructions (especially drive and stair mode) may result in potentially hazardous situations. Scewo is not liable for the improper use of the device and any damage resulting therefrom.

  • Page 108: Pelvic Belt

    Scewo AG Scewo BRO V1.1 electromagnetic fields, which can cause interference with other devices. This can, among other things, impact your immediate environment and lead to disruption (e.g. certain alarm systems of companies). • The electromagnetic radiation from portable communication devices (e.g. smartphones) and their antennas can affect how the power wheelchair functions.

  • Page 109: Additional Devices

    Contact the oxygen supplier for information on how to handle oxygen. • Only use parts or accessories approved by Scewo. The use of unauthorized retrofitted acces- sories and components may alter the wheelchair in such a way that it becomes unstable or uncontrollable.

  • Page 110: Transport

    Scewo AG Scewo BRO V1.1 • Avoid taking the wheelchair on slippery surfaces (snow or ice, loose surfaces such as gravel or sand) wherever possible. However, if you have to, reduce your speed and proceed with utmost caution. • Protect the wheelchair from moisture, including rain, snow, mud or splashes of water. Moisture can cause a short circuit and the wheelchair may catch fire, resulting in injury or damage to property.

  • Page 111: Maintenance And Repair

    7. MAINTENANCE AND REPAIR 7.1. MAINTENANCE You must bring your wheelchair to your reseller or Scewo for a general inspection at least once a year. For the rest of the year, you should check your BRO independently according to the mainte- nance schedule in Table 6, “Maintenance schedule”...

  • Page 112: Tyre Pressure

    Scewo BRO V1.1 Tighten wheels to correct torque Always have the wheels replaced by an authorised Scewo reseller. However, should you mount the wheels yourself, you must be sure to tighten the three wheel bolts to the correct torque. The required torque is 25NM and is also indicated on the rim.

  • Page 113: Upholstery

    This usually happens after around 1000 charging cycles. The battery needs to be replaced. To do this, contact an official reseller or Scewo directly. Fire hazard if the battery is not handled correctly Do not remove the main battery (lithium-ion) yourself or modify it! If damaged, the battery can explode and cause serious burns.

  • Page 114: Disposal And Recycling

    Scewo BRO V1.1 7.7. DISPOSAL AND RECYCLING If you no longer need your wheelchair, please contact an official reseller or Scewo directly to discuss recycling options or arrange proper disposal. Many electronic parts and the batteries can be disposed of as electrical waste.

  • Page 115: Software Updates

    Scewo BRO V1.1 Scewo AG 8. SOFTWARE UPDATES Always update BRO to the latest software as quickly as possible Updates may contain safety-related improvements and must therefore be installed as quickly as possible. Check regularly whether the latest software is installed on your BRO and carry out an update if necessary.

  • Page 116: Error Messages And Troubleshooting

    Scewo BRO V1.1 9. ERROR MESSAGES AND TROUBLESHOOTING 9.1. MALFUNCTIONS If the wheelchair malfunctions, check the following points before contacting your reseller or Scewo: • Power the wheelchair off and on again. • Check that the battery is charged enough.

  • Page 117: Insufficient Battery Range

    User behaviour e.g. frequency of starting (acceleration), frequency of driving up slopes, tyre pressure, load capacity A larger battery can optionally be purchased. To do this, contact an official reseller or Scewo directly. 9.2. ERROR MESSAGES There are three types of messages which appear for various reasons and need to be fixed: defect, warning and information.

  • Page 118: Error

    Scewo AG Scewo BRO V1.1 9.2.1. ERROR Symbol or behavior Error Action Unspecified generic error. Try switching to park mode and then continue driving. If that doesn't work, switch the wheelchair off at the main switch at the back, wait at least 30 seconds and then switch BRO on again.
  • Page 119 Scewo BRO V1.1 Scewo AG Symbol or behavior Error Action Possible situations: Battery overcharged: Change the direction of travel and go uphill or Because the wheelchair is not continue driving downhill in track sufficiently charged, it cannot mode. continue driving and therefore Battery too hot: Wait until the bat- switches to park mode.

  • Page 120: Warnings

    Scewo AG Scewo BRO V1.1 Symbol or behavior Error Action The seat lift motor has an error. Contact an official reseller or Sce- The support system motor has an Go to a safe place (e.g. home) error. Press the standby button to ex-...
  • Page 121 Scewo BRO V1.1 Scewo AG Symbol or behavior Error / Explanation Action Possible situations: Charge the wheelchair, before you continue (see Charging the Bat- Because the wheelchair is not tery [101]). sufficiently charged, it cannot continue driving and therefore switches to park mode.
  • Page 122 Scewo AG Scewo BRO V1.1 Symbol or behavior Error / Explanation Action At the transition at the top of the Drive forward again so that the stairs you can't continue going up support system retracts and use a backwards. different path.
  • Page 123 Scewo BRO V1.1 Scewo AG Symbol or behavior Error / Explanation Action On the control panel, the warning Check the electrical connections indicator and error indicator 1 light of the sensors. Switch the sensors up red in stair mode. back on in the app or by restart- ing the wheelchair.
  • Page 124 The electrical connections and reboot warning indicator and error indica- the wheelchair. Contact a Scewo or tor 3 on the control panel light a reseller if the problem persists. up red in stair mode. The wheel-...

  • Page 125: Information

    Scewo BRO V1.1 Scewo AG Symbol or behavior Error / Explanation Action The ground is too steep to switch Move to even ground to start drive to drive mode. mode. 9.2.3. INFORMATION Symbol or behavior Error Action The batteries are almost empty...
  • Page 126 Scewo AG Scewo BRO V1.1 Symbol or behavior Error Action The touchpad has no function. Deactivate/Activate Touch- pad [41] to reactivate it. The touchpad is disabled. The joystick must not be moved Release the joystick until the so that the wheelchair can switch wheelchair has completed the modes.

  • Page 127: Technical Specifications

    Scewo BRO V1.1 Scewo AG 10. TECHNICAL SPECIFICATIONS V1.1 General Basic UDI-DI 7649992967BRWF Wheelchair category in accordance with EN 12184:2014 Weight incl. battery (30Ah battery) 162 kg Total width 688 mm Min. occupant weight 40 kg Max. occupant weight (incl. luggage...
  • Page 128 Height (from seat platform under seat 630 mm cushion) Electric back support adjustment 15° - 56° Back cushion compatibility - Scewo back cushion (screwed into place) - Sunrise Medical Jay Series (quick-release system) Foldable Weight (incl. arm supports) 11kg Head support...
  • Page 129 Scewo BRO V1.1 Scewo AG V1.1 Adjustment options Height and angle Arm supports Length 365 mm Joystick length adjustment from cen- 405 - 505 mm ter of back cushion Height (from seat platform under seat 190 - 310 mm cushion) Distance between arm supports 420 - 500 mm.
  • Page 130 6x with min. 160 kg test load each Belt routing rating (in accordance Good (14/16 points) with ISO 7176-19 - Annex D) Free length required in vehicle 1620 mm The maximum permissible speed is programmed for each country prior to delivery. Table 7. Data sheet Scewo BRO...

  • Page 131: Index

    Scewo BRO V1.1 Scewo AG 11. INDEX White circle, 40 Emergency stop Button, 37, 48 Accessory Back cushion, 28 Ice, 75 Cup holder, 33 Head support, 29 Lateral thigh supports, 31 Lashing points, 18 Magnetic smartphone holder, 32 LED ring...
  • Page 132 Scewo AG Scewo BRO V1.1 Storage, 48 Stair mode, 65 Transport, 48 Selection, 68 Powering on, 47 Stair mode Push operation, 103 Trigger end of stairs, 69 Pushing the wheelchair, 103 Stairs Beginning Detection error, 82 Climb down, 72 Reset, 49...

Table of Contents
