Ink Machines TPS-500 X2 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TPS-500 X2
Manual for
Manufacturer:
InkMachines Sweden AB
Grusåsvägen 8
352 42 VÄXJÖ, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS-500 X2 and is the answer not in the manual?

Questions and answers

Related Manuals for Ink Machines TPS-500 X2

Summary of Contents for Ink Machines TPS-500 X2

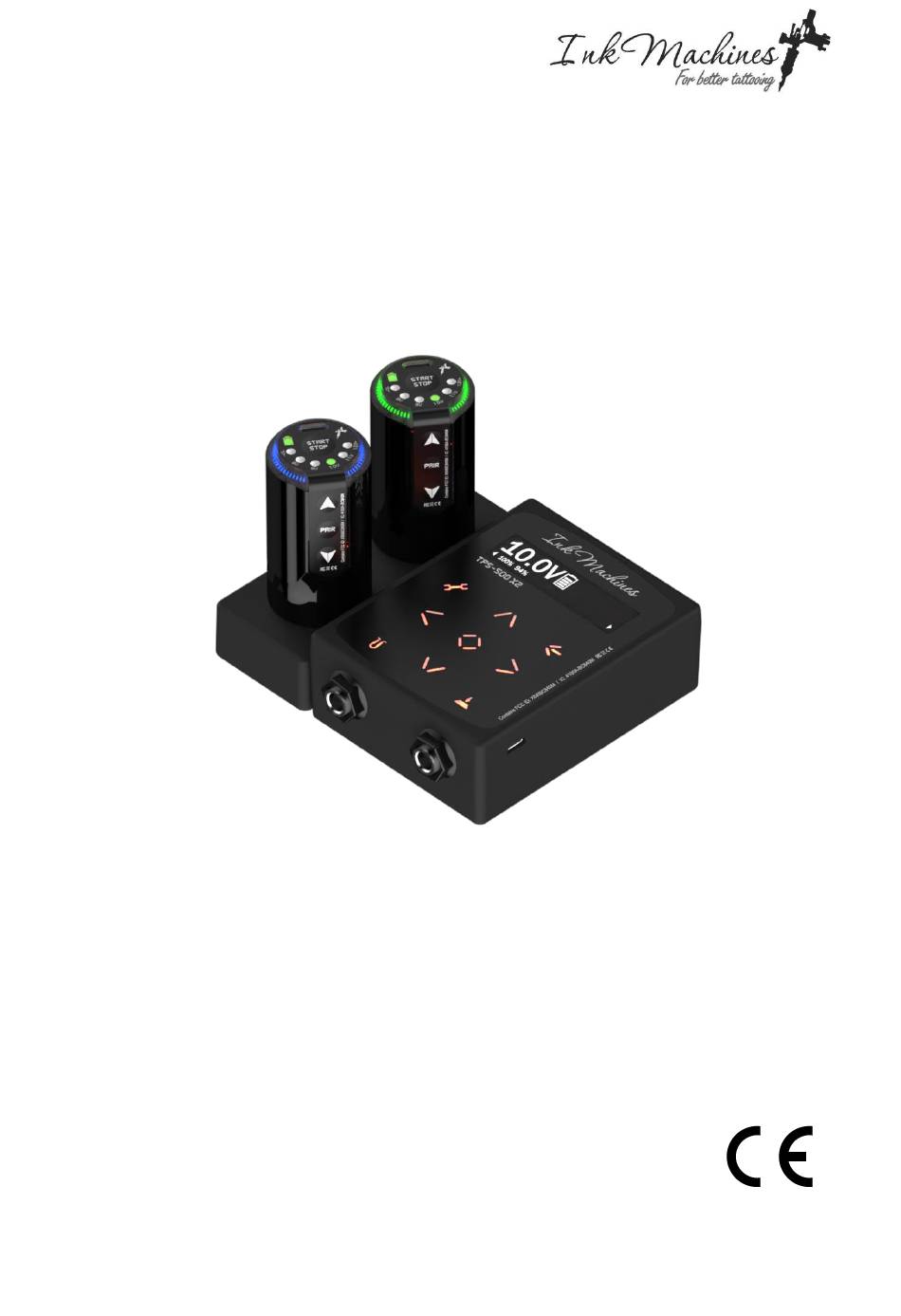

  • Page 1 TPS-500 X2 Manual for Manufacturer: InkMachines Sweden AB Grusåsvägen 8 352 42 VÄXJÖ, Sweden...

  • Page 2: Table Of Contents

    Introduction ......................... 3 Intended use ..........................3 Document information ....................... 3 Stylistic conventions ........................3 Description .......................... 4 TPS-500 X2 Main unit ......................... 5 X2 Powerpacks ........................... 5 X2 Foot switch (WFS) ........................5 X2 Neorail ........................... 5 X2 Charger ..........................5 Safety and responsibility ....................

  • Page 3: Document History

    Document history Date (YY- MM-DD) Changes Revision 2023-02-25 Released InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 2 (34)

  • Page 4: Introduction

    Introduction Introduction We are proud to present the TPS-500 X2 wireless power supply system designed with the tattoo artist in focus and manufactured with the highest quality materials and components available. Working without cords gives the Tattoo artist flexibility and freedom to perform otherwise difficult movements.

  • Page 5: Description

    Description The TPS-500 X2 is a modular system designed to allow the freedom of tattooing without a cord to the tattoo machine or the foot switch. The system can also be used without the main unit and charger bay so that the footswitch acts as a main unit communicating directly to the powerpacks, in this case a smartphone with the InkMachines app can be used to control the settings.

  • Page 6: Tps-500 X2 Main Unit

    The Neorail (i.) should be used together with the supplied stand (j.) and USB-C to USB-C cable (c). The Neorail can only be connected to the USB-C port on the TPS-500 X2 main unit to function. The Neorail is only for use with Neo-Cartridges and can handle up to six Neo-Cartridges. The Neo- Cartridges are held magnetically to the Neorail which makes it both hygienic and easy to work with.

  • Page 7: Safety And Responsibility

    For each client and session always use: sterile grips new sterile needles new rubber gloves new plastic barriers for tattoo equipment; around the machine, powerpacks, TPS main unit and the Neorail. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 6 (34)

  • Page 8: Instruction

    When your package arrives, please check that: there are no transport damages everything is delivered accordingly. Unpacking Standard parts delivered with the TPS-500 X2 main unit: 1x TPS-500 X2 power supply (Main unit) 1 power cord 1 USB-C to USB-C cable...
  • Page 9 Instruction The following devices are optional to the TPS-500 X2 power supply unit and may be included in the delivery. Footswitch Powerpack for Stingray and Dragonfly Charger bay for Scorpion i./j. Neorail with stand (1 piece of USB-C to USB-C cable for...

  • Page 10: Getting Started

    Do NOT use alkaline or acid cleaning agents with strong bases (high or low pH). Only use pH neutral cleaning agents and 70% alcohol disinfectants on InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 9 (34)
  • Page 11 Always bag or wrap all devices with plastic film before starting your session. When using Neorail start with attaching the Neorail on the table with tape. After that, wrap the Neorail with plastic film. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 10 (34)
  • Page 12 Note! UNIT UPDATE might be displayed in the lower part of the display at start up. If powerpacks are to be used: 5. Place the Powerpacks on to the charger for automatic pairing and to begin the charging. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 11 (34)
  • Page 13 Note! Clean the Tattoo machine(s) before attaching the Powerpacks. 9. Make sure the motor cable is in the right position or it can interfere with the Powerpack. Motor cable position for Scorpion InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 12 (34)
  • Page 14 12. Charging status for the active Powerpack 9.1V is highlighted on the display. The active work page will be displayed in the app if used. The image shows the display’s appearance when Powerpack is used InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 13 (34)
  • Page 15 Instruction If RCA cable or clip cord are to be used: 13. The tattoo machine is connected as shown in the picture TPS-500 X2 Connection of Scorpion to TPS-500 X2 Connection of Stingray or Dragonfly to 14. Start the machine with the foot switch...
  • Page 16 17. Repeat the steps 8-14 if you have more machines. 18. While working it is possible to charge two 1Ø.1 Powerpacks on the charger bay that are not in use and additional devices can be charged by USB. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 15 (34)
  • Page 17 10.0 10.0 10.1 10.0 10.6 Just pick one Neo-Cartridge at a time from the Neorail. To avoid cross-contamination never touch the part of the Neo-Cartridge which should be inserted into the tattoo machine. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 16 (34)
  • Page 18 5mm below the grip seal to fix and seal the plastic bag to the sterile grip. Always bag or wrap all devices with plastic film before starting your session. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 17 (34)
  • Page 19 After that, wrap the Neorail with plastic film. Put the Neo-Cartridges on the Neorail. Always clean the foot switch between sessions. It is recommended that the whole foot switch is put inside a plastic bag. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 18 (34)

  • Page 20: Connections

    (C7, 100 - 240V) (1/4” Phono Plug) wired foot switch (1/4” Phono Plug) Neorail or charging. USB-C to USB-C cable Can also be used for software updates. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 19 (34)

  • Page 21: User Interface

    Settings menu, see below e./f. Increase (e) and decrease (f) voltage to active unit Return to main menu g./h. Navigate left (g) and right (h) between Timer options and active Powerpacks InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 20 (34)

  • Page 22: Display

    – no Powerpack charging Symbol shown when the machine is running d – Powerpack charging Current power consumption, can be set to Hz or Watts display aswell in the tools menu. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 21 (34)
  • Page 23 Switches between showing voltage setting for time and runs until sleep mode active Neo-Cartridge and charging for active activates or manual stop / reset is Powerpack. selected InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 22 (34)

  • Page 24: Settings

    Choose units to display under the Voltage : UNITS reading. Watts, Milliamps, HZ. Hz only works when using a Powerpack and not with cable. Keypad color. KEYPAD SETUP: LED COLOR : LED BRIGHTNESS Keypad brightness. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 23 (34)

  • Page 25: Pairing X2 Devices

    Repeat the process if you have more powerpacks to form a system with one foot switch and several powerpacks. On the TPS-500 X2 unit the OK button is used as pair button. To...

  • Page 26: Active Powerpack

    LOW, two times for MED and three for HIGH and no light for OFF. It can also be activated in the TPS menu or with the app. When using Neo-Cartridges there is no need to use Kick start. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 25 (34)

  • Page 27: Run Mode Display Window For Coil Machines

    The speed of the machine is displayed as CPS, the cycles per second in Hz. Duty cycle (DUTY) The duty cycle is displayed as DUTY in %, it is calculated as the contact time. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 26 (34)

  • Page 28: Service And Maintenance

    Service and maintenance Service and maintenance Self-service and repairing of the TPS-500 X2 devices are prohibited and the warranty will be void if any unit has been opened or manipulated. For service and repair visit www.inkmachines.com. Caution! Changes or modifications not approved by the manufacturer could void the user’s authority to operate the product.

  • Page 29: Trouble Shooting

    And the screw with a powerpack. Contact should hold the end of the InkMachines for service. cable. Align and tighten. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 28 (34)
  • Page 30 Contact InkMachines for further 3. Reset the powerpack by holding the pair button for about 12 instructions, see sec until the onboard lights flashes repeatedly and then retry. www.inkmachines.com InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 29 (34)
  • Page 31 5. Remove the two screws on the back and clean the inside Contact InkMachines for further from any dirt and check that the magnet is present in the top instructions, see of the inside the footswitch button. www.inkmachines.com InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 30 (34)

  • Page 32: Technical Specifications

    Technical specifications Technical specifications Main unit, TPS-500 X2 Volt output 5 - 13 Volt DC Power input 100 – 240 V AC Frequency 2.4 GHz BLE Cobra, Scorpion, Stingray and Dragonfly wireless and other Machine compatibility machines by cable Display...

  • Page 33: X2 Powerpack For Stingray And Dragonfly

    Status led, Sound, Button Charging USB-C Modes Hold or Toggle Switch type Magnetic Operating temperature 10 – 35 ̊ C Indoor use only. Weight 160 grams Dimensions L x W x H Ø98x25mm InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 32 (34)

  • Page 34: Warranty

    The warranty is void if: 1. The TPS-500 X2 user interface, main unit or Powepacks has been opened. 2. The TPS-500 X2 or any of its units or components have been autoclaved or cleaned in an ultrasonic cleaner. 3. Powerpacks have been used on any other machine brand than InkMachines.
  • Page 35 352 45 VÄXJÖ, Sweden declare under our sole responsibility that the product; Product name /model: TPS-500 X2 Type: Wireless power supply device for Tattoo Machines to which this declaration relates is in conformity with the essential requirements and other relevant requirements with the relevant EU legislation.

  • Page 36: Fcc

    Wireless power supply device for Tattoo Machines Model / Name: TPS-500 X2 Was tested to confirm to the app. FCC rules and regulations. Testing was carried out by a listed facility of the FCC in accordance with the facility’s registration.

  • Page 37: Emc

    L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. InkMachines TPS-500 X2 Rev 1.0 / 2023-02-25 36 (34)
