EXPERT TOUCH 5

EXPERT TOUCH 5 INSTALLATION

The Expert Touch 5 has been qualified to operate in a dry environment within a temperature range of
0°C to 50°C and humidity 10-95% non-condensing.
The unit is an ancillary device that provides a user interface to an Expert system. As such, it can not be
used on its own but must have an Expert Control present on an Ethernet network to function.
The unit is designed to be permanently installed for convenient access. The Universal Mounting Plate
(UMP, supplied) can be surface mounted directly to a wall with at least a 49mm hole for turret and
Ethernet cable, or into UK, EU & US 1-Gang and UK 2-Gang third party backboxes commonly available
on the market. The unit is securely fastened to the UMP with a tool-free bayonet-twist.

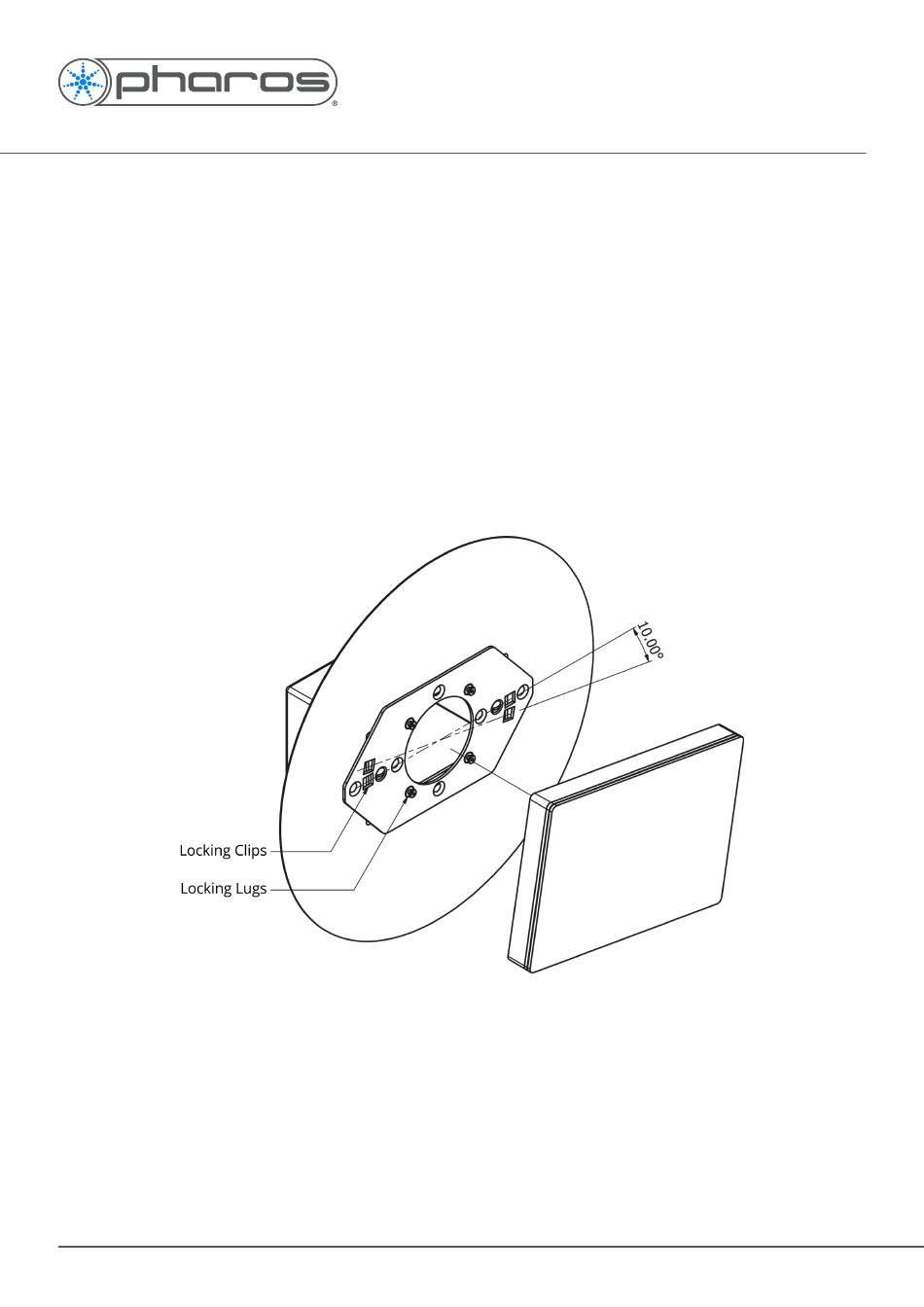

The following diagram illustrates a typical installation:

EXPERT TOUCH 5 MOUNTING

To mount:

Fit mounting plate to surface (back box optional, 49mm hole mandatory)
l

Fit mounting plate in desired orientation (back box allowing)
l

Plug in Ethernet cable into the RJ45 port
l

Fit touch panel at 10 degrees clockwise angle onto locating lugs
l

Rotate panel 10 degrees counter-clockwise to lock
l

Locked position allows for +/- 1 degree adjustment
l
© 2004-2023 Pharos Architectural Controls Limited.
All rights reserved. Subject to change without notice.
INSTALLATION INSTRUCTIONS
EXPERT TOUCH 5
1
