Unfolding Handles; Folding Handles - Simplicity 679 Owner's Manual

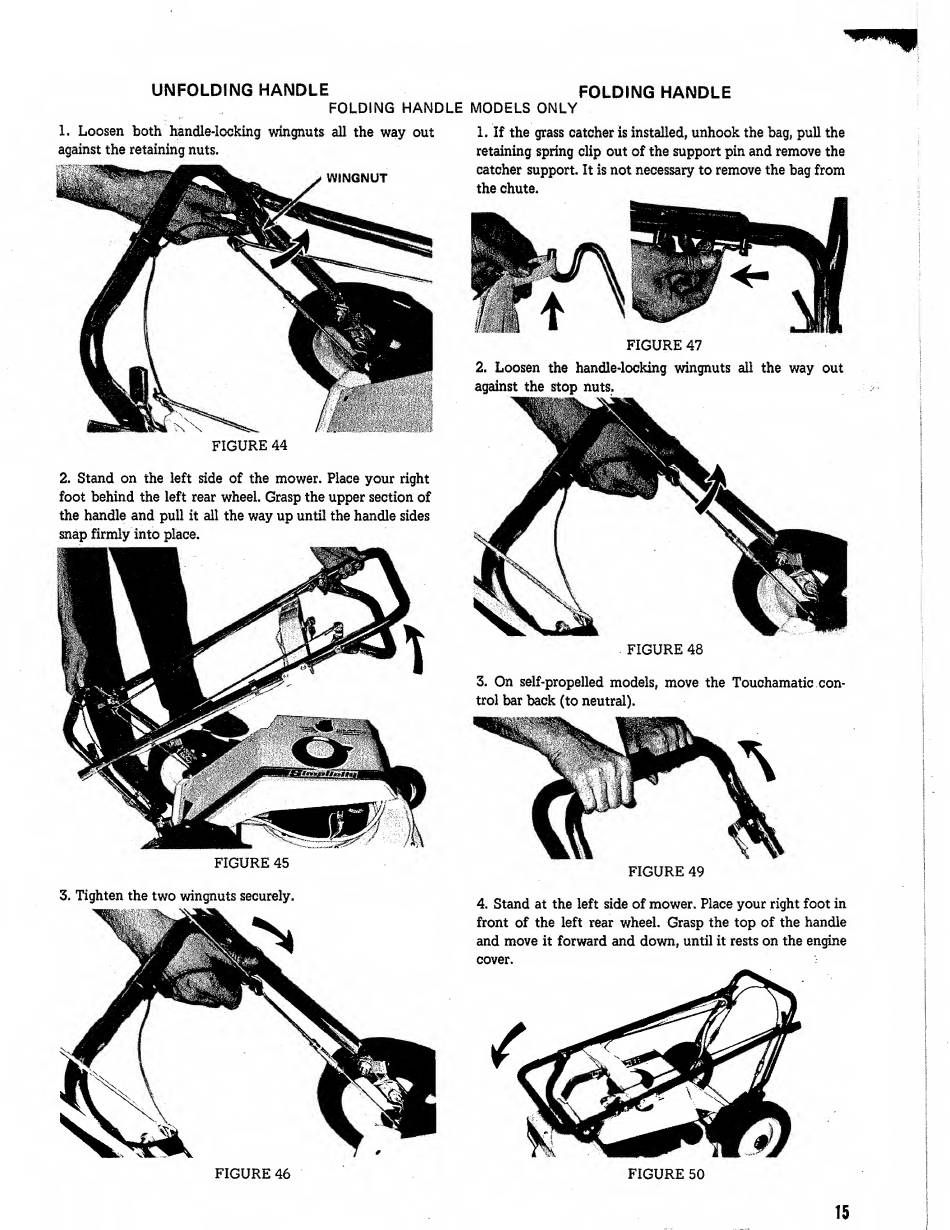

UNFOLDING HANDLE
FOLDING HANDLE
FOLDING HANDLE MODELS ONLY
1. Loosen both handle-locking wingnuts all the way out
against the retaining nuts.
WINGNUT
1. If the grass catcher is installed, unhook the bag, pull the
retaining spring clip out of the support pin and remove the
catcher support. It is not necessary to remove the bag from
the chute.
FIGURE 44
2. Stand on the left side of the mower. Place your right
foot behind the left rear wheel. Grasp the upper section of
the handle and pull it ail the way up until the handle sides
snap firmly into place.
V
FIGURE 47
2. Loosen the handle-locking wingnuts ail the way out
against the stop nuts.
FIGURE 48
3. On self-propelled models, move the Touchamatic con
trol bar back (to neutral).
FIGURE 45
3. Tighten the two wingnuts securely.
►/
FIGURE 49
4. Stand at the left side of mower. Place your right foot in
front of the left rear wheel. Grasp the top of the handle
and move it forward and down, until it rests on the engine
FIGURE 46
.V
FIGURE 50
