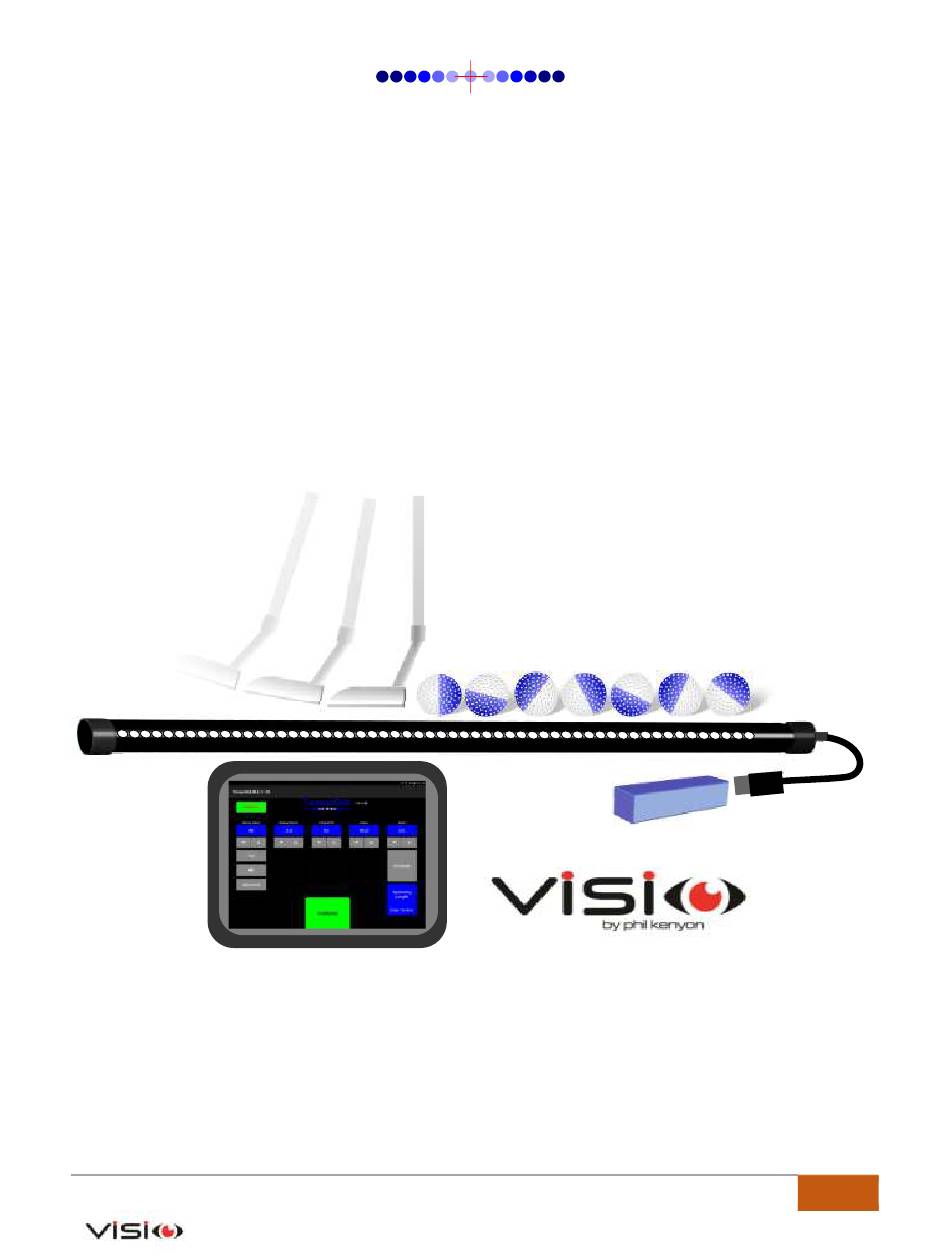

- Page 1 Temp oStik+ Putting Tempo Trainer Users Manual 2023 TempoStik+ Users Manual...
- Page 2 Temp oStik+ Introduction The TempoStik+ is an advanced Golf Training device that teaches putting rhythm, tempo and speed control While Metronomes provide timing cues for the takeaway and end of stroke positions, the TempoStik+ provides continuous detailed time-position cues throughout the putting stroke, using an ideal acceleration model. TempoStik+ allows a golfer to select a desired roll distance and the TempoStik+ computes a detailed backswing and downswing sequence for that distance.
- Page 3 Temp oStik+ The TempoStik+: • Depicts the dynamics of a putting stroke through a moving LED • Helps you train timing and rhythm • Teaches how to execute an “ideal model acceleration” profile for the putting stroke The Theory and Research behind the TempoStik+ The concepts that drive the TempoStik+ have emerged from over 20 years of research and collaboration between World Renowned Putting Coach Phil Kenyon and Golf Development Engineer Dean McConnell.
- Page 4 Temp oStik+ What is Tempo and Rhythm ? Many golf experts have differing definitions of tempo, rhythm and timing. Many say that tempo is the time from the start of the backswing to impact in seconds. Using this definition of tempo, two golfers with identical “tempos” of 1.2 seconds could have very different backswing and downswing to impact times.
- Page 5 Temp oStik+ Definition: Rhythm The relationship in time of one or more of the component parts. eg. Tempo of Backswing 800ms, tempo of downswing 400ms. Stroke Rhythm 2.0 This definition was also used by Science and Motion (SAM) who devised a system to measure and analyze putting dynamics called SAM Puttlab.
- Page 6 Temp oStik+ a short putt to a long putt. What happens is that the golfer swings longer or shorter in that time frame which, as a consequence, produces more club head speed. The phenomena can be appreciated through the Gravitational law of isochrony. This law states that pendulum swings of different lengths will always take the same time.
- Page 7 Temp oStik+ CoreTempo Relates to the time of the downswing to impact segment of the putting stroke Rhythm: Relates to the relationship between different segments of the putting. IE the relationship between the backswing and the downswing Swing Length: The length the club travels in the backswing Law of Isochrony: All strokes of different lengths take the same time Working with the TempoStik+...
- Page 8 Temp oStik+ However, in TempoStik+ Instead of expressing putting tempo as a backswing time in milliseconds and a downswing to impact time in milliseconds, TempoStik+ has developed a simpler definition. There are two key numbers we need to understand to use the TempoStik+ effectively: 1.
- Page 9 Temp oStik+ Power Up: Power up the TempoStik+ by plugging the micro USB plug into the TempoStik+ and the USB type-A connector into the USB power bank battery. (note: do not plug the cable into a USB receptacle of a PC or a wall powered USB jack.
- Page 10 Temp oStik+ Figure 1 Initial TempoStik+ App screen (before and after BLE connection established) Setting Parameters Figure 2 TempoStik+ App Screen TempoStik+ Users Manual...
- Page 11 Temp oStik+ Looking at Figure 2, we see the TempoStik+ App functions: 1. Connect App to TempoStik+ BLE connection button/indicator 2. Tempo setting buttons 3. Backswing Rhythm setting buttons 4. Distance setting buttons 5. Green Speed setting (Stimp) buttons 6. Green Slope setting (% grade) buttons 7.
- Page 12 Temp oStik+ desired distance is reached. Distance has a range of 1 to 60 feet in 1 ft increments. Stimp (5): To enter Stimp in feet, press the Stimp up/down buttons until the desired speed is reached. Stimp has a range of 5.0 to 16.0 in 1/2 ft increments. Slope Percentage (6): To enter slope, press the Slope up/down pushbutton until the desired slope is reached.
- Page 13 Temp oStik+ Note: changing Putt/Rhythm mode can only be accomplished while the TempoStik+ has been stopped (RUNNING/STOPPED button showing “STOPPED”). Upon changing Putt/Rhythm mode, the Compute Backswing button (showing red) must be pressed to update parameters and compute the backswing length. Sound On/Off (8) Sound toggles between Sound OFF and Sound ON.
- Page 14 Temp oStik+ Run/Stop (12) After the backswing length has been computed and the Compute button is blue and not red, press the Run/Stop button to start the TempoStik+ sequence whether in Putt or in Rhythm mode. When the TempoStik+ is running, the Run/Stop button will be green and the label of the button will show “RUNNING”.
- Page 15 Temp oStik+ Normal Putting Stroke Mode: Impact LED in middle of TempoStik Max downswing for central impact Max backswing for central impact Normal Putting Stroke Mode starts at the center and shows the backswing, downswing, and followthrough. For putting strokes that require longer backswings (for longer distance putts), The TempoStik+ has an additional mode called the Extended Putting Stroke Mode.
- Page 16 Temp oStik+ Putting Drills with the TempoStik+ Select Your CoreTempo and Swing Ratio Prior to drills Rhythm Mode: • press the Putt/Rhythm mode button to select Rhythm Mode • start out with a 5 foot putt swing by selecting the Distance button •...
- Page 17 Temp oStik+ Putt Mode: • press the pushbutton to select Putt Mode while the TempoStik+ is STOPPED • Select the Rhythm to match the backswing tempo to the core tempo • start out with a 5 putt and then increase by 5 ft increments •...
- Page 18 Temp oStik+ © 2023 Visio Putting by Phil Kenyon Bluetooth Module Certification Contains Processor with Bluetooth Module FCC ID: Z4T-XIAOESP32C3. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, TempoStik+ FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 19 Temp oStik+ TempoStik+ Users Manual...
