Satcom RE-BRO AFRACAL 2 Quick Reference Manual

HIGH POWER RE-BRO DEPLOYMENT

125W HF 100W VHF

CABLE INDEX

Cable RF BNC Link
A
Radio - Afracal2
Re-Bro - HARNESS 2
B
Radios + Dual PA

CONFIGURATION

Configure both Radios for Re-Bro / Cross-Connect.
Navigate to the "AUDIO" menu: [MENU]x2 → [SETT] → [NEXT]→[AUDIO].
1.
2. Select "AUDIO SRCE" then select "REPEATER MODE".
3.
From the list, select the "COSS PATCH" mode.
4, [ESC] to the home screen.
Navigate to the "MISC" menu: [MENU]x2 → [SETT] → [NEXT]x2→ [MISC].
5.
CONNECTIONS
FRONT

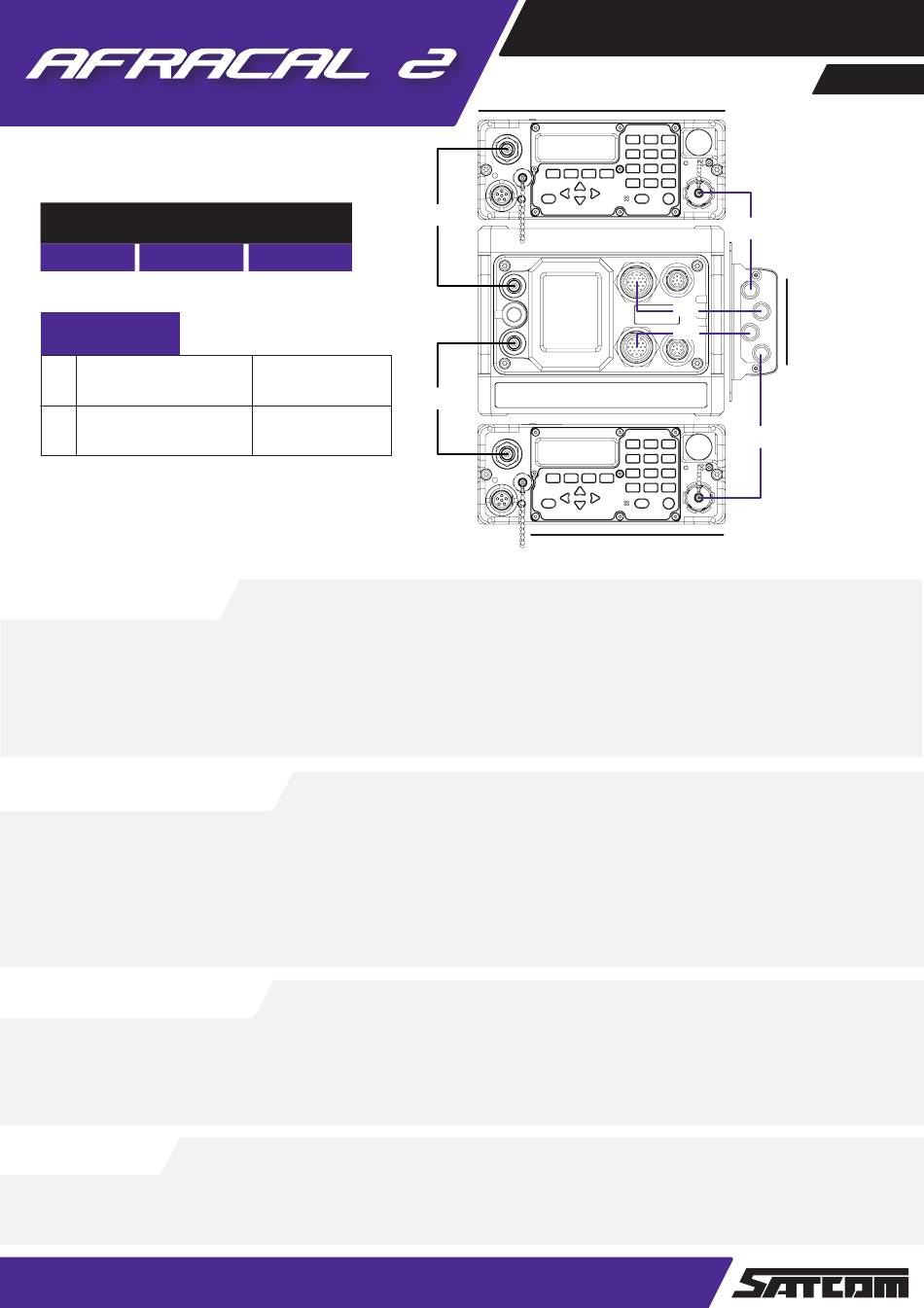

Connect equipment as per drawing above.
A1 Radio1 RF to Afracal Amplifier RF1
A2 Radio2 RF to Afracal Amplifier RF2
B1
REBRO to Radio 1 AUX
B2 REBRO to Afracal Amplifier Radio1
B3
REBRO to Afracal Amplifier Radio2
B4 REBRO to Radio 2 AUX
CONNECTIONS
REAR
Connect equipment as per Figure 2.
C DC power cable to Afracal Amplifier DC Input
D
External tuner to ATU1 Socket (If Required)
E Speaker to Afracal Amplifier Speaker/AUX (If Required)

ANTENNAS

F1
HF Antenna cable to Afracal Amplifier HF ANT (1.6-30Mhz)
F2 VHF Antenna cable to Afracal Amplifier VHF Antenna (30.001-88Mhz)
F3
F3 - UHF Antenna cable to Afracal Amplifier UHF Antenna (88.001-512MHz)
A1
75W UHF
CBL-RAD-RFPA
PB0147
A2
CBL-REBRO-HAR
SCO112
RE-BRO QUICK REFERENCE GUIDE
HF Radio
B2
B3
VHF / UHF Radio
6.
Select "EXT EQUIP" and set the "DETECTION" to "AUTO"
by pressing [ENTER].
7.
Repeat steps 1 to 6 for the 2nd Radio.
8. Power Off both Radios.
PAGE 1
RADIO 1
B1
Re-Bro
Cross-Connect
CBL-REBRO-HAR
SCO112
B4
RADIO2
