Yamaha CinemaStation NX-P150 Owner's Manual

Satellite speakers/ center speaker/ subwoofer
Hide thumbs

Advertisement

UB
SATELLITE SPEAKERS / CENTER SPEAKER / SUBWOOFER
NX-P150
(NX-S150 + NX-C150 + NX-SW150)
OWNER'S MANUAL

Advertisement

loading

  Also See for Yamaha CinemaStation NX-P150

  Related Manuals for Yamaha CinemaStation NX-P150

  Summary of Contents for Yamaha CinemaStation NX-P150

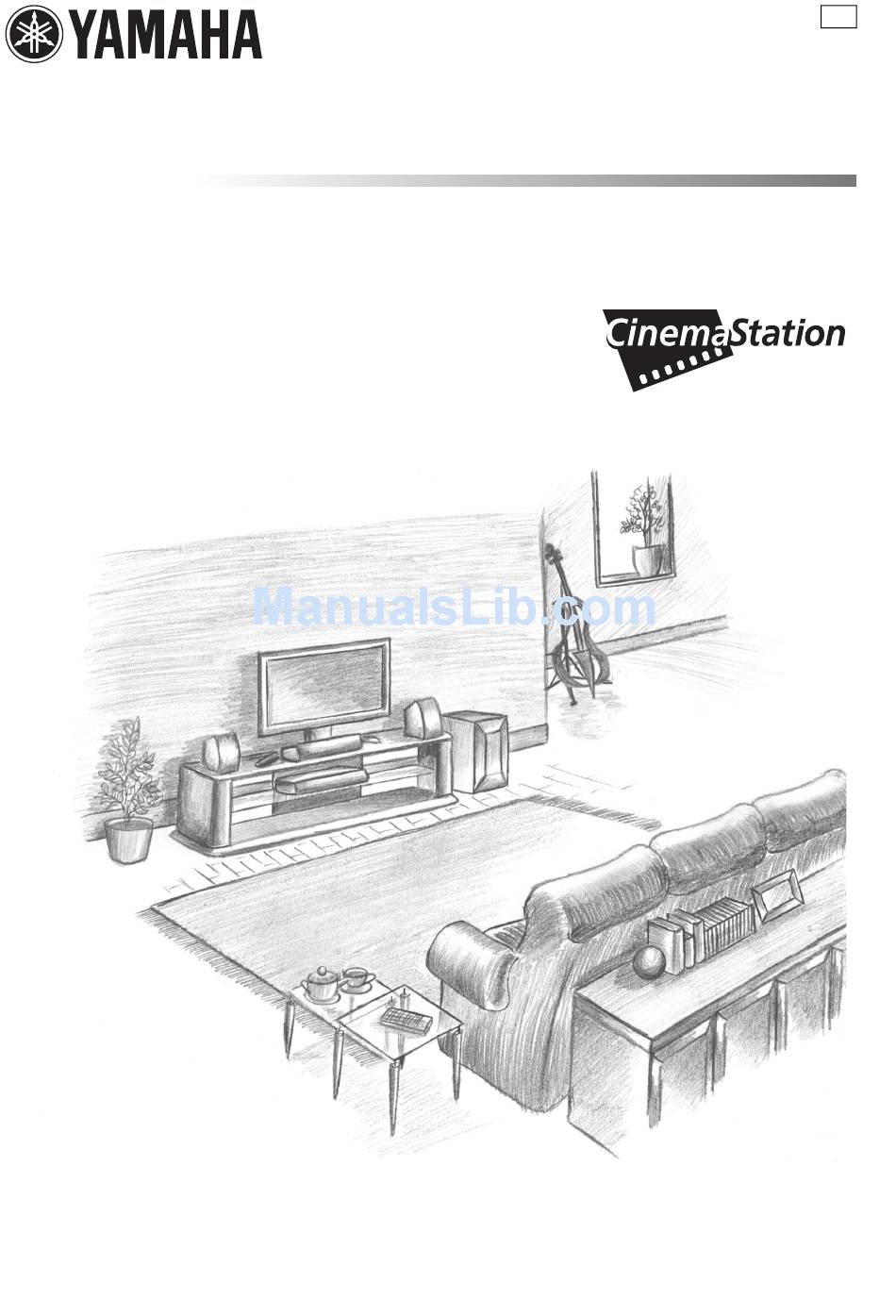

  • Page 1 SATELLITE SPEAKERS / CENTER SPEAKER / SUBWOOFER NX-P150 (NX-S150 + NX-C150 + NX-SW150) OWNER’S MANUAL...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. * Explaination of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence...
  • Page 3 Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620. The above statements apply ONLY to those products distributed by YAMAHA Corporation of America or its subsidiaries. Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s...
  • Page 4 Placing the speakers on the same shelf or rack as the turntable can result in feedback. Secure placement or installation is the owner’s responsibility. YAMAHA is not liable for accidents caused by improper placement or installation of speakers. If you note distortion, reduce the volume control on your amplifier.
  • Page 5: Table Of Contents

    Active Servo Processing Subwoofer System with built-in power amplifier. This subwoofer system (NX-SW150) employes Advanced YAMAHA Active Servo Technology which YAMAHA has developed for reproducing higher quality super-bass sound. This super-bass sound adds a more realistic, theater-in-the- home effect to your stereo syetem.
  • Page 6: Introduction

    INTRODUCTION “NX-P150” consists of four satellite speakers (front/surround), a center speaker, and a subwoofer. Please take great pleasure in real sounds with the YAMAHA 5.1ch speaker system “NX-P150”. Satellite speakers (front/surround) NX-S150 (4 units) About this manual • This manual provides only information on installation methods or specifications for the speakers. For information about how to connect the speakers to your YAMAHA CinemaStation, refer to the manual for CinemaStation.
  • Page 7: Roles And Layout Of Speakers

    Roles and Layout of Speakers Each speaker has different roles based on the types of sound each produces. This section explains the main role/s of each speaker and the recommended speaker layout. Center speaker Front Speaker (R) Front speaker (L) Subwoofer Notes •...
  • Page 8: Placing The Subwoofer

    Placing the Front and Surround Speakers You can place the front and surround speakers on the floor or a rack, or attach them to a wall. Also, you can mount them on YAMAHA speaker stands “SPS-80” or commercially available speaker stands. Please select an installation method that suits your room layout.
  • Page 9 • When connecting the speakers, fix the speaker cables in place so that cables do not loosen. If your foot or hand accidentally gets caught on a loose speaker cable, the speaker may fall. • After attaching each speaker, check that the speaker is fixed securely. YAMAHA will bear no responsibility for any accidents caused by improper installations.
  • Page 10: Connecting The Speakers

    Placing the Speakers Connecting the Speakers Notes • Do not connect the power cord of the subwoofer and other audio/video components into an AC outlet until all cable connections are completed. • For details on how to connect to the CinemaStation, refer to the owner’s manual of CinemaStation. Front speaker Right SPEAKER IMPEDANCE: 6 MIN.
  • Page 11: Troubleshooting

    If there is any problem with your speakers, check the following items. If you cannot solve your problem with the following remedies or if your problem is not listed below, contact the store where you purchased the product or your nearest YAMAHA dealer and ask for assistance. Problem...
  • Page 12: Specifications
