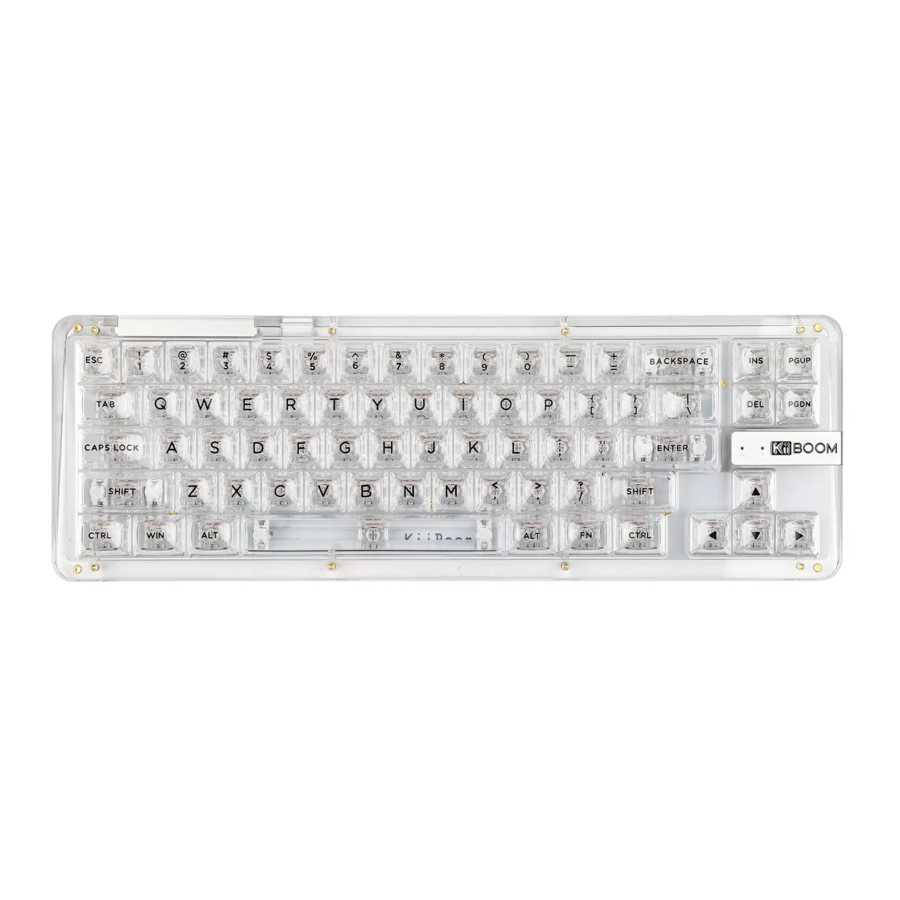

KiiBOOM Phantom 68 - 68 Keys Hot Swappable Mechanical Keyboard Manual

SPECIFICATIONS

Windows SHORTCUTS

Toggle the Switch on the back to Windows mode

macOS SHORTCUTS

Toggle the Switch on the back to macOS mode

GENERAL FUNCTION SHORTCUTS

FN + Q	Bluetooth Device 1	FN + Z	Bottom light Brightness -
FN + W	Bluetooth Device 2	FN + X	Bottom light Brightness +
FN + E	Bluetooth Device 3	FN + C	Bottom light Speed -
FN + R	2.4G	FN + V	Bottom light Speed +
FN + Backspace	Check the power level	FN + B	Toggle the Bottom light color
FN + PgUp	Turn on/off the RGB	FN + N	Toggle the Bottom light mode
FN + PgDn	Toggle the backlight color	Fn + K	HOME
FN + Insert	Toggle the backlight mode	Fn + L	END
FN +	Backlight Brightness +	Fn+L_Win	Lock WIN key (For WIN Only)
FN +	Backlight Brightness -	Fn+Del	Switching the direction of the main backlight effect (part of the light effect is effective)
FN +	Backlight Speed -
FN +	Backlight Speed +

PAIRING BLUETOOTH

After turning on the keyboard, please switch to Bluetooth mode by pressing the designated button. Use the FN+Q/W/E keys to enter the desired Bluetooth channel (1, 2, or 3). To initiate device pairing, press and hold the FN+Q/W/E keys for 3 seconds. When the keyboard starts searching for a connectable device, the indicator light will flash red, blue, or yellow. Once the keyboard is successfully connected to a device, the indicator light will remain on for 2 seconds. If the keyboard fails to connect to a device, the indicator light will turn off.

PAIRING WIRELESS 2.4GHz

After turning on the keyboard, switch to 2.4G mode using the power switch, and then long press the FN+R keys to enter pairing mode. After inserting the receiver, the indicator light will flash rapidly to indicate that the keyboard is searching for a compatible device to pair with. Once the pairing is successful, the mode light will remain on for 2 seconds. If the keyboard cannot find a pairing device within 30 seconds, the pairing mode will exit, and the mode light will turn off. At this point, the keyboard will enter sleep mode.

CHECK THE BATTERY LEVEL

Pressing the FN+Backspace key combination will turn off the backlight on the keyboard in order to check the battery level. To display the remaining battery percentage, press the number keys 1 through 0. For example, if the 1 key is lit, it indicates that the battery has 10% remaining. If both the 1 and 2 keys are lit, it indicates that the battery has 20% remaining, and so on. The number keys will light up with different colors to indicate the battery level: red for 30% or less, yellow for 50% or less, and green for over 50%.

REPLACING SWITCHES

1. Keycap Puller

2. Switch Puller

3. Switch Pins


Before installing switches, be sure the pins are clean and straight. Push the Switch Straight Down into the switch slot.
Please be gentle. Be sure the pins are aligned with the slots.

REMOVE SWITCHES

1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

INSTALL SWITCHES

1. Check that all the switch metallic pins are perfectly straight and clean.
2. Align the switch vertically. The pins should align themselves to the keyboard PCB.
3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

DO YOU NEED ANY MORE HELP?

For technical assistance, please email to support@kiiboom.com with your purchase order number and a detailed description of your issue.
