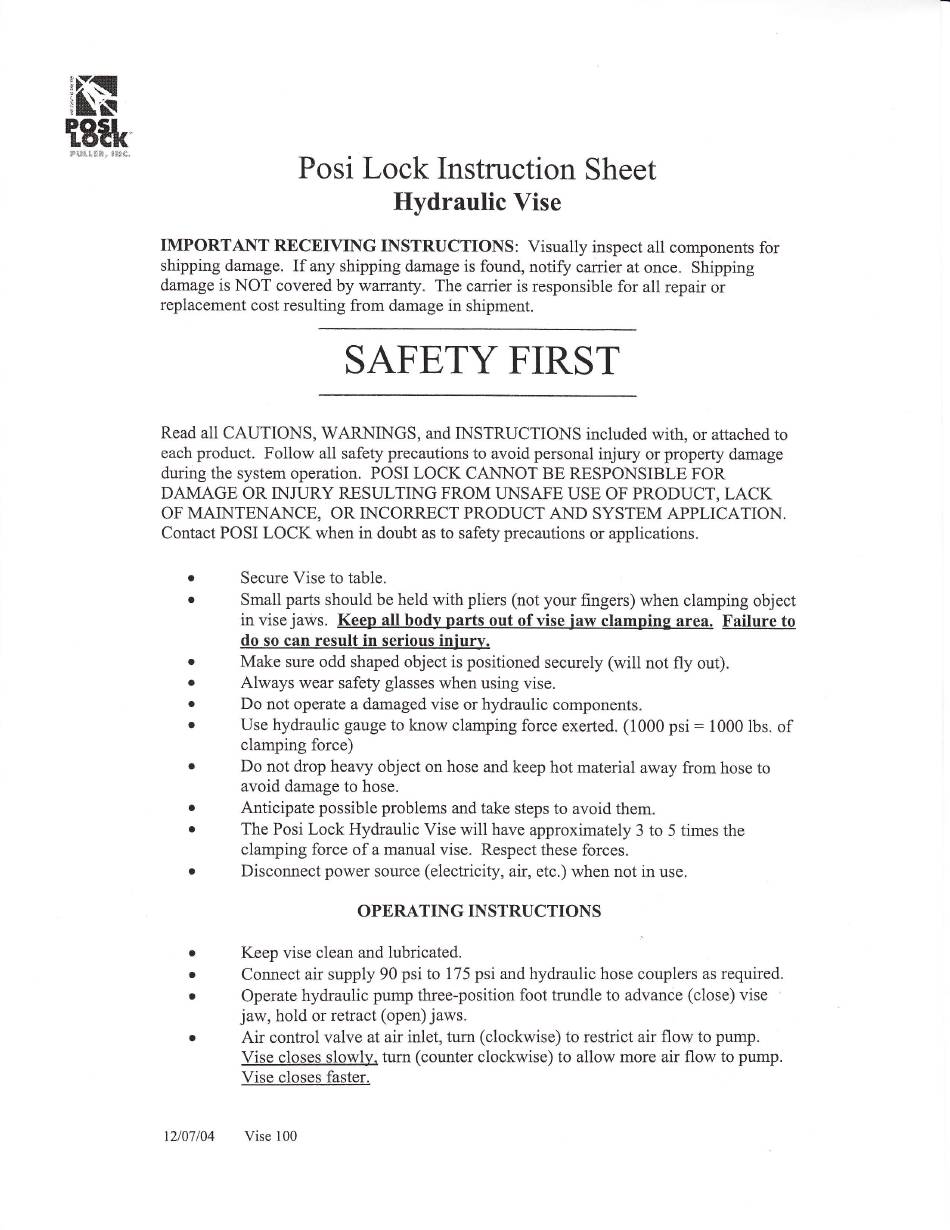

POSI LOCK PHV859A Instruction Sheet

itQ
tst{{
Posi
Lock Instruction
Sheet
Hydraulic
Vise
IMPORTANT RECEIVING INSTRUCTIONS: Visually
inspect
all
components
for
shipping damage.
If
any shipping
damage is found, notifu carrier
at
once" Shipping
damage is
NOT
covered
by warranty. The carrier
is responsible
for all
repair or
replacement cost
resulting from
damage
in
shipment.
SAFETY FIRST
Read
all CAUTIONS, WARNINGS,
and
INSTRUCTIONS included with, or
attached to
each
product. Follow all
safety precautions to avoid personal
injury
or properly
damage
during the system
operation. POSI LOCK CANNOT BE RESPONSIBLE FOR
DAMAGE
OR
INJURY RESULTING FROM
I.INSAFE USE OF PRODUCT,
LACK
OF
MAINTENANCE,
OR INCORRECT PRODUCT
AND
SYSTEM APPLICATION.
Contact
POSI
LOCK
when
in doubt
as
to
safety
precautions or applications.
r
Secure
Vise to
table.
r
Small parts should
be
held with pliers (not your fingers) when clamping object
in
vise
jaws.
Keep all body parts out of vise
jaw clamping area. Failure
to
do
so can
result in
serious
injury.
r
Make
sure
odd
shaped
object
is
positioned securely
(willnot fly
out).
r
Always wear safety
glasses when
using
vise.
o
Do not
operate a damaged
vise
or
hydraulic
components.
r
Use
hydraulic gauge to know clamping force exerted. (1000
psi:
1000lbs.
of
clamping force)
r
Do not drop heavy object
on hose
and keep
hot material away from
hose
to
avoid
damage
to
hose.
o
Anticipate possible problems
and
take
steps
to avoid
them.
r
The Posi Lock Hydraulic Vise
will
have approximately
3
to
5
times the
clamping force of
a
manual
vise.
Respect these forces.
o
Discormect power
source
(electricity, air,
etc.)
when not in
use.
OPERATING INSTRUCTIONS
o
Keep vise clean and
lubricated.
.
Connect air supply
90
psi to
175
psi
and
hydraulic
hose couplers
as
required.
.
Operate
hydraulic pump three-position foot trundle to
advance
(close) vise
jaw, hold
or
retract (open)
jaws.
r
Air
control valve
at
air inlet, turn (clockwise) to restrict air flow
to
pump.
Vise
closes
slowly. tum (counter clockwise) to allow more air flow
to
pump.
Vise closes
faster.
12107104
Vise
100
