REF. LD233

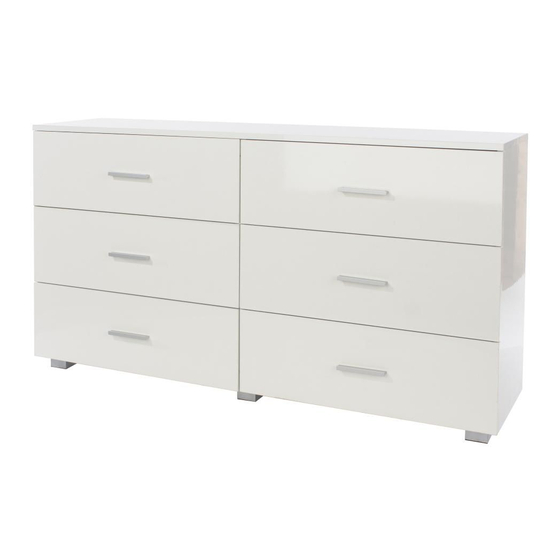

3+3 double wide chest
PLEASE USE THESE ASSEMBLEY INSTUCTIONS
Thank you for choosing this furniture.
BEFORE YOU START ASSEMBLY please store the carton at room temperature for 48 hours or more co the contents can
acclimatise.
PLEASE RETAIN ALL PACKING UNTIL YOU HAVE COMPLETED ASSEMBLY.
Information about your furniture.
This furniture has been manufactured from surface coated wood based manufactured boards.
Caring for your furniture.
Extreme temperature can cause slight movements in the board material so please avoid placing your furniture close to
radiators or other sources of heat.
Please avoid exposing your furniture to continued bright sunlight as this can affect the colour,
any fluid spills should be removed as quickly as possible
Always lift your furniture when moving as dragging may cause damage to your furniture or flooring.
Use mats or coasters to help protect against heat.
Do not stand on your furniture .
Aftercare.
Wipe all surfaces with a dry cloth and the occasional use of a normal household furniture Polish, do not use detergents or
chemicals on your furniture.
After assembly remove any visible component identification stickers, these should remove easily however any remaining
adhesive residue can be removed with a label adhesive removal liquid available from most DIY or hardware stores.
For models with drawers we also recommend you use a household spray polish or curtain track spray on the drawer runner
tracks. Please do not use any wax based products, chemicals or detergents on this furniture.
Regularly check all fixings to ensure they are tight.
BEFORE YOU START ASSEMBLY
Please check that you have all the correct
parts and fittings as detailed on the
assembly instructions.
We recommend that you build your
furniture on top of a soft clean cover to
ensure the unit does not get marked or
damaged during assembly.
FOR DAMAGED/REPLACEMENT PARTS
visit
www.coreproducts.co.uk/parts
7262
BATCH NUMBER
PLEASE RETAIN THIS LEAFLET ALONG WITH YOUR DELIVERY
NOTE / RECEIPT FOR FUTURE REFERENCE.
Page 1
Height:685mm
Width:1200mm
Depth:300 mm
Please
90min
Core Products 08/2022
Advertisement
Table of Contents
Related Manuals for Core Products LD233
Summary of Contents for Core Products LD233
- Page 1 REF. LD233 3+3 double wide chest 90min PLEASE USE THESE ASSEMBLEY INSTUCTIONS Thank you for choosing this furniture. BEFORE YOU START ASSEMBLY please store the carton at room temperature for 48 hours or more co the contents can acclimatise. PLEASE RETAIN ALL PACKING UNTIL YOU HAVE COMPLETED ASSEMBLY.
- Page 2 FULLY INSPECT ALL PARTS BEFORE YOU START ASSEMBLY ASSEMBLY HARDWARE ， F * 6 A*4 6 8*4 6 C*18 D*72 E*28 多 耐 ／ 了 3.5*14 mm 8*40 mm 40mm 15mm ， J * 6 K *2 1*30 G*12 ； 丿...
- Page 3 IMPORTANT NOTICE Page 3...
- Page 4 Front edge Front edge Front edge Turn minifix cams to the right to tighten. Page 4...
- Page 5 Insert all screws through holes in base Front edge into pre-drilled holes in sides and tighten. Front edge Page 5...
- Page 6 TURN UNIT OVER TO FIX BACK Page 6...
- Page 7 Angle the drawer slightly to ensure that the wheel at the back of the drawer slide goes behind the front wheel on the cabinet slide. Then lift the drawer up and slide it into the channel of the drawer slide. Page 7...
- Page 8 Use small screw to fix to back of unit Wall Wall Use large screw to fix to wall After you finish assembling the cabinet, take off the adhesive numbers on the parts' edge.And peel off the film on the surface of some parts. WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING.
