CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Page 3
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America 6600 Orangetho- rpe Ave. Buena Park, CA90622, U.S.A.
• Do not use force on switches, knobs, or cables. When you move the YST-M45D, first turn off the power to the speakers, then disconnect the AC adaptor from the AC outlet and the cables from the connected devices.

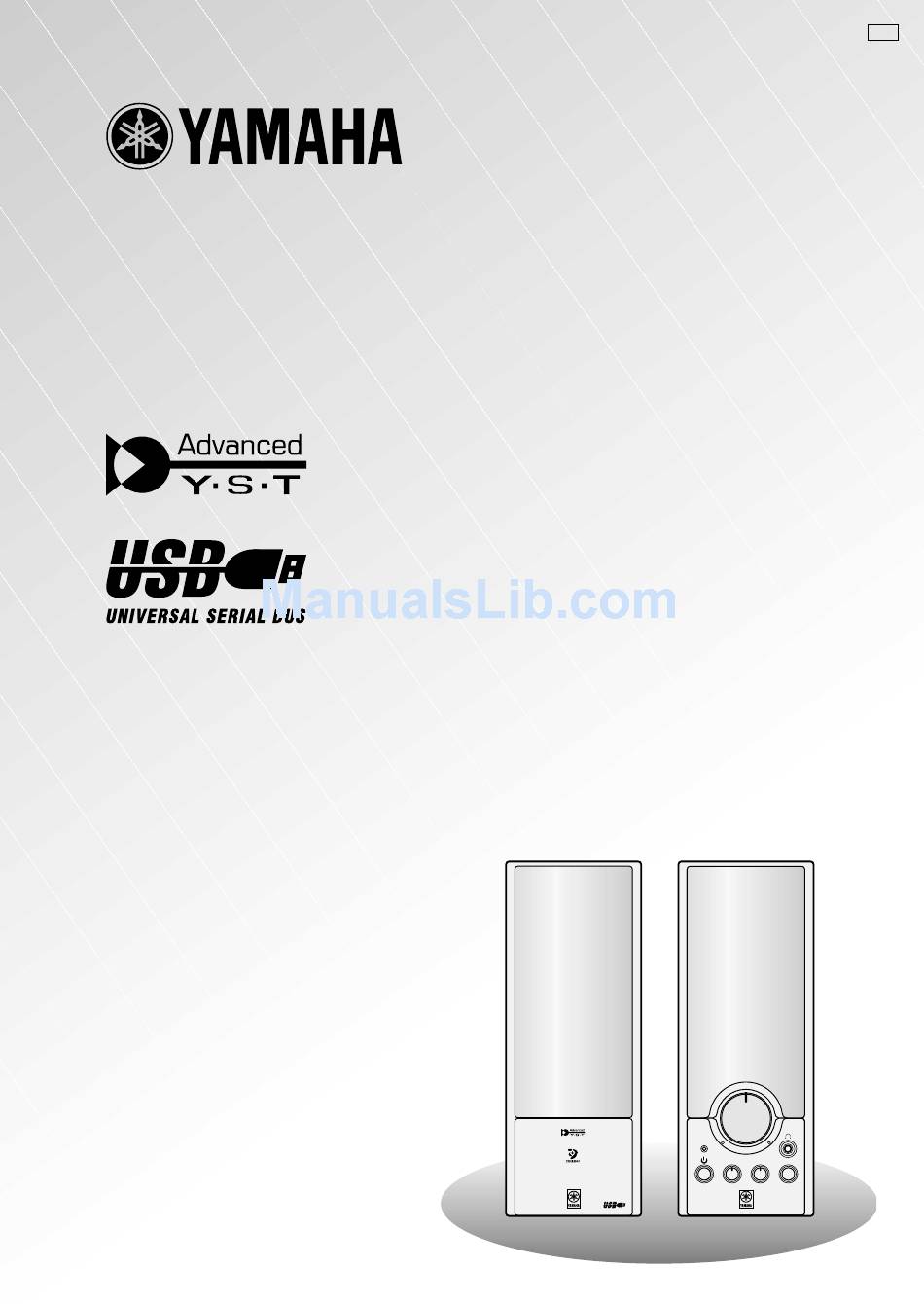

Thank you for purchasing the Yamaha YST-M45D Powered Multimedia Speakers. The YST-M45D Multimedia Speakers utilize Advanced Yamaha Active Servo Technology, which offers exception- ally high performance, allowing these compact speakers to produce a rich bass sound. They also employ USB tech- nology to create a computer-based listening environment that is far superior to conventional multimedia speakers.
Press this button to turn on the power to the speaker system. Its indicator lights up. Press the button again to set the speaker system to standby mode. Before pressing this button, make sure that the VOLUME control setting is lowered. A small electrical current flows through the speaker system...
About YMERSION (3D Enhancement) YMERSION is Yamaha’s proprietary technology that enhances the spread of a normal stereo source play- back sound, creating three-dimensional acoustics using only two speakers. The 3D SURROUND switch on the right speaker enables you to turn the YMERSION effect on and off.
Installing the software Microsoft Windows 98/98SE or Windows Me Installing and checking the USB driver 1. Turn on your computer and, if it’s not running already, start Windows 98/98SE or Windows 2. Connect the power cord (or AC adaptor) to a suitable AC outlet.
Page 9
Use the volume control to adjust the volume. 2. Adjust the volume on the computer as follows. a) Double-click the speaker icon on the task tray, or select “Start”, “Programs”, “Accessories”, “Entertainment” in this order and click “Vol- ume Control”.
Microsoft Windows 2000 Professional Installing and checking the USB driver 1. Turn on your computer and, if it’s not running already, start Windows 2000 Professional, and log in with Administrator. 2. Connect the power cord (or AC adaptor) to a suitable AC outlet.
Page 11
Use the volume control to adjust the volume. 2. Adjust the volume on the computer as follows. a) Double-click the speaker icon on the task tray, or select “Start”, “Programs”, “Accessories”, “Entertainment” in this order and click “Vol- ume Control”.
Some games software does not support USB. In this case, instead of using the USB connection, connect Input 1 or 2 on the rear of right speaker to the audio output jack on your computer using a 3.5 mm stereo mini plug cable, and specify your card type.
Turn off the power to the speakers, remove the USB cable, then turn on the power to the speaker again. If the USB Driver is still not recognized, re-install it. Insert the AC adaptor firmly into the AC outlet.
RCA pin plug cable 1 USB cable 1 8 pcs of non skid pads 1 set * Specifications subject to change without notice. Please contact an authorized Yamaha dealer for more information on this product or connections to your computer.
